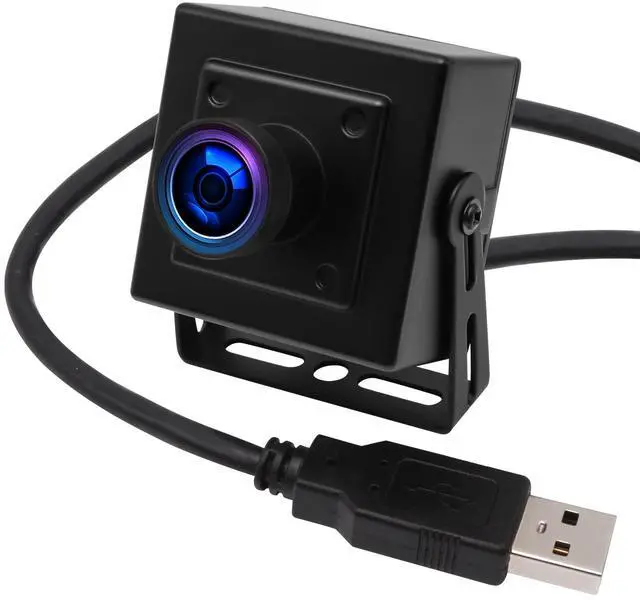

ELP 1080P USB Camera with Microphone for Computer & Raspberry Pi - Mini UVC USB2.0 Low Light Webcam with Audio Video, H.264 Sony IMX323 Sensor, 0.01lux
- Sony IMX322/323 low illumincation image sensor
- New feature: H.264 compression format + low illumination
- 1080P HD high resolution good for dark image vision It comes with sharp clear image in dark place.
- 1280X720@ 30fps/1920X1080@ 30fps
- Mini size for robotic project
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: ELP-USBFHD06H serial
Sensor: IMX322/IMX323
Lens Size: 1/ 2.9 inch
Pixel Size: 12.8X 11.6 mm
Image area: 2000 (H) X1121 (V) approx. 2.24 M pixels
Max. Resolution 1080P
Compression format
H264 /MJPEG / YUV2YUYV Resolution & frame
H264320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio: 42dB
Dynamic Range: 86dB
Sensitivity: 5.0V /lux-sec@550nm
Mini illumination: 0. 01 lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB 2.0 High Speed
Free Drive Protocol: USB Video ClassUVC
Support OTG Protocol: USB 2.0 OTG
AEC: Support
AEB: Support
AGC: Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard FOV (D) 100 Degree, optional 2.1 / 2.8 / 3.7 /6mm/FOV (D) 170 /180 Degree
Digital audio High quality digital MIC, support single, dual channel
LED board power connector: Support 2P- 2.0 mm socket
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply: DC5V
Operating Voltage: 140mA~190mA
Working current -1070
Working temperature: -2085
Board size /Weight: 38X38mmCompatible 32X32mm/ about 30g
Cable Standard: 1M / optional 2M, 3M, 5M
Operating system request: Win7, Win8, Linux 2.6 or above, Android 4.0 or above
Sensor: IMX322/IMX323
Lens Size: 1/ 2.9 inch
Pixel Size: 12.8X 11.6 mm
Image area: 2000 (H) X1121 (V) approx. 2.24 M pixels
Max. Resolution 1080P
Compression format
H264 /MJPEG / YUV2YUYV Resolution & frame
H264320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio: 42dB
Dynamic Range: 86dB
Sensitivity: 5.0V /lux-sec@550nm
Mini illumination: 0. 01 lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB 2.0 High Speed
Free Drive Protocol: USB Video ClassUVC
Support OTG Protocol: USB 2.0 OTG
AEC: Support
AEB: Support
AGC: Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard FOV (D) 100 Degree, optional 2.1 / 2.8 / 3.7 /6mm/FOV (D) 170 /180 Degree
Digital audio High quality digital MIC, support single, dual channel
LED board power connector: Support 2P- 2.0 mm socket
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply: DC5V
Operating Voltage: 140mA~190mA
Working current -1070
Working temperature: -2085
Board size /Weight: 38X38mmCompatible 32X32mm/ about 30g
Cable Standard: 1M / optional 2M, 3M, 5M
Operating system request: Win7, Win8, Linux 2.6 or above, Android 4.0 or above
