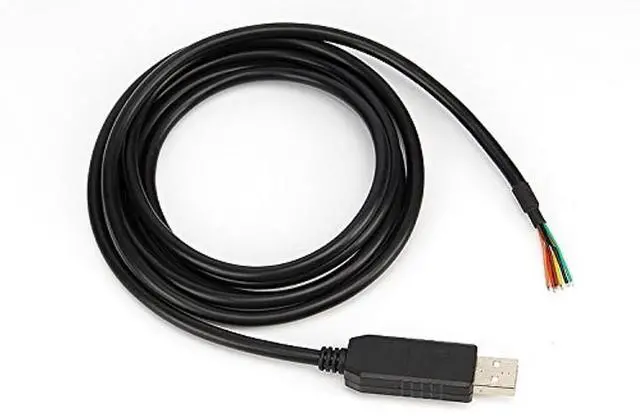

Green-utech 6ft FT232RL USB to 5v TTL Uart Serial Cable TTL -232r-5v We Cable Connector Wire End

1.8 m FT232RL USB to Serial adapter moduleUSB TO TTL 5V CableFT232RL based USB to TTL Serial Cable are designed using the standard FT232RL chipset. The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB. Our circuits include regulatoin and short circuit protection unlike many other imported cables. The cables are available with a 6-way free end, and are available at TTL levels of +5v in BLACK with Rx and TxNOTE that the Vcc pin voltage is +5V for the 5V TTL cableConnects directly to microcontroller UART or I/O pinsPC communicates as a standard serial deviceAll circuitry integrated into sleek, moulded USB plugCompatible with legacy software.

Based on

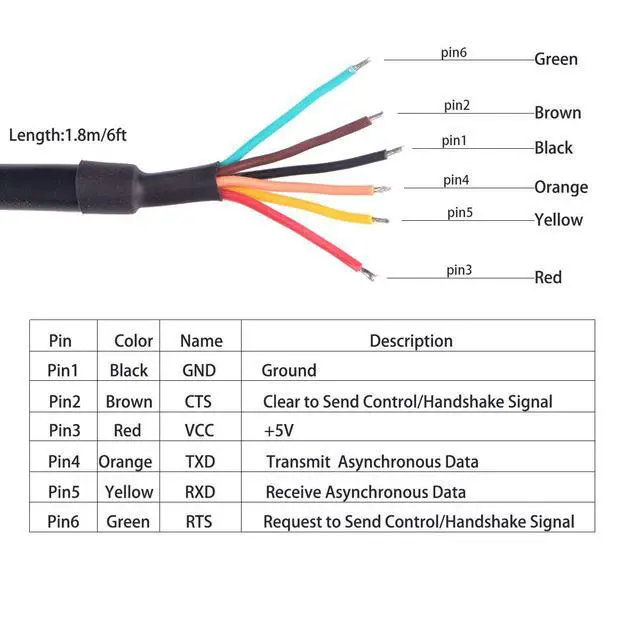

FT232R6-way connector: Red-VCC (5V), Orange -TX, Yellow-RX, Black-GND, Brown-CTS, Green-RTSSupports data rates up to 3 Mbaud allowing a significant performance increase over a standard serial port. Allows devices to be powered from the USB port.. Drivers Supplied by FT232RLCable Length 1.80 m (6 ft) Operating system supportWindows 8.1W indows 8.1 x64Windows 8Windows 8 x64Windows Server2012Windows Server 2008 R2Windows 7Windows 7 x64Windows Server 2008Windows Server 2008 x64Windows VistaWindows Vista x64Windows Server 2003Windows Server 2003 x64Windows XPWindows XP x64Windows MEWindows 98LinuxMac OS XMac OS 9Mac OS 8Windows CE. NET (Version 4.2 and greater)AndroidWindows RTPackage included1* FT232RL USB 5v ttl uart serial to wire end cable
