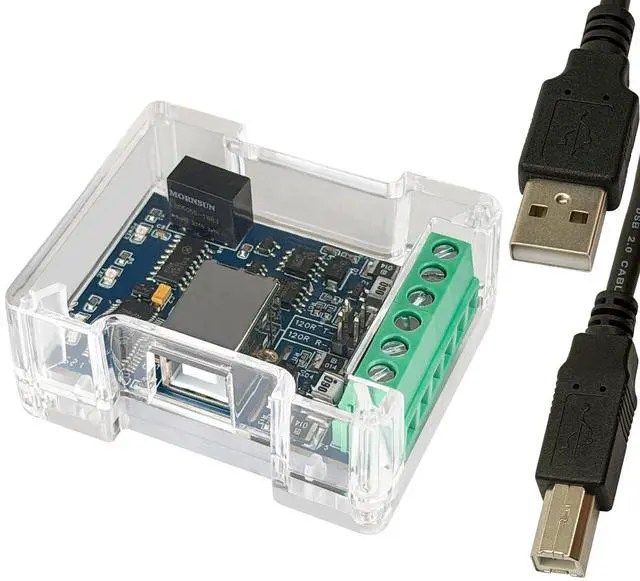

DSD TECH SH-U11F Isolated USB to RS485 RS422 Converter Built-in FTDI chip for Industrial Application
- Industrial-grade :The built-in isolated power supply and ADI signal isolation chip can effectively protect computer damage caused by accidental short circuit, electric shock and other damage.
- USB to RS485/RS422:Support RS-422 (RxD+, RxD-, TxD+, TxD-, GND) and RS-485(A+, B-, GND) Interface.
- High stability: Built-in original FTDI FT232RL chip,Maximum speed up to 3Mbps
- Compatibility: Works with Windows 10, 7(32/64bit) , XP, 2003,Liunx,Mac OS Etc.
- Customer Support: DSD TECH provides permanent technical support and 1 year product replacement service for this usb to rs485 rs422 converter.All questions will be answered within 1 working day.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SH-U11F is an upgraded version of SH-U11. Compared with SH-U11, SH-U11F adds isolation protection function, which effectively isolates power and communication signals. This design can ensure that the USB interface of your computer or notebook will not be damaged due to short circuit or operating errors, and is especially suitable for various industrial occasions. Through this USB RS485/RS422 adapter, you can quickly access the RS485/RS422 network through a computer. Great for point to multi-point communication with up 32 devices connected per converter!
Specification: Model
NO:
SH-U11FStandard: RS485/RS422Main
chip: FTDI
FT232RLInterface: USB Type B, 6

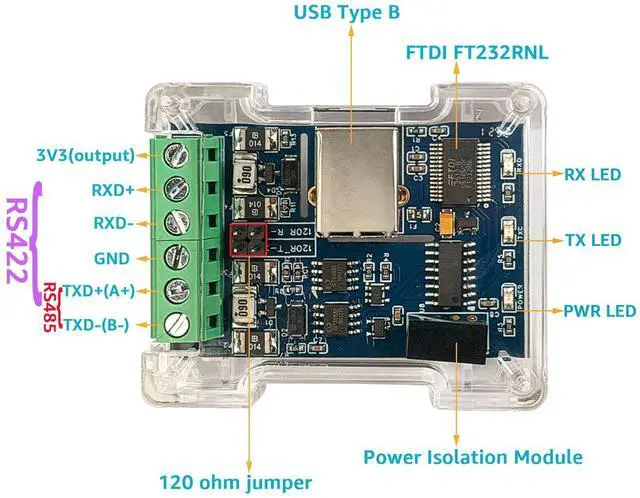

PIN Terminal BlockCable Length: 1.0M / 3.2FTRS 485
PIN: TXD+(A+), TXD-(B-)RS422
PIN: RxD+, RxD-, TxD+, TxD-, GNDUSB 2.0; compatible
USB 1.1B aud rate: 300bps to 3MbpsAPPLICATIONLED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine. List of supported systems1, Windows XP, 7, 8, 102, Ubuntu 11.10, kernel 3.0. 0-193, Mac OS X 10.3 to 10.8 (32 &64 bit)4, Mac OS X 10.9 and above (64 bit)
Packing list: 1 X SH-U11F USB to RS485/RS422 Adapter1 X User manual1 X USB Type B Cable(1M/ 3.2FT )WARRANTY: DSD TECH offers a 12-month warranty on this isolated USB to RS485 RS422 Converter. If you have any questions, please contact us and we will resolve your issue within 24 hours. Important NotesThis product uses FTDI FT232RL chip by default, because of the chip out of stock, some production batches use FTDI FT232RNL model chip. Please do not worry, FT232RNL is also the chip produced by FTDI, can completely replace FT232RL. If you still care about these please contact us.
Specification: Model
NO:
SH-U11FStandard: RS485/RS422Main
chip: FTDI
FT232RLInterface: USB Type B, 6
PIN Terminal BlockCable Length: 1.0M / 3.2FTRS 485
PIN: TXD+(A+), TXD-(B-)RS422
PIN: RxD+, RxD-, TxD+, TxD-, GNDUSB 2.0; compatible
USB 1.1B aud rate: 300bps to 3MbpsAPPLICATIONLED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine. List of supported systems1, Windows XP, 7, 8, 102, Ubuntu 11.10, kernel 3.0. 0-193, Mac OS X 10.3 to 10.8 (32 &64 bit)4, Mac OS X 10.9 and above (64 bit)
Packing list: 1 X SH-U11F USB to RS485/RS422 Adapter1 X User manual1 X USB Type B Cable(1M/ 3.2FT )WARRANTY: DSD TECH offers a 12-month warranty on this isolated USB to RS485 RS422 Converter. If you have any questions, please contact us and we will resolve your issue within 24 hours. Important NotesThis product uses FTDI FT232RL chip by default, because of the chip out of stock, some production batches use FTDI FT232RNL model chip. Please do not worry, FT232RNL is also the chip produced by FTDI, can completely replace FT232RL. If you still care about these please contact us.
