Yjntoximc Mini Industrial 3 Ports Gigabit PoE Switch with DC1248V Redundant Power Input, 12V PoE Switch with SFP, IEEE802.3af/at @90W, Compact PoE Power for VoIP Systems/Solar Power/RV Truck
- Support DC1248V input and IEEE802.3af/at PoE output with built-in voltage booster. All PoE ports are compliant to IEEE802.3af/at. Total PoE budget 90W (DC48V/24V input) or 60W (DC12V input).
- Providing 3x 10/100/1000Base-T Ethernet PoE ports and 1x 1000Base-X SFP slot (SFP module not included).
- Compact IP40 rugged metal enclosure; Wide working temperature -40C to 80C (-40F to 176F); Support DIN-Rail installation.
- Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.

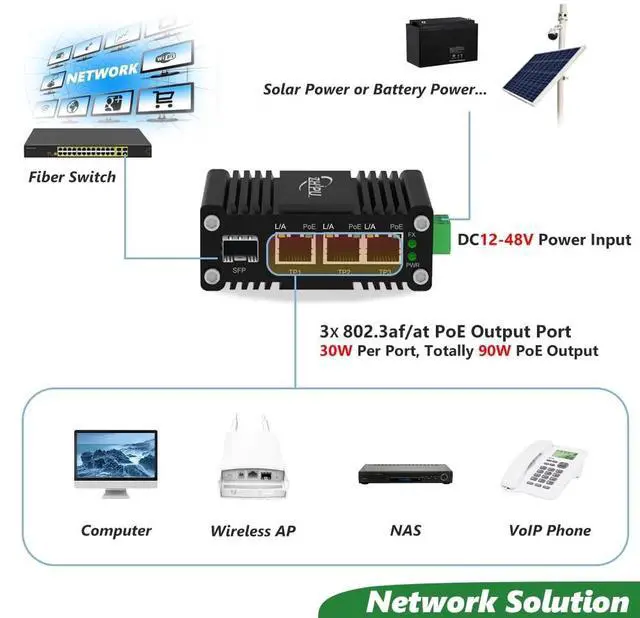

- Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
- Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networkin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: The Mini Industrial 3-Port 10/100/1000T 802.3 at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range(-40F to 176F), it could match a variety of harsh environment.
Features: 1. 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3 at PoE+ Injector (Port-1 to Port-3)2. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. 12~48VDC wide range power input with power booster function4. Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC) 5. Supports Full/Half-duplex, Auto-negotiation6. IEEE 802.3 az Energy Efficient Ethernet (EEE) 7. Industry standard design, dust-proof and close design IP40 Aluminum Case8. Supports DIN-Rail installation9. Environmentally hardened -40C to 75C (-40F to 167F) operating temperatureSpecification: 1)
Connector: 3 x RJ45 with 802.3 at PoE+ injector function (Ports 1 to 3) 2)
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
PoE Standard: IEEE 802.3 af/at4)
Packet Buffer: 4
Mbit5) Packet Length: 9K bytes6)
MAC Address Table: 2K7)
Switch Fabric: 12Gbps/non-blocking8)
Processing Type: Store-and-Forward9)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 10)
Input Power: 12~48VDC, 4-pin terminal block11)
Power Consumption: <95W (Non-PoE<6W)12)
Power PIN Assignment: 4, 5(+); 7, 8(-)13)
Certification: CE, FCC, RoHS14)
Mounting Options: DIN-Rail15)
Casing: Aluminum Case16)
Operating Temperature: -40C to 75C (-40F to 176F)17)
Storage Temperature: -40C to 85C (-40F to 185F)18)
Dimensions (WxDxH): 3.74 x 2.76 x 1.18 inch19)
Weight: 0.3
kgPackages: 1* 3-port PoE Ethernet switch1* 4-pin terminal block1* User Manual
Features: 1. 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3 at PoE+ Injector (Port-1 to Port-3)2. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. 12~48VDC wide range power input with power booster function4. Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC) 5. Supports Full/Half-duplex, Auto-negotiation6. IEEE 802.3 az Energy Efficient Ethernet (EEE) 7. Industry standard design, dust-proof and close design IP40 Aluminum Case8. Supports DIN-Rail installation9. Environmentally hardened -40C to 75C (-40F to 167F) operating temperatureSpecification: 1)
Connector: 3 x RJ45 with 802.3 at PoE+ injector function (Ports 1 to 3) 2)
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
PoE Standard: IEEE 802.3 af/at4)
Packet Buffer: 4
Mbit5) Packet Length: 9K bytes6)
MAC Address Table: 2K7)
Switch Fabric: 12Gbps/non-blocking8)
Processing Type: Store-and-Forward9)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 10)
Input Power: 12~48VDC, 4-pin terminal block11)
Power Consumption: <95W (Non-PoE<6W)12)
Power PIN Assignment: 4, 5(+); 7, 8(-)13)
Certification: CE, FCC, RoHS14)
Mounting Options: DIN-Rail15)
Casing: Aluminum Case16)
Operating Temperature: -40C to 75C (-40F to 176F)17)
Storage Temperature: -40C to 85C (-40F to 185F)18)
Dimensions (WxDxH): 3.74 x 2.76 x 1.18 inch19)
Weight: 0.3
kgPackages: 1* 3-port PoE Ethernet switch1* 4-pin terminal block1* User Manual
