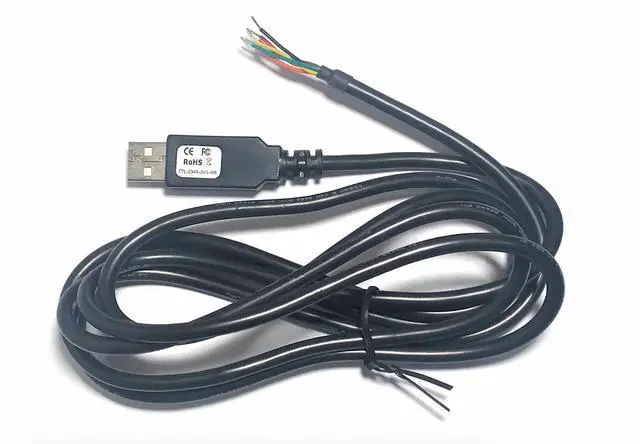

FTDI TTL-234X-3V3-WE USB FTDI Cables/IEEE 1394 Cables USB to UART Cable Wire Ended 3.3V, USB-A to 6 Wire Leads
- The TTL-234X-3V3-WE is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDIs USB to TTL serial adapter cables has its I/O pins configured to operate at 3.3V levels. The TTL-234X-3V3-WE uses a FT234X IC which is housed inside the USB A connector, and is terminated at the end of a 1.8 meter cable with 6 wire leads The TTL-234X-3V3 is fully RoHS compliant and is supplied loose packed in an anti-static bag. It is FCC, CE
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Data Rates: 3MBaud
USB Speed: Full
Speed (12Mbps) Interfaces: UART
USB Connector: Type
A End Connector: Wire ended
Cable Length: 1.8 m
Cable
AWG Packages: N/A
Channels: 1
I/O Voltage: 3.3V
USB Class: FTDI
Drivers Virtual Com Port: Yes
Max Power Output: +5V / 450mA
FTDI Internal IC: FT234X
Operating Temperature: -40C to +85C
USB Speed: Full
Speed (12Mbps) Interfaces: UART
USB Connector: Type
A End Connector: Wire ended
Cable Length: 1.8 m
Cable
Details
: 6 core, 5mm UL2464 24AWG Packages: N/A
Channels: 1
I/O Voltage: 3.3V
USB Class: FTDI
Drivers Virtual Com Port: Yes
Max Power Output: +5V / 450mA
FTDI Internal IC: FT234X
Operating Temperature: -40C to +85C
