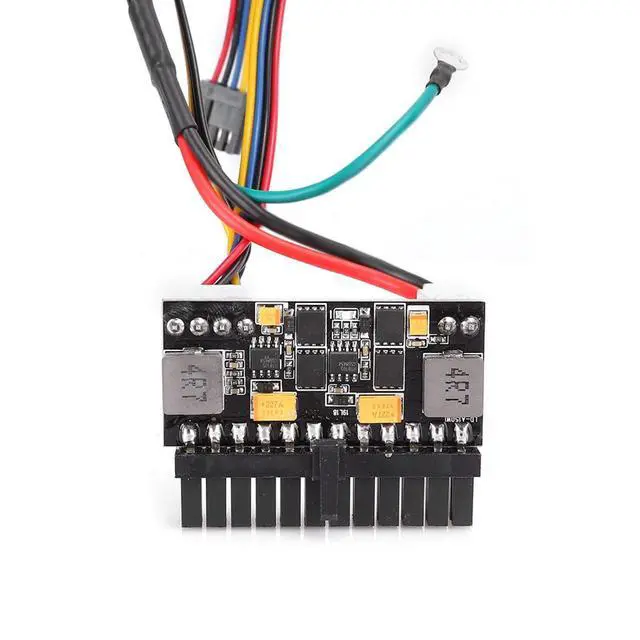

150W Power Supply Module, 24Pin ATX 12V DC Input 150W Output Power Supply Switch Module Board for Mini/ITX PC/POS
- Professional power supply module, suitable for mini-ITX and 1U case.
- 150W Output and 12V DC Input, and it must be accompanied with the power adapter.
- Industrial solid capacitor allows super performance and high temperature resistance, stable and
- Quietly work without noise, do not disturb you. Portable and compact design, save space, to use.

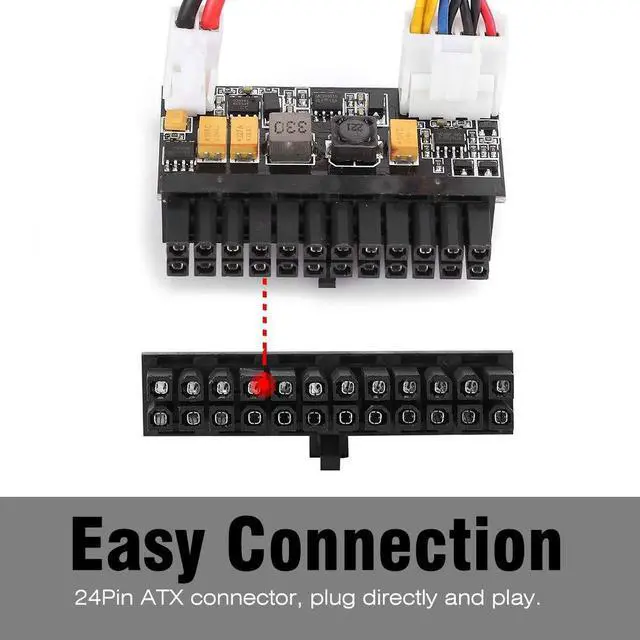

- 24Pin ATX connector for connection and suitability, plug directly and play.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Color: As the pictures shown.
Input voltage: 12V DC ( 11.4 - 12.6V )Input
Current:.
17AOutput Power: 150WPower
Efficiency: 85%DC
Input Connector: 2.5 mm x 5.5 mm (Inner x
Outer Diameter) Module Board Connector: 24Pin

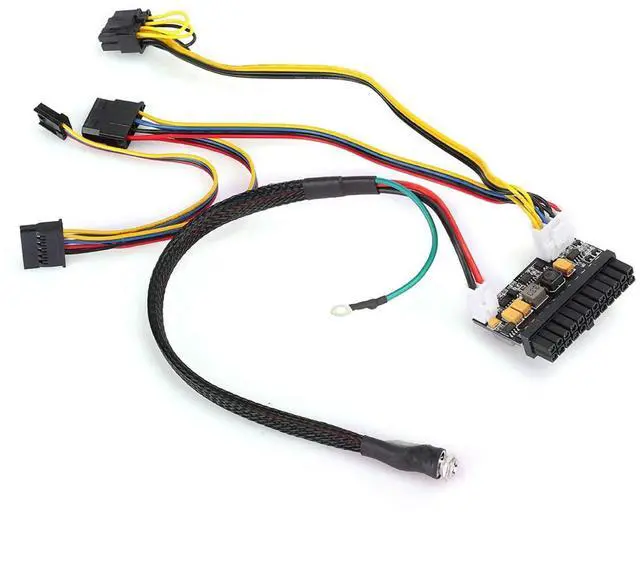

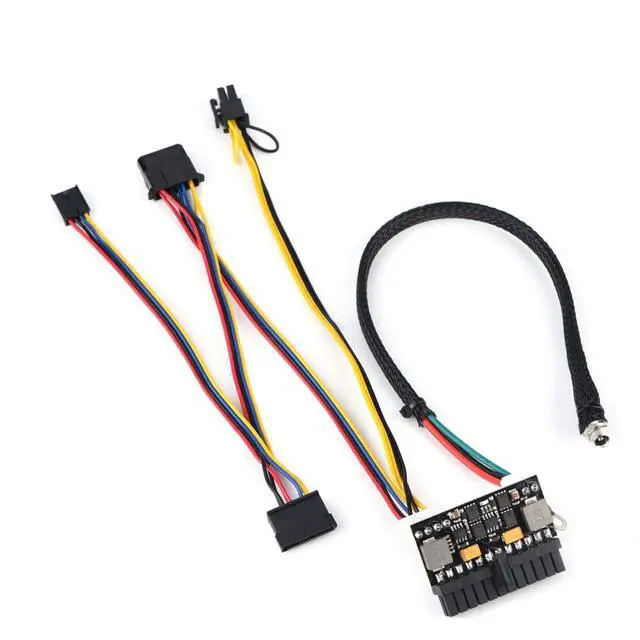

ATX ConnectorCable Connector: AUX 12V, 4Pin Mo-, SATA, 4Pin for
Floppy DriveApplications: MINI computers, POS, Digital Set-Top Boxes, ITX Case, Network Servers, Advertising, Bank Terminals, etc.
Working Temperature/ Humidity: 0 ~ 55/ 45% ~ 75%Storage
Temperature/ Humidity: -40 ~ 70/ 10% ~ 90%Atmospheric
Pressure: 86Kpa ~ 106KpaModule
Board Size: Approx. 55 x 40mm/ 2.2 x 1.6 inPackage
Size: Approx. 160 x 80 x 40mm/ 6.3 x 3.1 x 1.6 inPackage
Weight: 94gPackage
includes: 1 x 150W Power Supply Module
