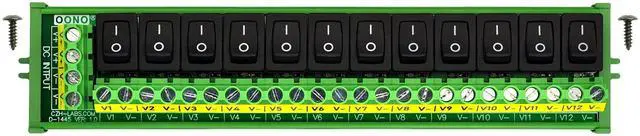

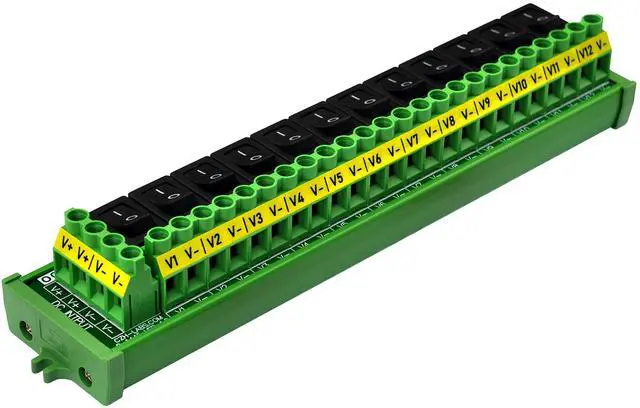

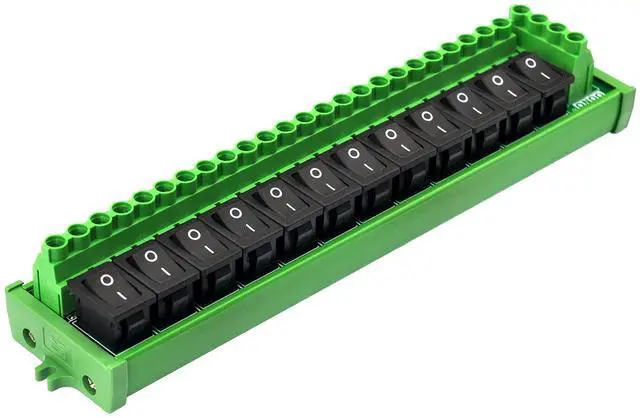

Screw Mount 12 Channel Rocker Switch DC Power Distribution Strip Module
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.

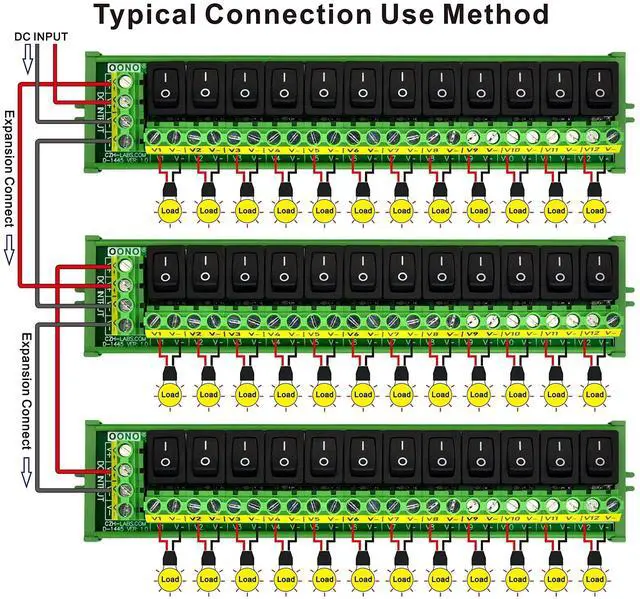

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

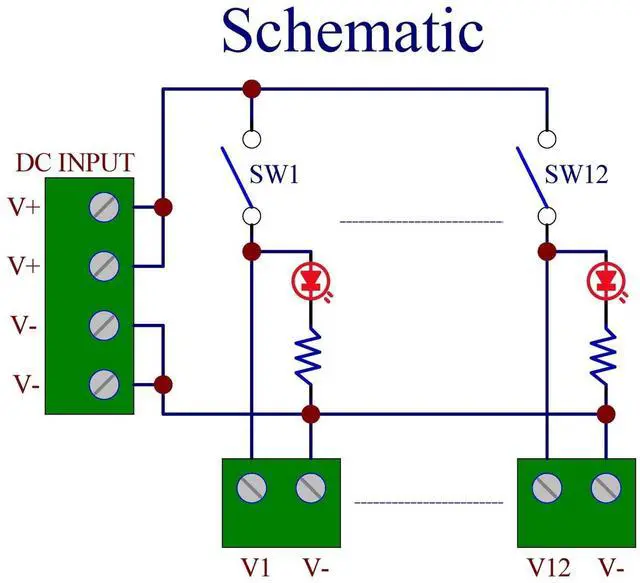

- Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
- FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1, Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps. 2, Input terminals pitch 7.62 mm/ 0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. 3, Output terminals pitch 7.62 mm/ 0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. 4, Rocker switch ON/OFF power output for each channel.
With switch power ON LED indication function. 5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier (not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
With switch power ON LED indication function. 5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier (not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
