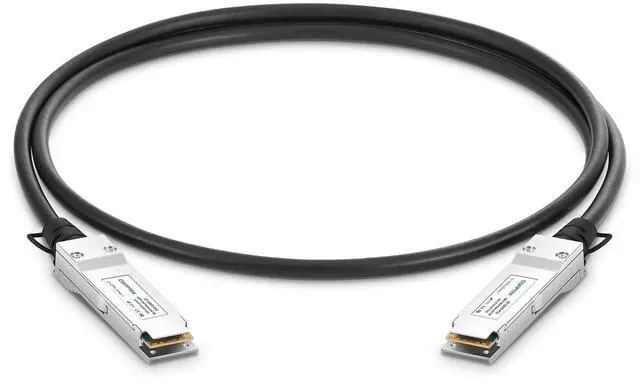

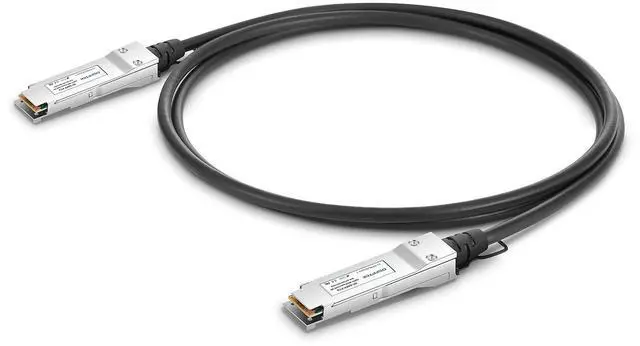

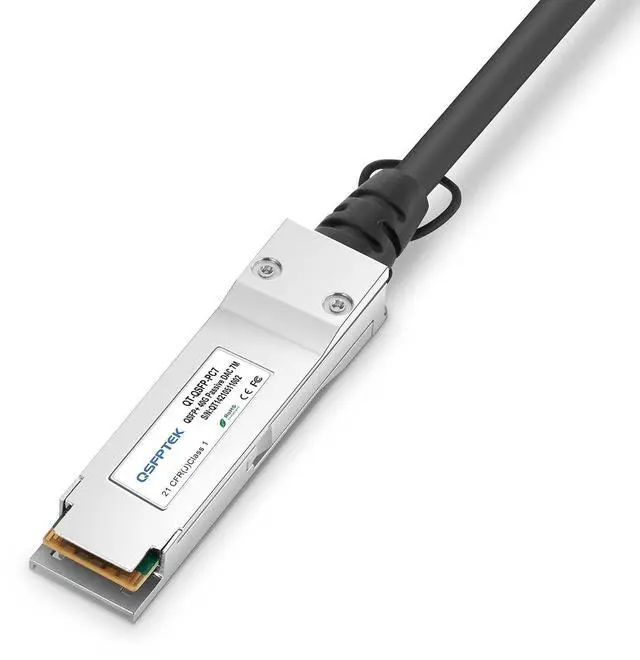

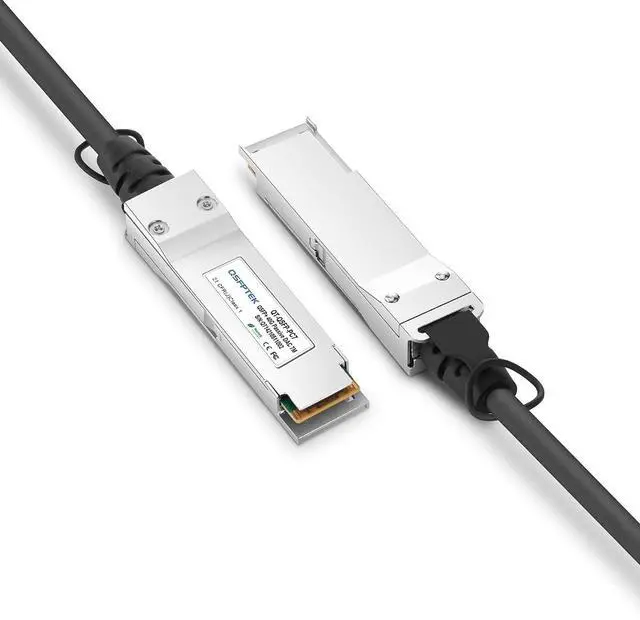

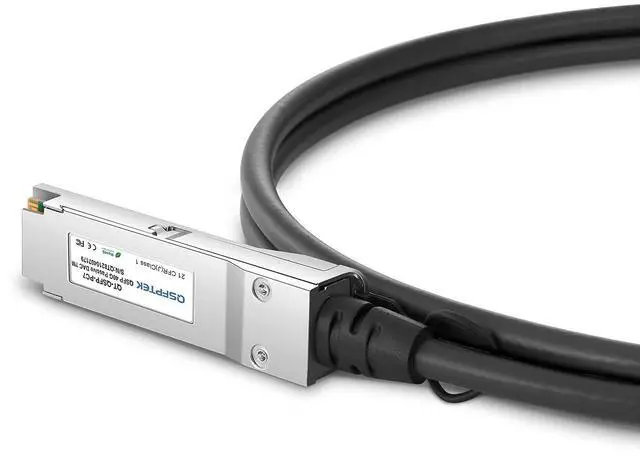

40G QSFP DAC, 7M (23ft) Passive Direct Attach Copper Twinax Cable Compatible with Cisco QSFP-H40G-CU7M
- DAC Feature: 40Gb QSFP to QSFP Direct Attach Copper Twinax Cable, Passive, 7-meter, AWG28. Widely compatible for Cisco QSFP-H40G-CU7CM.
- High Performance: 100G QSFP28 DAC is the most power-efficient connectivity solution for short distance interconnects, because it is passive and has the characteristics of high reliability, low insertion loss and the lowest latency.
- Rigorous Testing: Each cable had passed TDR & VNA tested. And individually tested on switches before delivery.
- Easy to Use: Plug and play, hot-pluggable, no software and drivers require. External adopt the standartd Gold plating plug to ensure can repeatedly plug.
- Customized Your Cable: QSFPTEK is a professional manufacturer of computer networking transeiver and direct attach copper cable, custom service is available.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Max Data Rate: 40Gbps
Connector Type: QSFP to
QSFP Minimum Bend Radius: 33mm
Wire AWG: 28AWG
Cable Length: 0.5 m ( 1.64 ft)
Jacket Material: PVC (OFNR)
Cable Type: Passive
Twinax MTBF: 50 Million Hours
Power Consumption: < 0.2W
Power Supply: 3.3V
Temperature: 0 to 70C (32 to 158F)
Protocols: 40G Ethernet
Connector Type: QSFP to
QSFP Minimum Bend Radius: 33mm
Wire AWG: 28AWG
Cable Length: 0.5 m ( 1.64 ft)
Jacket Material: PVC (OFNR)
Cable Type: Passive
Twinax MTBF: 50 Million Hours
Power Consumption: < 0.2W
Power Supply: 3.3V
Temperature: 0 to 70C (32 to 158F)
Protocols: 40G Ethernet
