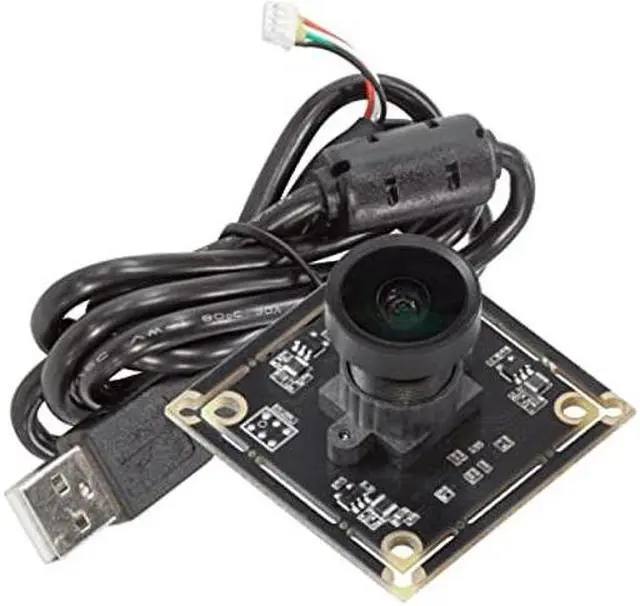

Arducam 5MP Wide Angle USB Camera for Computer, 1/4" CMOS OV5648 Mini UVC USB2.0 Video Webcam with Microphone, with 3.3ft/1m Cable
- Ultra HD Resolution: This camera adopts the 5MP OV5648 Color COMS sensor for sharp images and accurate color reproduction.
- Wide Angle: Assembled with a 95-degree horizontal view angle M12 lens with IR-cut filter, which provides a much wider Field of View compared to other lenses.
- Frame Rates: MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480

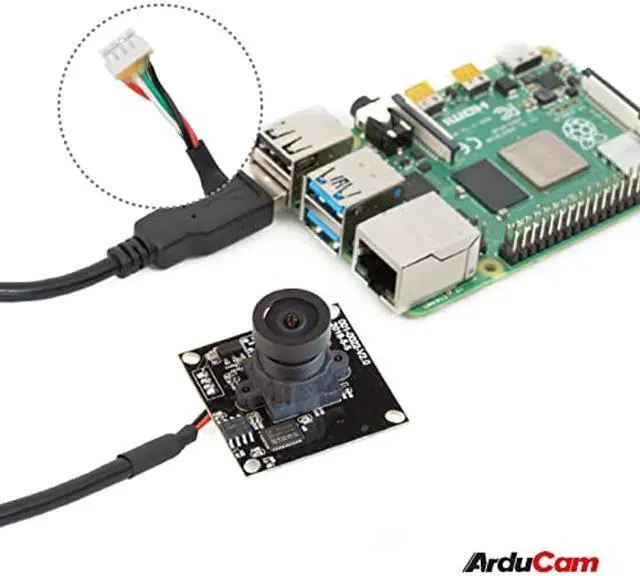

- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Arducam UB0233 is a 5MP, based on the 1/4" OV5648 image sensor, UVC compliant, wide angle USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Ultra HD resolution meets your request of higher quality video still pictures resolution.
APPLICATIONS
Home video surveillance system
Live streaming
Videoconference
Monitoring 3D printer
Dashcam
......
SPECS
Camera
- Sensor: 1/4" OV5648
- Resolution: 5MP 2592 x 1944
- Data Format: MJPG 15fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 5fps@720P/1080P; 10fps@1024 x 768; 15fps@800 x 600.
Lens
- Field of View (FOV): 90 degree (H)
- Lens Mount: M12
- IR Sensitivity: Integral 650nm IR filter, visible light only
- Focusing Range: 3.3 ft (1M) to infinity
Functionality and Compatibility
- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
- System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver
Power
- Power Supply: USB powered 5V
- Working Current: MAX 250mA
Physical
- Operating Temp.: -4degF~158degF (-20degC~+70degC).

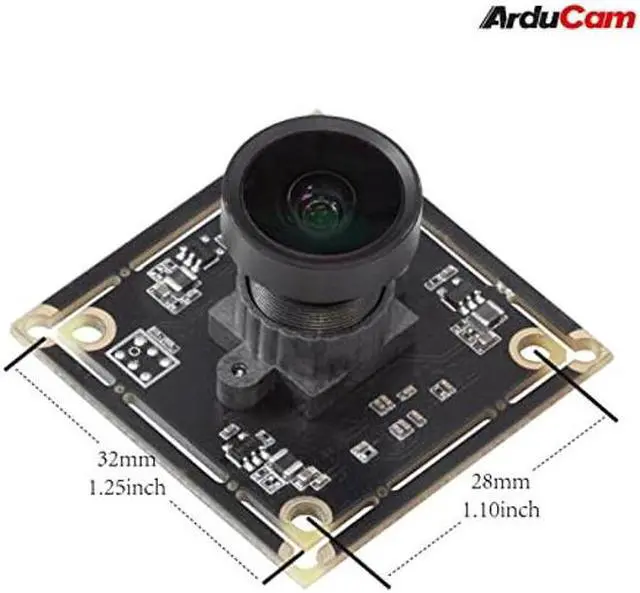

- Dimension: 32mmx32mm
- Hole Pitch: 28x28mm
- Cable Length: 3.3 ft (1M)
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Ultra HD resolution meets your request of higher quality video still pictures resolution.
APPLICATIONS
Home video surveillance system
Live streaming
Videoconference
Monitoring 3D printer
Dashcam
......
SPECS
Camera
- Sensor: 1/4" OV5648
- Resolution: 5MP 2592 x 1944
- Data Format: MJPG 15fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 5fps@720P/1080P; 10fps@1024 x 768; 15fps@800 x 600.
Lens
- Field of View (FOV): 90 degree (H)
- Lens Mount: M12
- IR Sensitivity: Integral 650nm IR filter, visible light only
- Focusing Range: 3.3 ft (1M) to infinity
Functionality and Compatibility
- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
- System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver
Power
- Power Supply: USB powered 5V
- Working Current: MAX 250mA
Physical
- Operating Temp.: -4degF~158degF (-20degC~+70degC).
- Dimension: 32mmx32mm
- Hole Pitch: 28x28mm
- Cable Length: 3.3 ft (1M)
