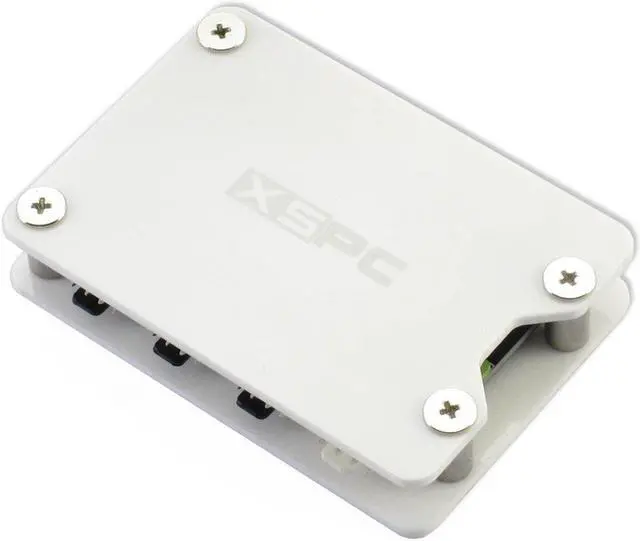

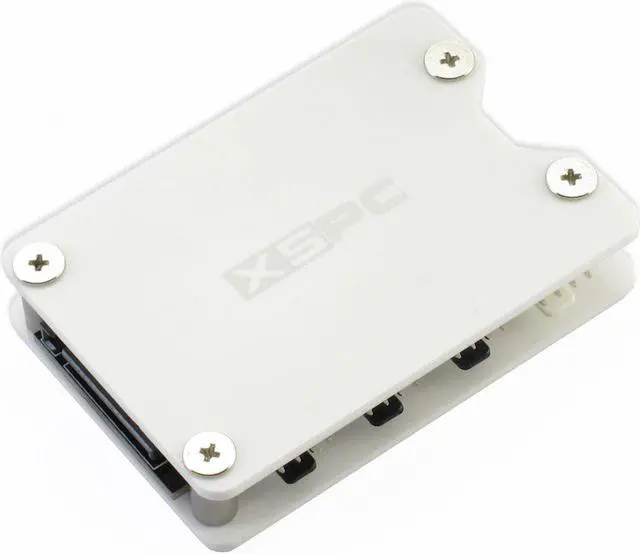

XSPC 8-Way PWM Splitter Hub V2, White
- PWM splitter hub connects up to 8 devices
- Input signal connector: 4 pin PWM
- Maximum power per channel: ~12W
- Maximum total power output: 95W
- Dimensions: 72 x 50 x 14.6mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The XSPC PWM hub can power 8 fans simultaneously, while only taking up one PWM fan header on your motherboard. With a total output of 95W (~12W per channel), the hub can be expanded with Y splitter cables for additional fans (channels 2-8 only), taking the total supported fans to 15.
At less than 15mm thick, the hub can be tucked away behind the motherboard tray, for neat cable management. The hub is supplied with an adhesive hook/loops pad, making it easy to mount it anywhere in your case.
The hub can also be used with 3pin fans without PWM speed control, or run PWM fans at full speed by disconnecting the motherboard PWM input cable.

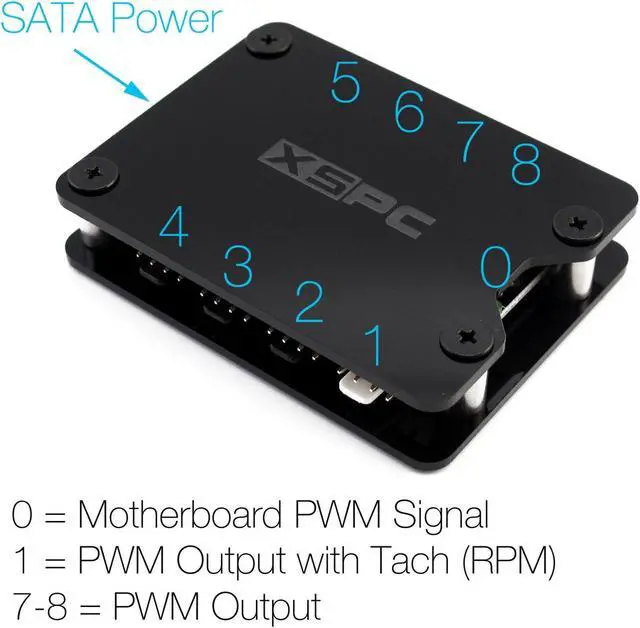

Input power: 12V SATA power
Input signal connector: 4 pin
PWM Output connector: 3/4 pin x 8
Maximum power per channel: ~12W
Maximum total power output: 95W
Dimensions: 72 x 50 x 14.6 mm
PWM cable length: 40cm

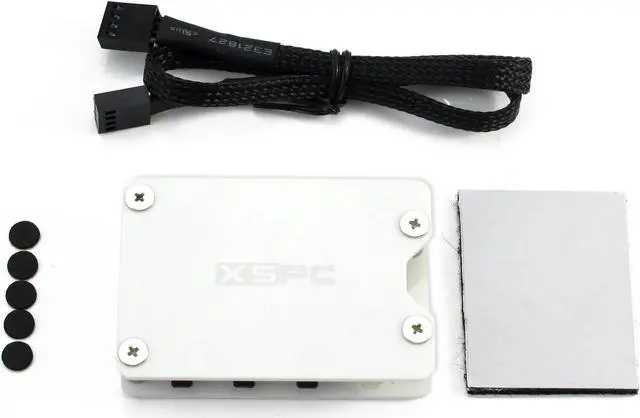

Supplied with sleeved PWM cable, hook/loop adhesive pad and adhesive foam feet.
Model: 5060596650060
At less than 15mm thick, the hub can be tucked away behind the motherboard tray, for neat cable management. The hub is supplied with an adhesive hook/loops pad, making it easy to mount it anywhere in your case.
The hub can also be used with 3pin fans without PWM speed control, or run PWM fans at full speed by disconnecting the motherboard PWM input cable.
Input power: 12V SATA power
Input signal connector: 4 pin
PWM Output connector: 3/4 pin x 8
Maximum power per channel: ~12W
Maximum total power output: 95W
Dimensions: 72 x 50 x 14.6 mm
PWM cable length: 40cm
Supplied with sleeved PWM cable, hook/loop adhesive pad and adhesive foam feet.
Model: 5060596650060
