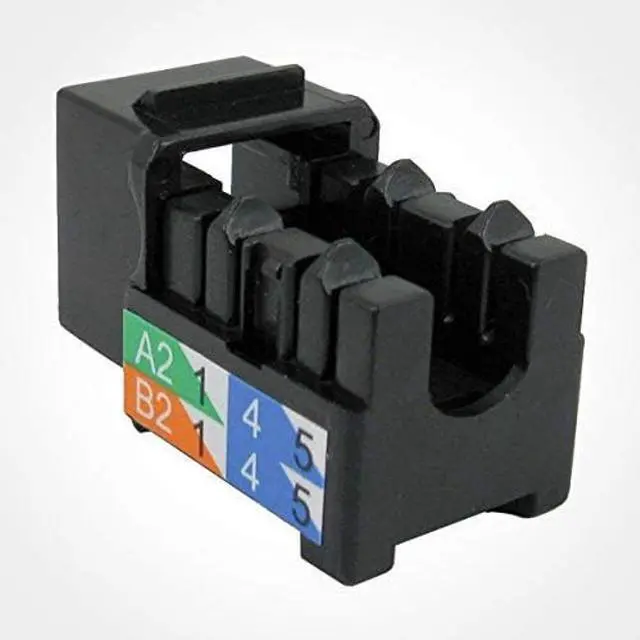

Vertical Cable Cat5E, Long-Life 50µ Gold Plated Brass with High Port Density, Keystone Jack 25 Pack Black

Vertical Cable Cat5E 90 Degree Keystone Jack 25 Pack
The Cat5e Jack is the most widely used keystone jack in todays market for networking wall plate solutions or patch panels. Each Cat5e Jack provided by FireFold provides outstanding performance, exceeding the TIA/EIA 568-B industry standard. This makes these keystone jacks perfect for use in todays high-speed networks while remaining completely backward compatible with all previous standards.
The Cat5e jack provided by us comes with a standard RJ45 plug on the outside. While on the inside, wiring slots are in place for a tool required termination. All of our networking keystone jacks have 568A and 568B color codes on the jacks in addition to the easy trouble free 110 style termination.

Specifications

: Housing
Material: UL 94V-0 Self Extinguished Plastic IDC 110
Contacts: Phosphor Bronze, Nickel
Plated Nose Contacts: 50µ Gold Plating over
Nickel Operating Life: Minimum 750
Insertions Compatibility: 22-26 AWG Solid Cable 8P8C
PCB: FR-4, 1.6 mm
Double Sided Cap: UL 94V-0
Rated Current Rating: 1.5A mp
Max Dielectric Strength: 1000V RMS for 1
Min Insulation Resistance: 500m
Contact Resistance: 20m
DC Resistance: 0.1
Ohm Temperature Range: -10°C to 60°C
Max Humidity: 10%~90%
Non-Condensing Certifications: ANSI/TIA/EIA-568-C. 2 Compliant, 3P, UL Listed, ETL
Listed Dimensions (mm): 19.86H x 17W x 31D
