ANMBEST 10PCS Shielded RJ45 Waterproof Panel Mount Connector IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Outdoor Network Adapter Brand

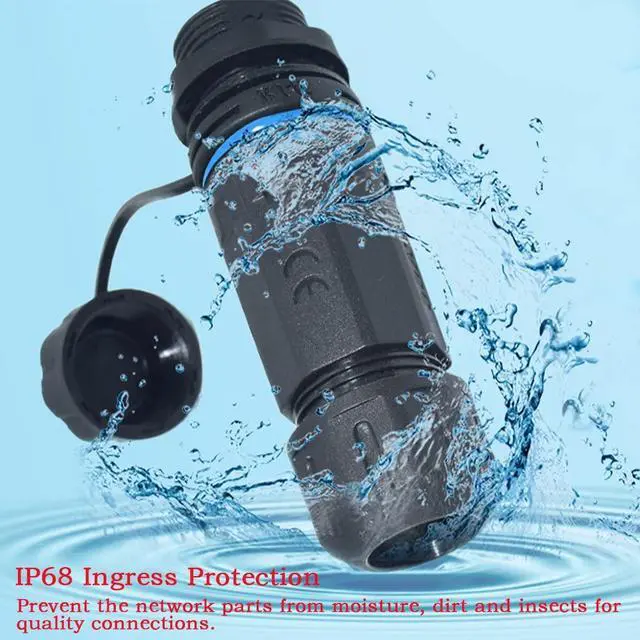

- The Waterproof RJ45 Connector are IP 68 Compliant. Prevent the network parts from moisture, dirt and insects for quality connections. Perfect for external holiday lighting displays, IP security cameras, industrial applications.
- CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 1Gbps (1000Mbps).
- Apply to cable size: O4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.

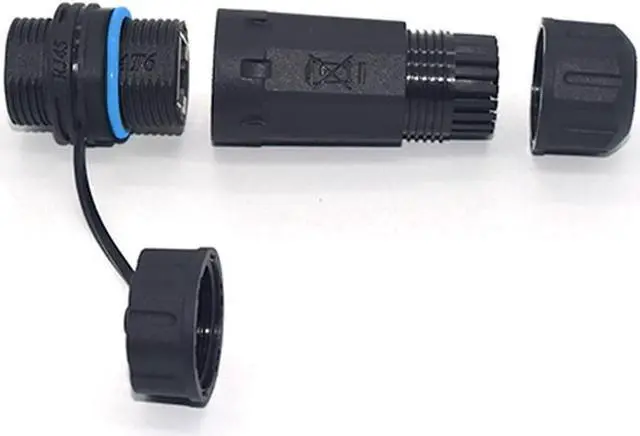

- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
INGRESS PROTECTION: IP68 (Waterproof and dustproof)
Thread: M23
Color: Black, Blue
Number of cores: 8 PIN
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD ( 4.5 ~ 7.5 ) mm
Connector transmission classification: CAT5, CAT5E, CAT6
Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: >500MO
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: <10MO
Material:
Shell: nylon plus fiber (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Package Included:

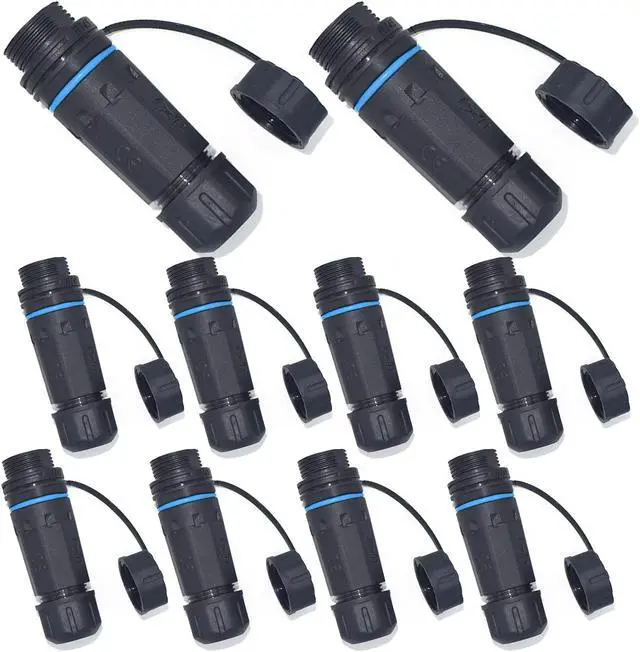

10x M23-CAT6-A Shielded Waterproof RJ45 Connector
Specifications
:INGRESS PROTECTION: IP68 (Waterproof and dustproof)
Thread: M23
Color: Black, Blue
Number of cores: 8 PIN
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD ( 4.5 ~ 7.5 ) mm
Connector transmission classification: CAT5, CAT5E, CAT6
Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: >500MO
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: <10MO
Material:
Shell: nylon plus fiber (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Package Included:
10x M23-CAT6-A Shielded Waterproof RJ45 Connector
