2.13inch E-Paper HAT+ for Raspberry Pi 5 4B 3B+ 3B Zero W Zero 2 W Jetson Nano, E-Ink Display 250x122 SPI Interface HAT+ Standard with Pwnagotchi Tutorial Support Partial Refresh

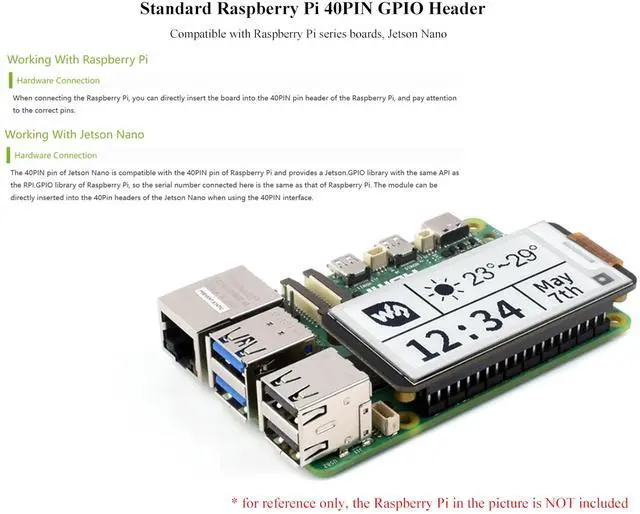

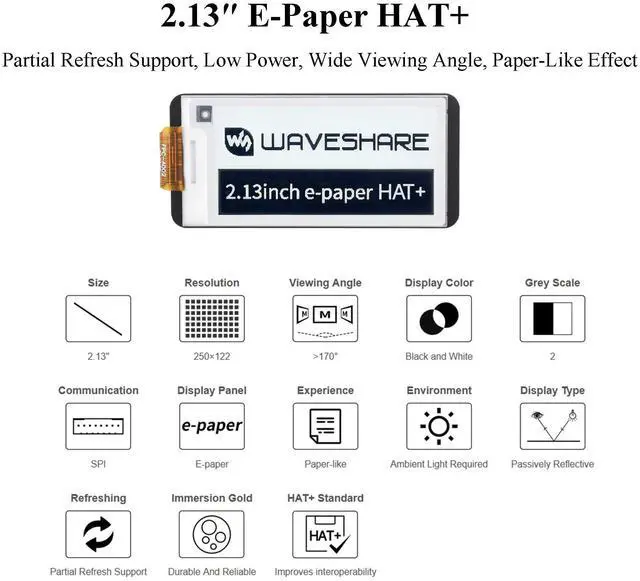

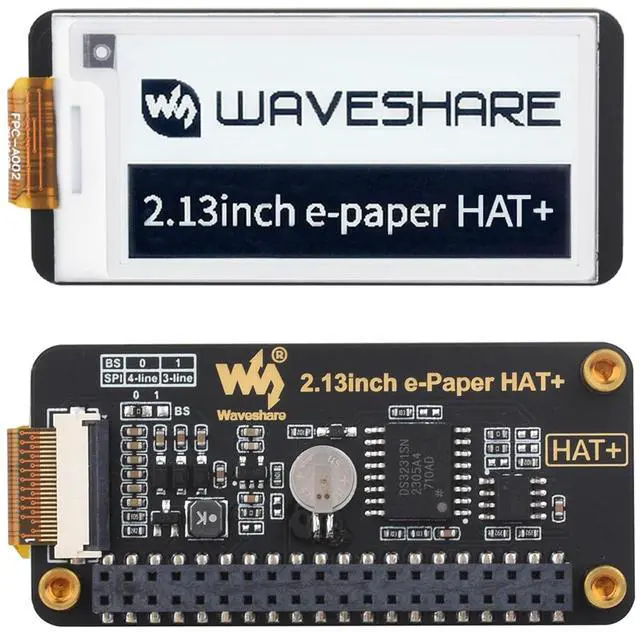

2.13 inch E-Paper HAT+ with Standard Raspberry Pi 40PIN GPIO header, Compatible with Raspberry Pi series boards, Jetson Nano. Support partial refresh, low power, wide viewing angle, paper-like effect.

Features

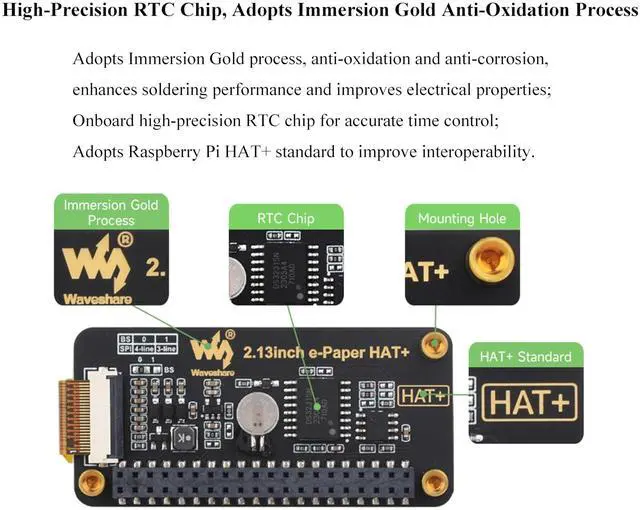

Onboard high-precision R T C chip for accurate time control Optimized PCB layout with additional mounting holes for fixing screws Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties, with better durability and reliability to meet various applications Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi No backlight, keeps displaying last content for a long time even when power down
Comes with Online Development Resources and Manual, Please
come here to check: n9. cl/kwo6i5
---driver board circuit diagram
---examples for Raspberry Pi OS / Jetson Nano, etc. and provides pwnagotchi porting tutorial

We recommend that customers use the sample program provided by us to test with the corresponding development board

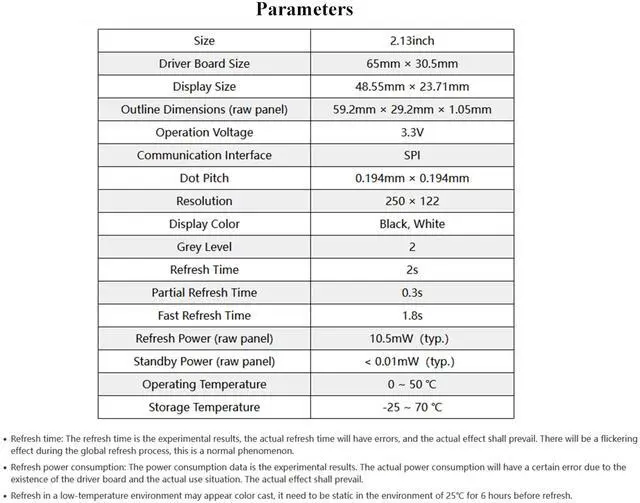

Specifications

Operating Voltage-- 3.3V
Interface --3-wire SPI, 4-wire
Outline Dimensions --65 x 30.5 mm
Display Size-- 48.55 x 23.70 mm
Dot Pitch -- 0.194 x 0.194 mm
Resolution--250 x 122 pixels
Display Color --black, white
Grey Scale--2
SPI full refresh time--2s
Partial Refresh Time-- 0.3 s
FAST REFRESH TIME-- 1.8 s
Refresh Power -- 10.5 mW (typ. )
Standby Power-- <0.01mW(typ.)
Viewing Angle 170deg

Package Content
2.13 inch e-Paper HAT+ x1
Screws pack x1
