BiDirectional Converter BiDirection Converter Module NMEA2000 and NMEA0183 KC2W IPX67 DC 930V ABS

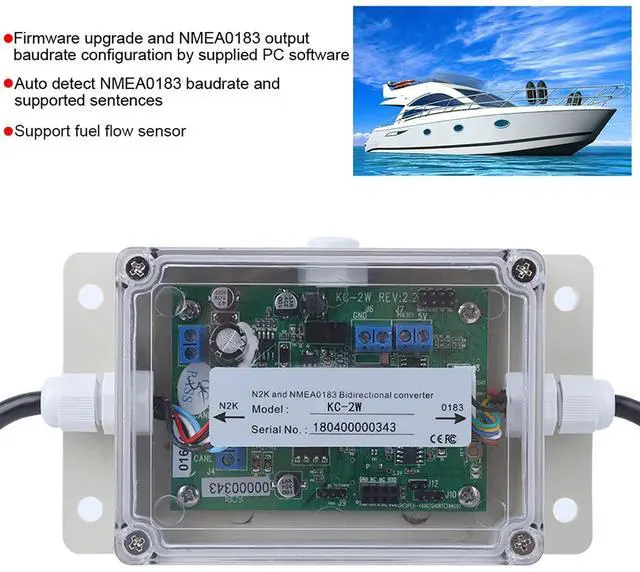

- Function ---- BiDirectional Converter support fuel sensor, auto detect NMEA0183 baudrate and supported sentences. Take power from the N2K network, no external power supply is needed.
- Professional manufacturing ---- Establish strict quality control standards, testing has been carried out before leaving the factory. Professional manufacturing, high reliability.
- Features ---- Firmware upgrade and NMEA0183 output baudrate configuration by supplied PC software.
- Plug and play ---- BiDirectional Converter is easy to install, convenient to use, overvoltage , fast and efficient.Converts NMEA 0183 sentences to N2K PGNs, converts N2K PGNs to NMEA 0183 sentences.
- Specification ---- Material: ABS, Voltage: 9-30V DC, Current Consumption: 50mA at 12V DC, : Overvoltage, power supply transient and accidental reverse polarity , Electrical: Optical isolation on the N2K Can bus, Connector: male, Cable Length: Approx. 1.2m/1.3yd, Factory Default Setting: Enable all supported
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Conditon: Brand
NewItem Type: BiDirectional
ConverterMaterial: ABS
Color: As
Pictures ShownVoltage: 9-30V
DCCurrent Consumption: 50mA at 12V
DC: Overvoltage, power supply transient and accidental reverse polarity protectionSupported
PGNs: 126992, 127237, 127245, 127488, 127250, 127251, 127258, 127489, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129044, 129283, 129284, 129291, 129539, 129540, 129793, 129794, 129798, 129809, 129810, 130306, 130310, 130311, 130312, 130578Electrical: Optical isolation on the
N2K Can busConnector: maleCable
Length: Approx. 1.2 m/ 1.3 ydFactory
Default Setting: Enable
all supported aboveSupported:,,, BWW,,, DTM, GGA, GLL, GSA, GSV,, HDM,, MDA,,,,, ROT, RSA,, VDO,,,, VTG,, XTE, ZDA
Electric:
Output:
RS232Input: RS232 photoelectric isolationBaud
Rate:
Input: Automatic detection (maximum 115200)
Output: Configurable (factory default is 38400)
Factory Default Setting: Enable all the supported
NMEA0183Input: TTL
Output:
N2K:
127489NMEA0183: Operating
Temperature: -20C
to +55CHumidity: 93%3% at 40CWaterproof
Level: IPX67Package

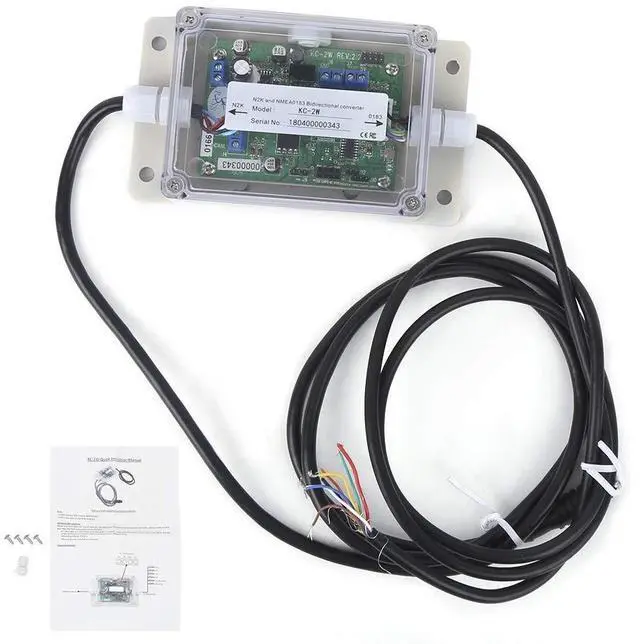

List: 1 x BiDirectional Converter4 x Screw1 x Connector1 x Instruction
Conditon: Brand
NewItem Type: BiDirectional
ConverterMaterial: ABS
Color: As
Pictures ShownVoltage: 9-30V
DCCurrent Consumption: 50mA at 12V
DC: Overvoltage, power supply transient and accidental reverse polarity protectionSupported
PGNs: 126992, 127237, 127245, 127488, 127250, 127251, 127258, 127489, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129044, 129283, 129284, 129291, 129539, 129540, 129793, 129794, 129798, 129809, 129810, 130306, 130310, 130311, 130312, 130578Electrical: Optical isolation on the
N2K Can busConnector: maleCable
Length: Approx. 1.2 m/ 1.3 ydFactory
Default Setting: Enable
all supported aboveSupported:,,, BWW,,, DTM, GGA, GLL, GSA, GSV,, HDM,, MDA,,,,, ROT, RSA,, VDO,,,, VTG,, XTE, ZDA
Electric:
Output:
RS232Input: RS232 photoelectric isolationBaud
Rate:
Input: Automatic detection (maximum 115200)
Output: Configurable (factory default is 38400)
Factory Default Setting: Enable all the supported
NMEA0183Input: TTL
Output:
N2K:
127489NMEA0183: Operating
Temperature: -20C
to +55CHumidity: 93%3% at 40CWaterproof
Level: IPX67Package
List: 1 x BiDirectional Converter4 x Screw1 x Connector1 x Instruction
