NGW-1pc ReSpeaker 2-Mics Pi HAT

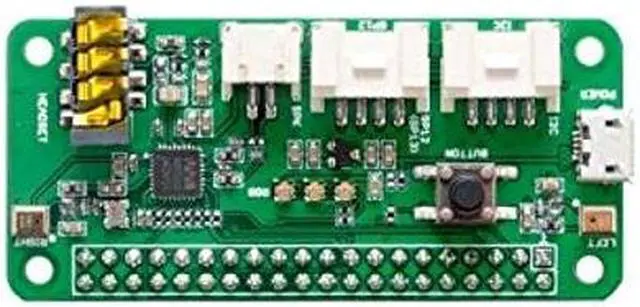

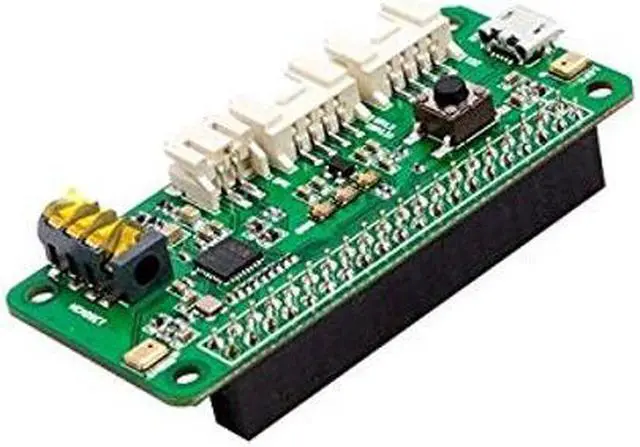

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Alexa Voice Service, Google Assistant, and so on. The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5 mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

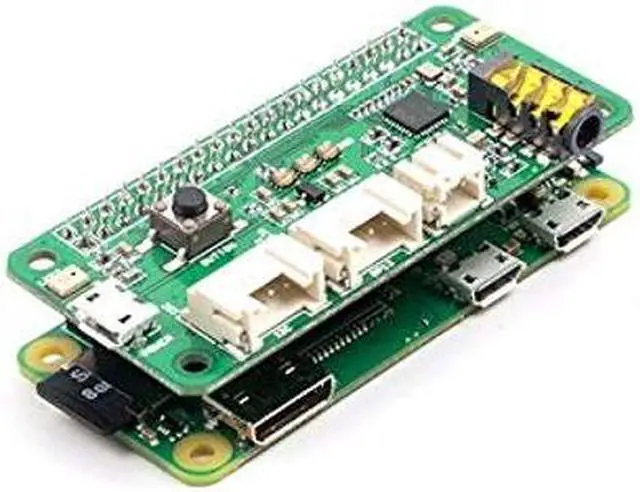

Note: This product does not include the Pi Zero board Features Compatible with Raspberry Pi (Support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B, Raspberry Pi 3 B and Raspberry Pi 3B+ ) Dual-Microphones 2
Grove Interfaces: support GPIO and I2C Programmable
Button and LED: one button and three LEDs Stereo Codec with Class D Speaker Driver Two types audio output socket: 3.5 mm Audio Jack (40mW output ), JST 2.0 Speaker Out (providing 1W into 8O loads) Far field support (up to 3 meters)
