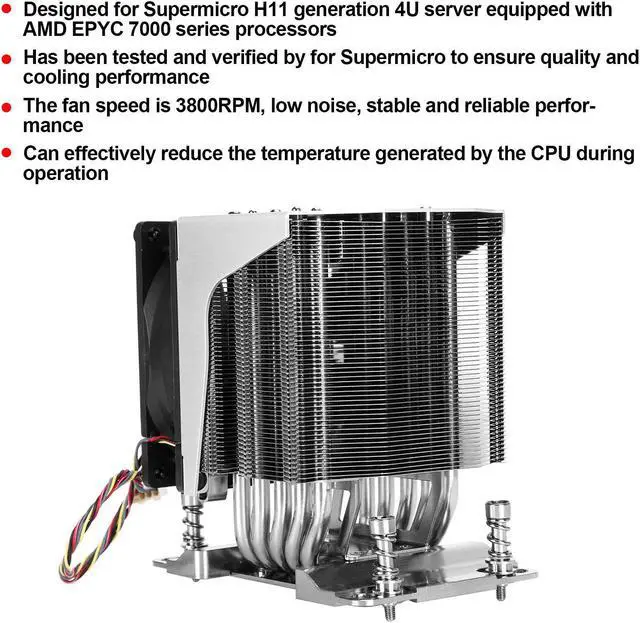

CPU Cooler, Cooling Fan Radiator, Computer Supplies SNK?P0064AP4 EPYC 7000 Socket SP3, with Large Air Volume, Portable Efficient Heat Dissipation, Professional Manufacture, Low

Specification:

Item Type: CPU Cooler
Model: SNK-P0064AP4
Applicable Motherboard: For Supermicro H11 single/dual motherboard
Socket Type: Socket SP3
Applicable CPU: AMD EPYC 7000 Series CPU Heat Sink
Sound (dBA): 38dBA
Speed (rpm): 3800rpm
Size: Approx. 119 x 92.5 x 126mm / 4.7 x 3.6 x 5in
Application Scope: 4U server/workstation platform
Fan Connector: 4Pin
Thermal Design Power (TDP): 180W
Rated Voltage: 12V
How To Use:

1. Before installing the radiator, please check that the radiator must be correctly aligned with the flowing direction of the system cooling air

2. According to the required air flowing direction of the radiator, adjust the position of the radiator mounting screw so that it can be aligned with the relevant nut bracket so that the radiator can be installed on the stiffening frame.

3. Remove the thermal interface material (TIM) or thermal grease protective cover. The required amount of TIM has been pre-applied on the bottom of the heat sink. Check the pre-coated TIM for damage.

4. Place the heat sink directly on the top of the CPU so that the four heat sink mounting screws are aligned with the four heat sink mounting studs or nut brackets on the slot reinforcement frame and fixed on them. The radiator must be correctly aligned with the flowing direction of the system cooling air. Please note that when tightening the four radiator mounting screws, do not install the radiator cooling fan on the radiator body.

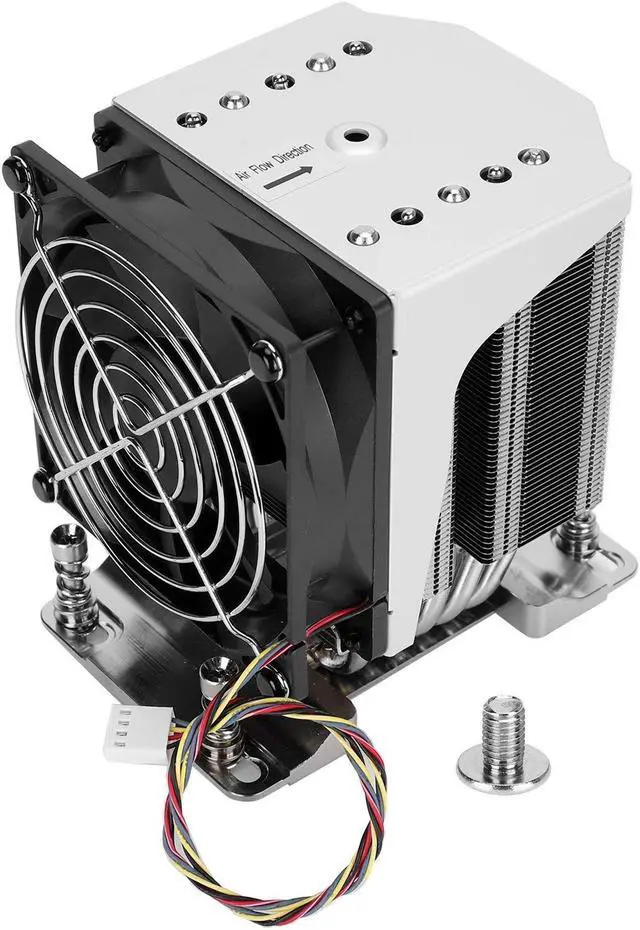

Package List: 1 x CPU Cooler
1 x Cooling Fan
1 x User Manual
1 x Screw
