UeeKKoo Industrial Grade Isolated USB to 8CH RS485 Converter, USB to RS485 Adapter, Support Wall-Mount & Rail-Mount & Stackable Installation, Win11/10/8.1/8/7/Mac/Linux/Android, etc.

Be the first to review this product...

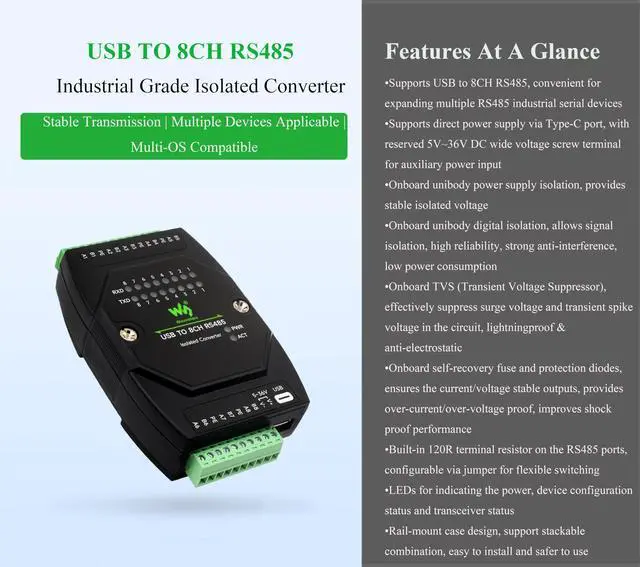

  • USB TO 8CH RS485 Industrial Grade Isolated Converter, Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices. Support Concurrent and Independent Communication for Each Channel
  • Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input. Supports Win11/10/8.1/8/7, macOS, Linux, Android, etc.

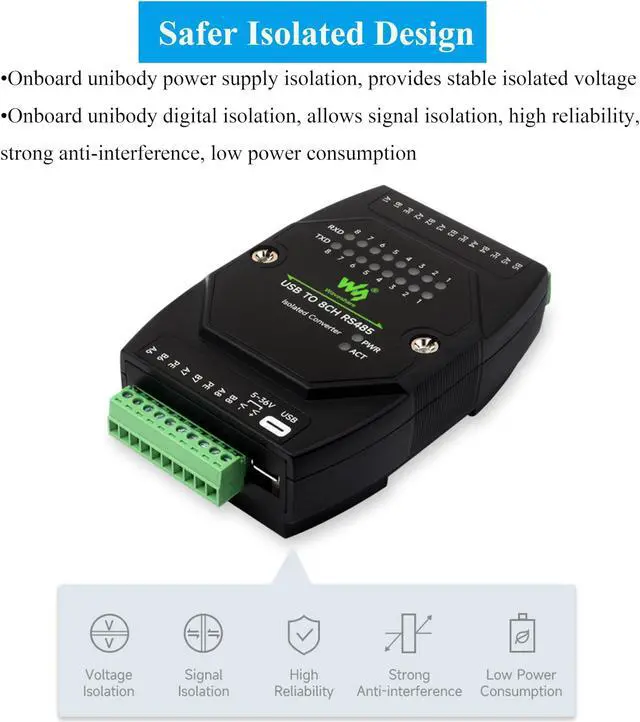

  • Onboard unibody power supply isolation, provides stable isolated voltage. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

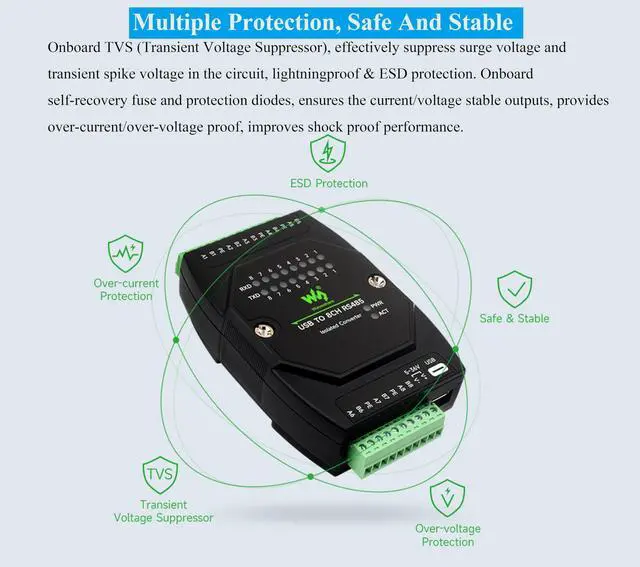

  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ning-proof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Built-in 120R terminal resistor on the RS485 ports,
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
USB TO 8CH RS485 Industrial Grade Isolated Converter, USB To RS485 Adapter, Multiple Protection Circuits, Wall-mount and Rail-Mount Support, Multi-OS Compatible, Stackable Installation Support. Support Concurrent and Independent Communication for Each Channel

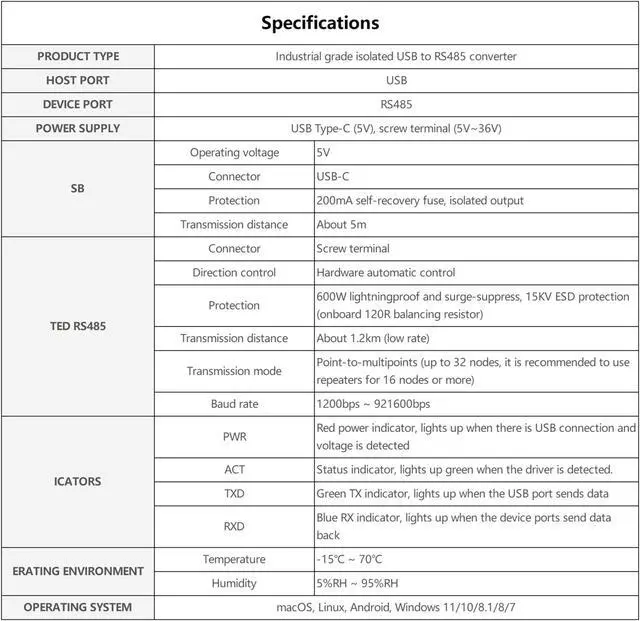

Specifications


Host port: USB
Device port: RS485
Power supply: USB Type-C (5V), screw terminal (5V~36V)

1. USB
Operating voltage: 5V
Connector: USB-C
Protection: 200mA self-recovery fuse, isolated output
Transmission distance: About 5m


2. Isolated RS485
Connector: Screw terminal
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: About 1.2 km (low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate: 1200bps ~ 921600bps

LED Indicators

PWR: Red power indicator, lights up when there is USB connection and voltage is detected
ACT: Status indicator, lights up green when the driver is detected
TXD: Green TX indicator, lights up when the USB port sends data
RXD: Blue RX indicator, lights up when the device ports send data back

Operating Environment
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH

Operating system: macOS, Linux, Android, Windows 11/10/ 8.1 /8/7

Provide Online Development Resources /User Manual: bit. ly/3SYcQjy

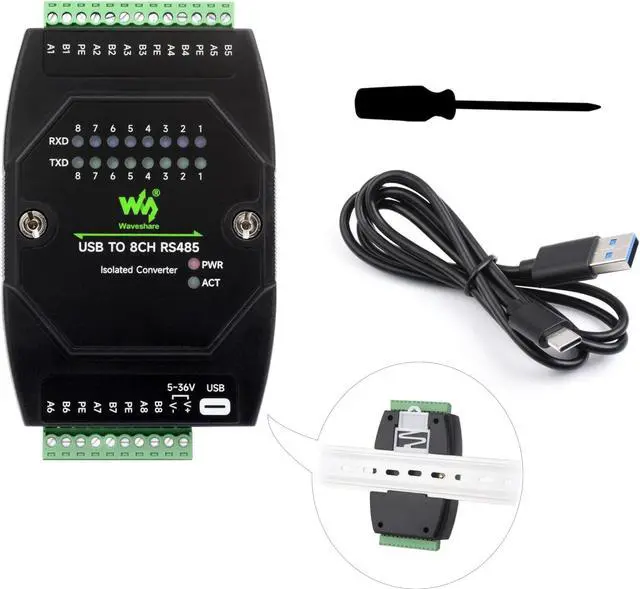

Package Content
USB TO 8CH RS485 x1
USB-A male to USB-C male cable ~1m x1
Screwdriver x1
