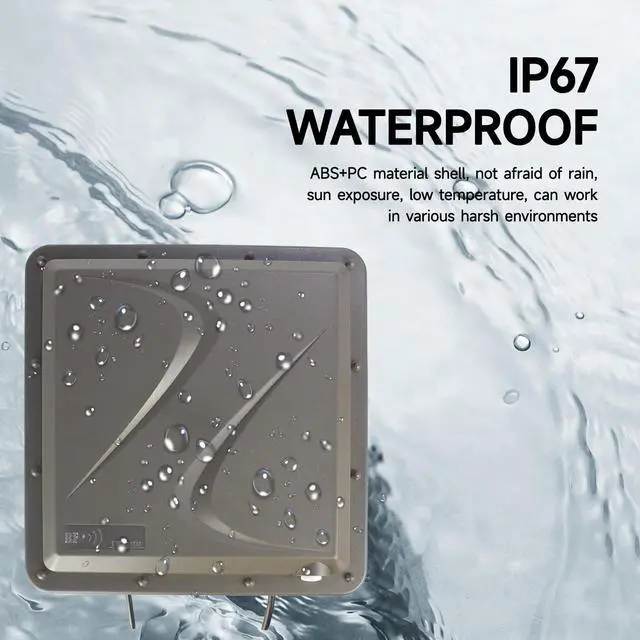

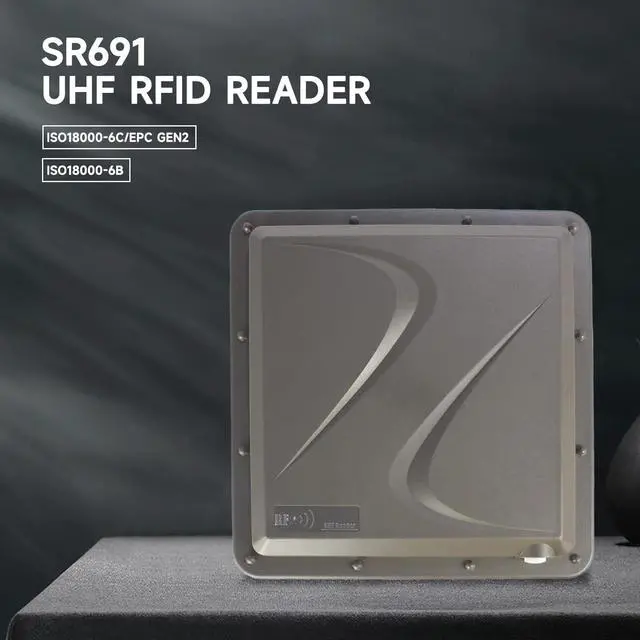

Yanzeo SR691 UHF RFID Reader 9m Long Distance Outdoor IP67 9dbi Antenna USB RS485 Wiegand26/34 UHF Integrated Reader

Downloading SDK link: www. yanzeo. com/download.
Professional technical support team, visit Yanzeo, we will provide you with more services.
Yanzeo SR691 UHF RFID Reader 9m Long Distance Outdoor IP67 9dbi Antenna USB/RS485/Wiegand26 Wiegand34 UHF Integrated Reader
The UHF RFID Middle Range Reader is a high performance UHF integrated reader.
Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Interface
Red: +9V
Black: GND
Green: USB TXD
White: USB RXD
Brown: GND
Yellow: Wiegand DATA0
Grey: Trigger input(TTL level
)
Blue: Wiegand DATA1
Purple: RS485 R+
Orange: RS485 R-
* Effective distance depends on antenna, tag and environment.
Pictures
Interfaces(USB, RS485, Wiegand26/34)

Power Supply
: SYMBOL: VCC
MIN: 8
TYP: 9
MAX: 12
UNIT: V

Current Dissipation:
SYMBOL: IC
TYP: 350
MAX: 650
UNIT: mA

Frequency:
SYMBOL: FREQ
MIN: 860
TYP: 865~868, 902~928
MAX: 960
UNIT: m-HZ

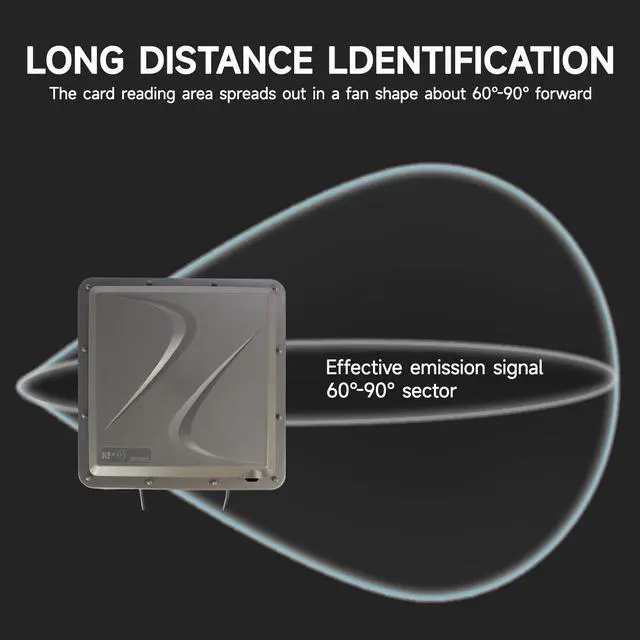

Effective Distance:
SYMBOL: DIS
MIN: 300
TYP: 500
MAX: 600
UNIT: CM

9662 read labels, we tested the longest distance is 9 meters, label size and dimensions of the different antennas will affect the reading distance.
Welcome more experienced counterparts to exchange UHFRFID!
