$74.99
Meet Your Seller
VSDISPLAY VGA 2AV LCD Controller Board Work for 14" 15.6'' b140xtn03.1 LP140WH1 BT140XW02 B156XW02 1366x768 LVDS 40Pin WLED Backlight LCD Panel
- Compatible Work With 14"15.6" 1366x768 LVDS 40 Pin WLED Backlight LCD Screen,LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1 N140B6B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4 LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04
- Not list all the types which are compatible work with this controller kit , if you can not find your screen type name, please feel free to contact with us to double confirm, we will reply in 24hours.
- Refer the left 7th picture to confirm your screen type is meet the requirement or not , if you still can not sure , leave a question for us, we will reply for you in 24hours, and after confirming then to order is better.
- Help to notice your screen need a LVDS connector panel . For example , it is compatible with LP140WH4-TLN1, but it isn't compatible with LP140WH4-TPA1

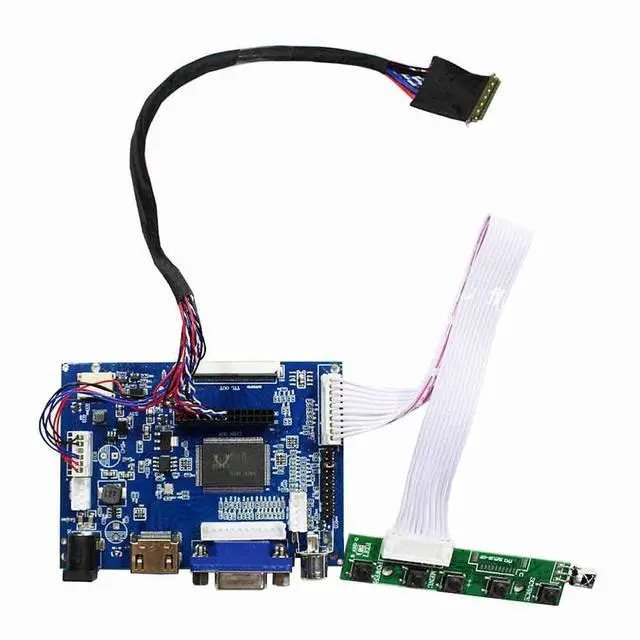

- Packing list : 1× VGA+2AV LCD Controller Board VS-TY2662-V1 1× 40Pin Signal Cable 1× Keyboard With Cable 1× Remo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible Work With:
14inch 1366*768:
LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1
N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3-TL LP140WH4-TL
15.6 inch 1366x768
LTN156AT17 LTN156AT02 LTN156AT24
LP156WH2 LP156WH4 BT156GW02
N156B6 B156XTN03 B156XW02 B156XW04
LCD Controller Board:
VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

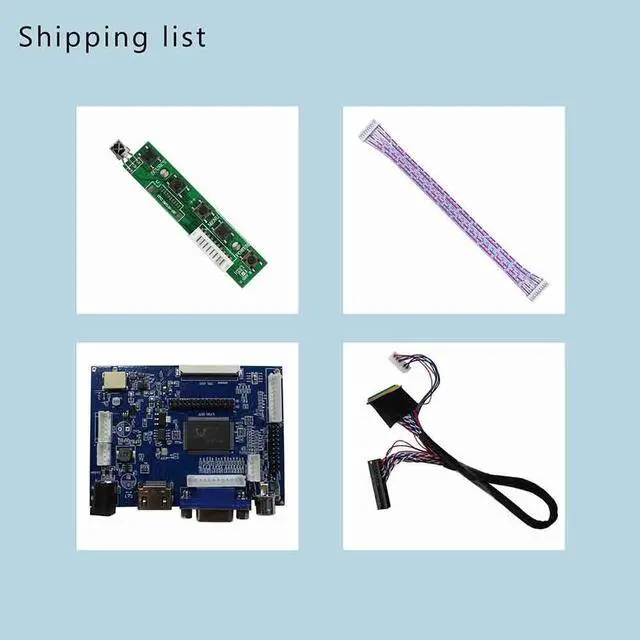

Packing list:
1× VGA+2AV LCD Controller Board VS-TY2662-V1
1× 40Pin Signal Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
14inch 1366*768:
LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1
N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3-TL LP140WH4-TL
15.6 inch 1366x768
LTN156AT17 LTN156AT02 LTN156AT24
LP156WH2 LP156WH4 BT156GW02
N156B6 B156XTN03 B156XW02 B156XW04
LCD Controller Board:
VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
Packing list:
1× VGA+2AV LCD Controller Board VS-TY2662-V1
1× 40Pin Signal Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
