I70 LGA1700 CPU Cooler - 120mm Low Noise Cooling Fan & Heatsink (RR-I7A7-18FK-N1) - ONLY for Intel Socket LGA 1700
- Model: I70C FOR LGA 1700 TDP85W Fan speed (RPM): 650-1800 RPM 10% Fan size: 120x120x25mm Air volume: 37CFM 10% Wind pressure: 1.33mm H2O 10%
- Radiator size: 120X120X70(4.7*4.7*2.7 inch) mm Noise: 28 dBA (Max)
- Thermal Grease pre-pasted on heatsink
- Heat Sink Dimensions: 90 x 90x 45 mm (3.6 x 3.6 x 1.7 inch) Heat Sink Material: Aluminum Extrusion
- Note: This version only supports 12 generations Intel LGA1700 CPU
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

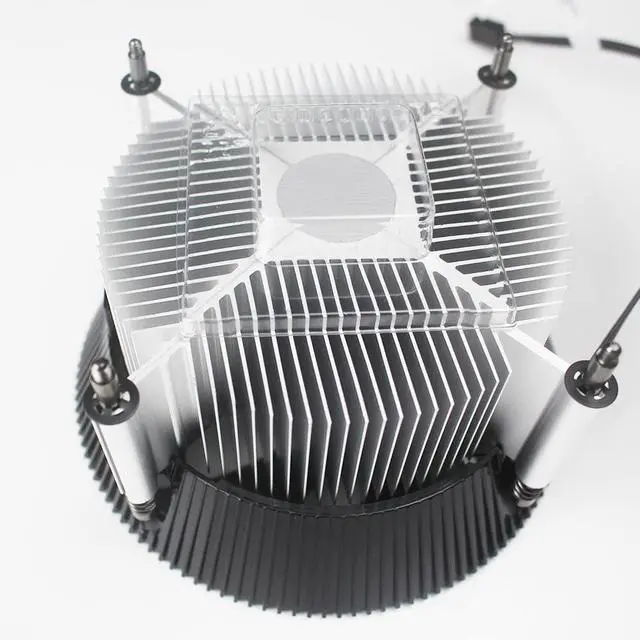

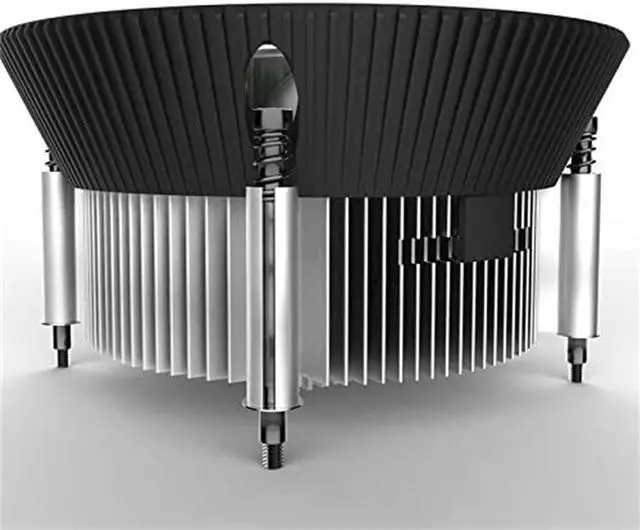

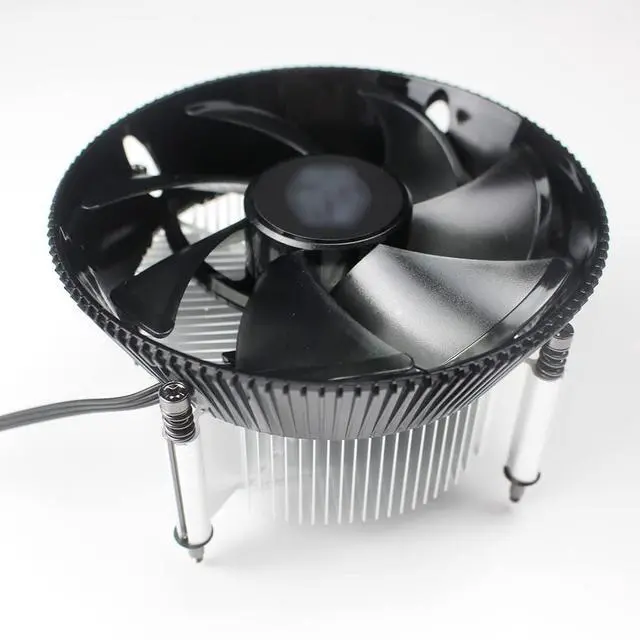

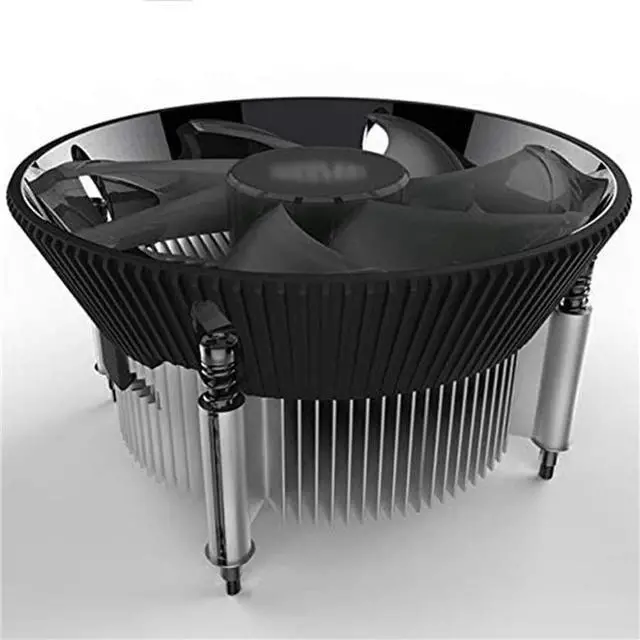

I70 LGA 1700 CPU Cooler i70 is a newly designed air cooler that compatible with intel LGA 1700 sockets. Compact design perfectly fits All-in-One systems or limited form factor cases. Aluminum fins provide excellent heat dissipation. 120mm diameter fan with long life expectancy, durable materials, strong airflow, and low noise output.
Features: Recommended for TDP U 95W 70mm Height For All-in-one PC or 2U Server 3-pin Fan Connector Thermal Grease pre-pasted on heatsink
CPU Socket: Intel LGA 1700
Overall Dimensions: 120 x 120 x 700 mm ( 4.7 x 4.7 x 2.7 inch)
Overall Weight: 390g / 0.86 lb Heat
Sink Dimensions: 90 x 90 x 35 mm ( 3.6 x 3.6 x 1.4 inch) Heat
Sink Material: Aluminum
Extrusion Fan: Fan
Dimensions: 120 x 120 x 25 mm ( 4.7 x 4.7 x 1 inch)
Fan Speed: 1800RPMA10%
Fan Air Flow: 37 CFM A 10%
Fan Air Pressure: 1.33 mm H2O A 10%
Fan Life Expectancy: 40, 000 hours (>4 years constant use)
MTTF: 280, 000 hours
Fan Noise Level: 28 dBA
Bearing Type: Rifle Bearing
Power Connector: 3-Pin
Fan Rated Voltage: 12VDC Fan
Rated Current: 0.1A
Power Consumption: 1.2W
Features: Recommended for TDP U 95W 70mm Height For All-in-one PC or 2U Server 3-pin Fan Connector Thermal Grease pre-pasted on heatsink
Specifications
: SupportCPU Socket: Intel LGA 1700
Overall Dimensions: 120 x 120 x 700 mm ( 4.7 x 4.7 x 2.7 inch)
Overall Weight: 390g / 0.86 lb Heat
Sink Dimensions: 90 x 90 x 35 mm ( 3.6 x 3.6 x 1.4 inch) Heat
Sink Material: Aluminum
Extrusion Fan: Fan
Dimensions: 120 x 120 x 25 mm ( 4.7 x 4.7 x 1 inch)
Fan Speed: 1800RPMA10%
Fan Air Flow: 37 CFM A 10%
Fan Air Pressure: 1.33 mm H2O A 10%
Fan Life Expectancy: 40, 000 hours (>4 years constant use)
MTTF: 280, 000 hours
Fan Noise Level: 28 dBA
Bearing Type: Rifle Bearing
Power Connector: 3-Pin
Fan Rated Voltage: 12VDC Fan
Rated Current: 0.1A
Power Consumption: 1.2W
