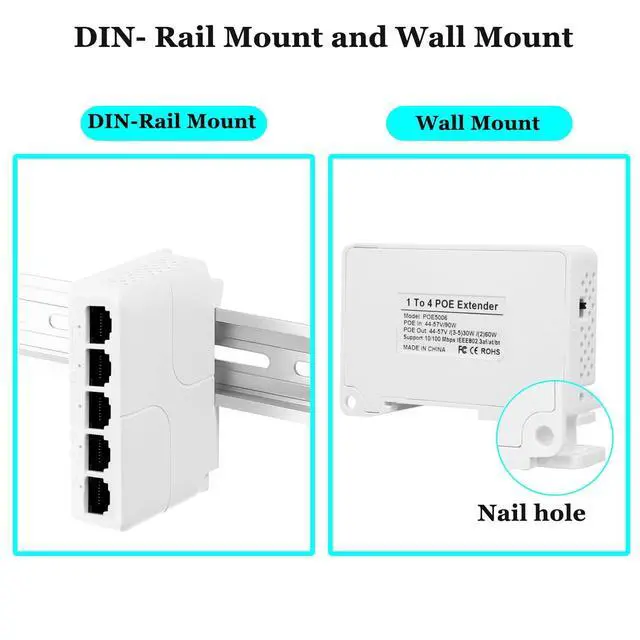

REVODATA 4 Port 90W PoE Extender, IEEE802.3af/at/bt, 10/100 Mbps PoE Repeater 100/250 Meter Extend, Output 30W and 60W(Max) Plug and Play, PoE Amplifier with Wall/DIN Rail Mounting (POE5006)

Note: 1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR. 2. Please don't place any heavy thing on the PoE extender; 3. To prevent the water seeping into the extender, please keep PoE extender away wet environment; 4. We recommend that you use an IEEE 802.3 bt PoE Switch. Only IEEE 802.3 bt PoE Switch can output 90W.

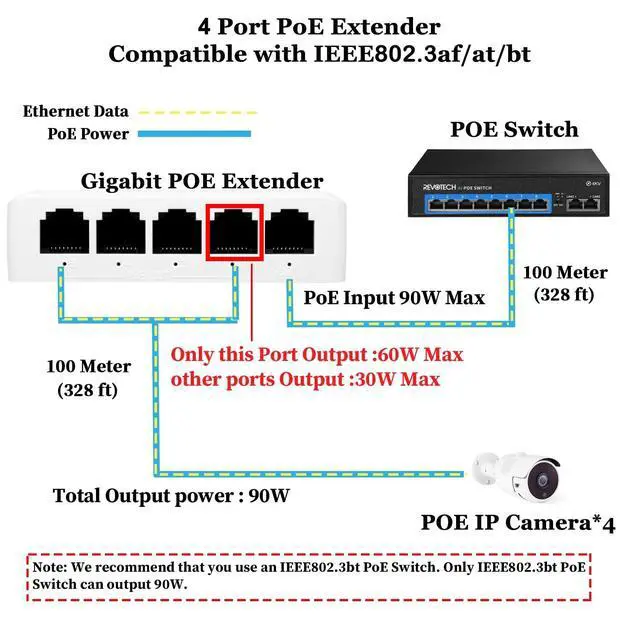

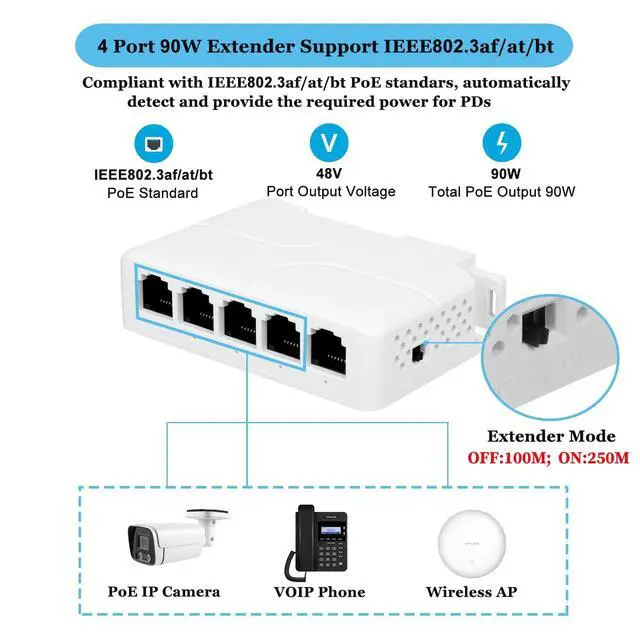

Overview: 90W PoE Extender is a cost effective way to extend the Ethernet network range beyond 250m (max), delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 250m while complying with IEEE 802.3 af/at/BT PoE and Data standards. The 90W PoE Extender supports 10/100Mbps data rates and delivers 802.3 af/at/BT power levels, up to 60W and 30W, The PoE Extender does not require local power and is powered via the PoE input. Extended PoE installation range by additional 250m.
Specification: PoE
input: 1
RJ45 portPoE output: 4
RJ45 portInput power: 90
Watts MaxOutput power: 30W and 60W (max)
Input Voltage: POE 44-57VOutput
Voltage: 48VData
Transmission Rate: 10/100MbpsNetwork
Medium: Cat5 or better UTP cable (less than 250m)
Repeater Mode: Store and forwardMAC
Address Table: 4KPacket
Buffer Memory: 128
ByteSwitching Capacity: 1000MbpsPoE
Standard: IEEE 802.3 af/at/BTPoE
Cable Core: 1/2+, 3/6-, Mode A, End-SpanPower
Supply Type: Mode A, End-SpanNetwork
Protocol: IEEE 802.3 i-10BASE-T, IEEE
802.3 u: 100BASE-TX, IEEE 802.3 x-Flow Control, IEEE 802.3 at/BT-Power over
EthernetRegulatory compliance: IEEE 802.3 af/at/BT, RoHS Compliant, CE, FCCEMC: FCC Part15,
Class BStorage Humidity: 5%~90%, No
CondensationWorking humidity: MAX to 90%, non-condensationMTBF: 100, 000h
at 25Working temperature: -35~
75Dimension: 85 x 51 x 23mm (L*W*H)
Weight: 60gPackage
Contents: 1 x 4 Port POE Extender (POE5006)
