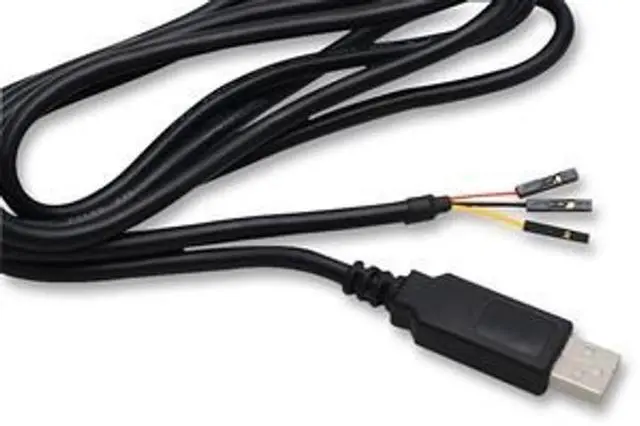

Main image of FTDI TTL-232R-RPI USB to UART, 3.3V TTL Logic Level, Raspberry Pi Compatible Flying Leads (RPI)

Shop All Barrow Mods Products | Visit Kaipuda Store

FTDI TTL-232R-RPI USB to UART, 3.3V TTL Logic Level, Raspberry Pi Compatible Flying Leads (RPI)

The TTL-232R-RPi cable provides a USB to asynchronous serial data transfer path capable of supporting data rates from 300 bits/s to 3 Mbits/s at 3.3 V TTL levels. The chip handles all the USB signaling and protocol requirements, enabling an improved debug and development environment where kernel debug messaging can be accessed.
Support for All Windows, All Mac OS, Linux, Android.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Part No: TTL-232R-RPI USB to UART, 3.3V TTL logic level, Raspberry Pi compatible flying leads USB to asynchronous serial data cable with + 3.3V TTL level UART signals
Data Rates: 3MBaud
USB Speed: Full
Speed (12Mbps) Interfaces: UART
USB Connector: Type
A End Connector: 3 way 0.1" female pin headers
Cable Length: 1.0 m
Cable

Details

: -
Packages: N/A
Channels: 1
I/O Voltage: TTL
USB Class: FTDI
Drivers Virtual Com Port: Yes
Max Power Output: -
FTDI Internal IC: FT232R
Operating Temperature: -40C to +85C
