Wishiot 2PCS ESP32-2432S028R 2.8" TFT LCD Display Module, WiFi+BT Dual-Core ESP32 Development Board with Touchscreen ILI9341 Driver for Arduino IDE and IoT Applications

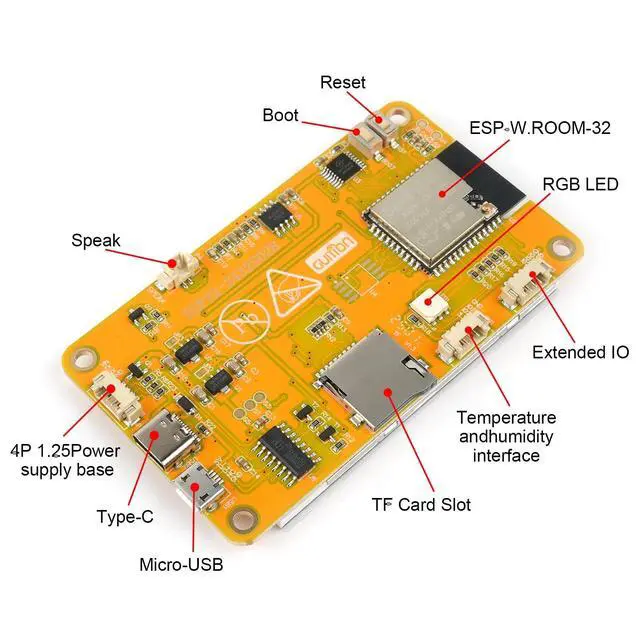

- ESP32-2432S028R based on the ESP32-DOWDQ6 controller with a 2.8 inch ILI9341 resistive touch screen display

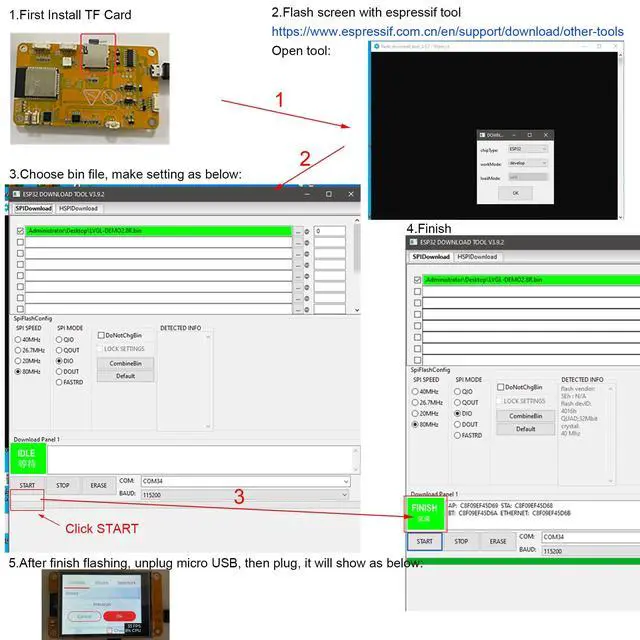

- Supports IDE and ESP32 Flash Tool for easy programming and secondary development(Detailed steps please find "Ask a question")
- Offers rich interfaces including UART SPI I2C PWM ADC DAC plus TF card and camera module support
- Ideal for a wide range of IoT projects including smart home automation, wireless image transmission, environmental monitoring, QR code recognition, and remote device control
- Must be powered by a dedicated 5V charger for stable performance not via computer USB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

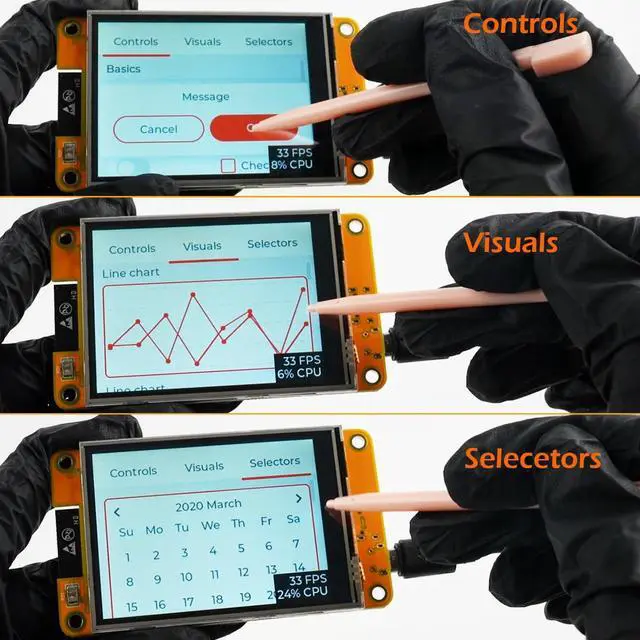

ESP32-2432S028R Yellow Display ESP32 2.8 inch touchscreen 240x320 ILI9341 driver LCD IoT display Smart Display ModuleFeatures 2.8 -inch color screen, support 16 BIT RGB 65K color display, display rich colors240X320 resolutionThe sample program has been programmed in the factory and can be plugged inWith TF card slot for easy expansion storageProvide arduino library functions and sample programs to facilitate rapid secondary developmentSupport one-click download programMilitary-grade process standards, long-term stable workProduct parametersSKU
Resistive touch:
ESP32-2432S028RResolution: 320*240 (Pixel)
Display color: RGB
65K colorSize: 2.8
inchType: TFT
Driver chip: ILI9341Effective
display area: 43.2 * 57.6 (mm)

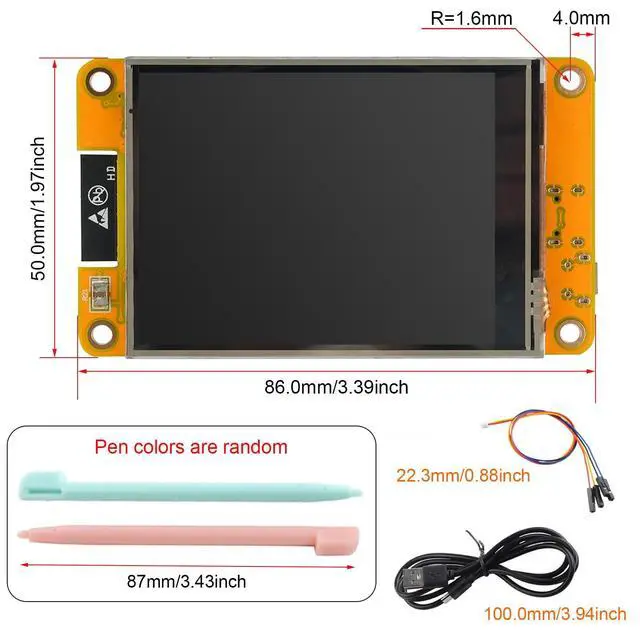

Module size: 50.0 * 86.0 (mm)
View: >60Operating
temperature: -20~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About
115mAProduct weight: About

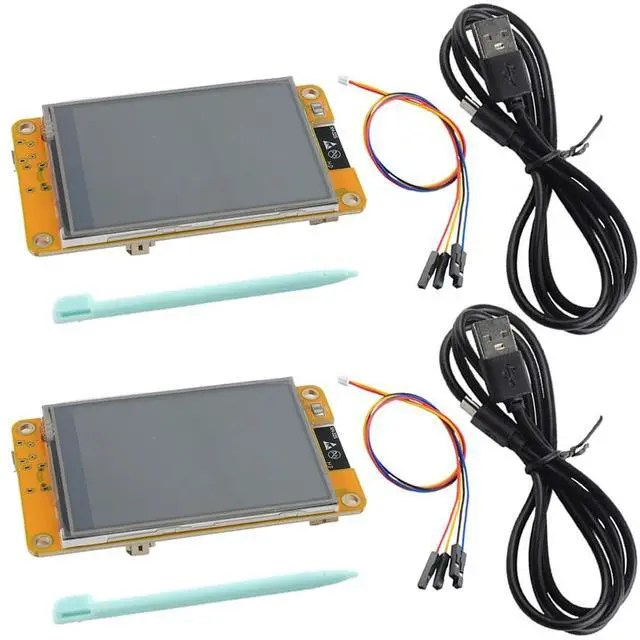

50gPackage includes: 2 X 2.8 '' ESP32 Display Module2 X USB Cable2 X Touch Pen (
Color: pink or white or black or green)2 X 4P Connector Cable2 X Plastic packaging box for display
Resistive touch:
ESP32-2432S028RResolution: 320*240 (Pixel)
Display color: RGB
65K colorSize: 2.8
inchType: TFT
Driver chip: ILI9341Effective
display area: 43.2 * 57.6 (mm)
Module size: 50.0 * 86.0 (mm)
View: >60Operating
temperature: -20~70Storage
temperature: -30~80Operating
Voltage: 5VPower
consumption: About
115mAProduct weight: About
50gPackage includes: 2 X 2.8 '' ESP32 Display Module2 X USB Cable2 X Touch Pen (
Color: pink or white or black or green)2 X 4P Connector Cable2 X Plastic packaging box for display
