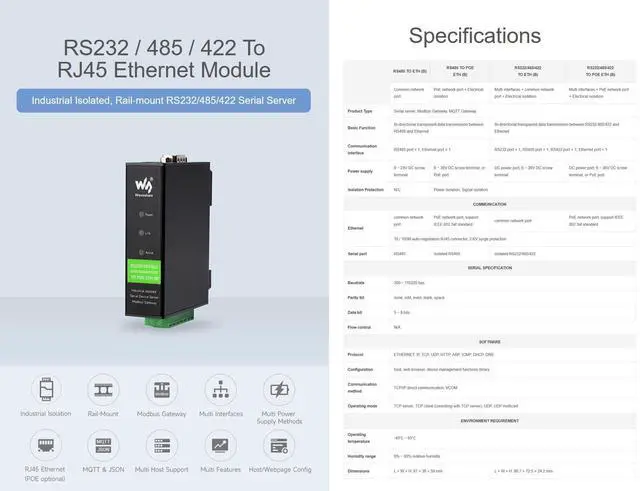

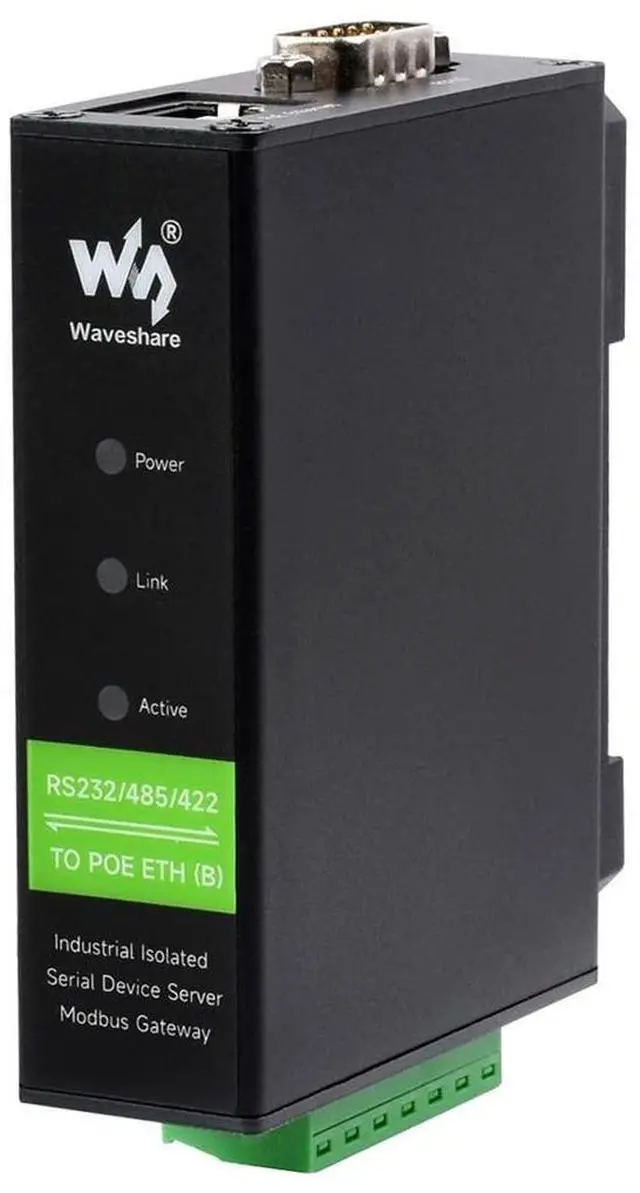

RS232/485/422 to RJ45 ETH Module Serial Server Modbus Gateway MQTT Gateway TCP/IP to Serial, with PoE Function, Bi-Directional Transparent Data Transmission Between RS232/485/422 and Ethernet

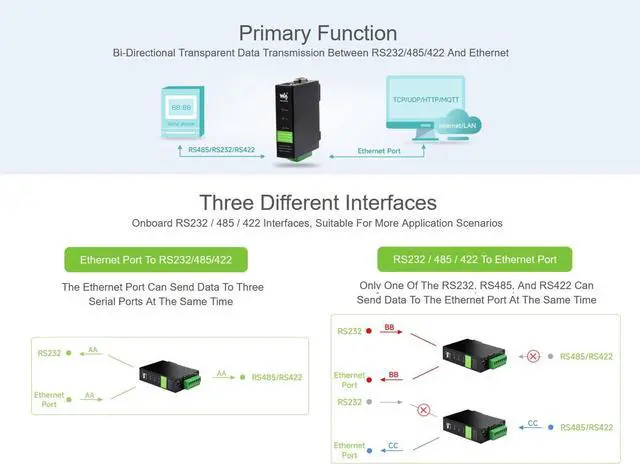

RS232/485/422 TO POE ETH module combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc., bi-directional transparent data transmission between RS232/485/422 and Ethernet ^^ Onboard RS232 / 485 / 422 Interfaces, suitable for more application scenarios. The Ethernet port can send data to three serial ports at the same time, only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time ^^

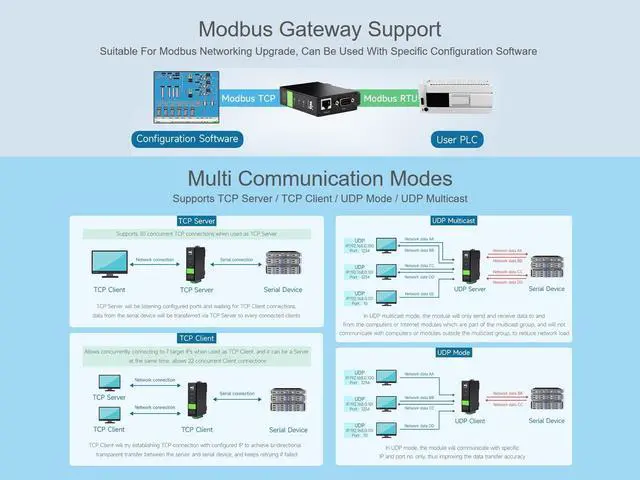

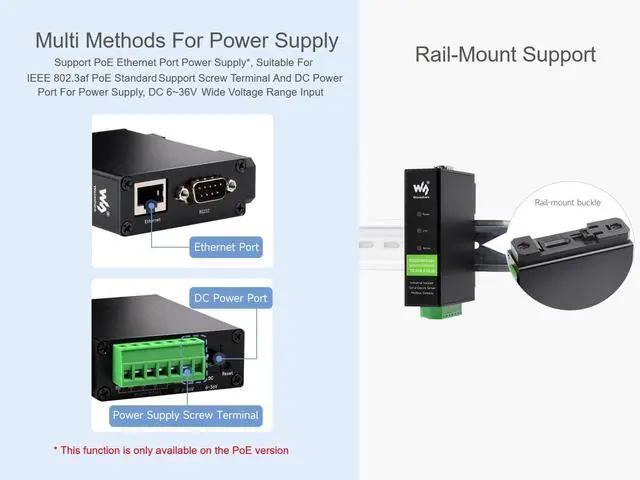

Multi methods for power supply: support PoE Ethernet port power supply, suitable for IEEE 802.3 af PoE standard. Support Screw Terminal and DC Power Port for power supply, DC 6~36V wide voltage range input ^^ Support Modbus Gateway, suitable for Modbus networking upgrade, can be used with specific configuration software. Support TCP server / TCP client / UDP mode / UDP multicast multi communication modes. MQTT/JSON to Modbus, more flexible conversion between different protocols ^^ Multi hosts roll-polling support. User-defined heartbeat/registration packet. NTP protocol support. Multi configuration methods. Built-in protection circuits, safe and stable
