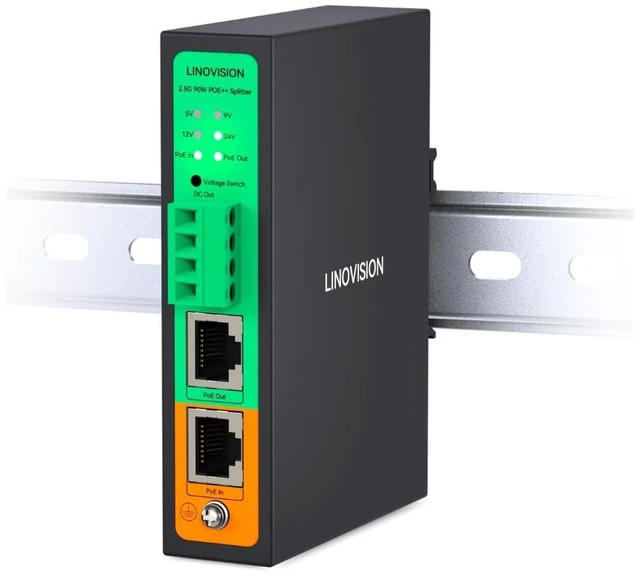

LINOVISION Industrial 2.5G PoE++ Splitter, BT 90W PoE to DC 5/9/12/24V

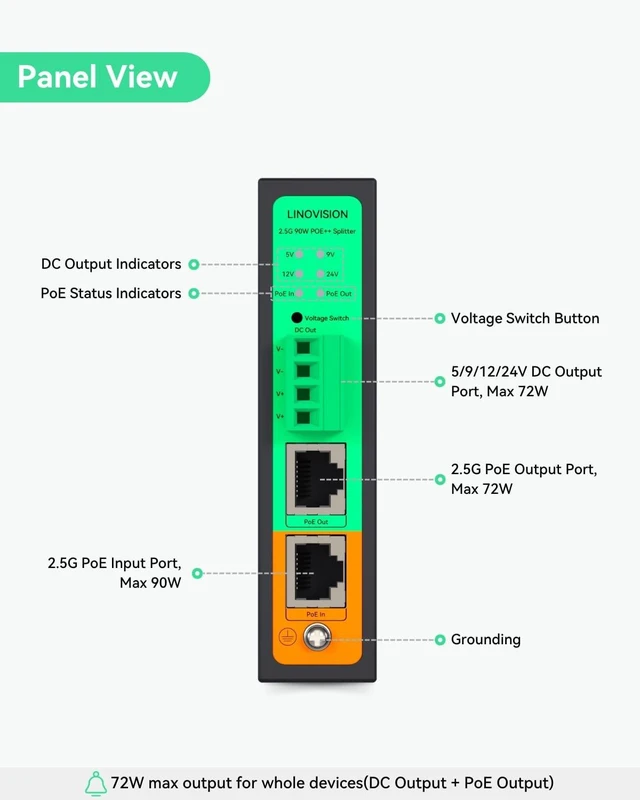

BT90W PoE SPLITTER - Split 90W IEEE 802.3 bt PoE to IEEE 802.3 bt POE and DC power outputs, max 72W in total. ^^ IEEE 802.3BT PoE OUTPUT - 1 x 2.5G IEEE 802.3 bt PoE passthrough output, allowing the device to simultaneously provide both PoE and DC power from a single PoE input. ^^ 5V/9V/12V/24V DC OUTPUT - Features 1 x DC 5V/14A or 9V/ 7.8A or 12V/ 5.9A or 24V/3A switchable output, with intelligent LED indicators for quick voltage selection ^^ 2.5G High-Speed Network - Supports 10/100/1000/2500Mbps network transmission, ideal for high-bandwidth applications such as AI cameras, WiFi 6 access points, high-resolution video, and edge computing deployments.

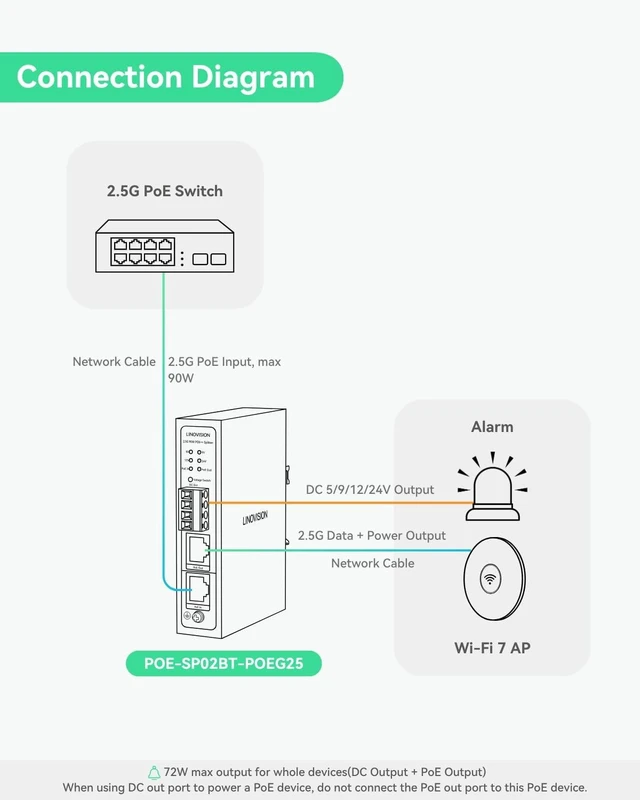

^^ RUGGED DESIGN - Industrial-grade metal housing with DIN-rail mounting design for harsh environments. Supports -40C to 75C wide temperature operation with built-in short-circuit and thermal protection. ^^ NOTED - POE-SP02BT-POEG25 needs to work with standard IEEE 802.3 at/bt standard PoE switches, like POE-SW508G2 or POE-IN9001G10. Please do not connect it with non-standard BT POE Switches or Injectors, including POE-IN90W (Passive PoE version). ^^ When using DC out port to power a PoE device, do not connect the PoE out port to this PoE device.
