DIYmalls Nextion 5 inch HMI Display Resistive Touch Screen 5V TFT LCD 800x480 for Arduino ESP32 Board (NX8048T050)

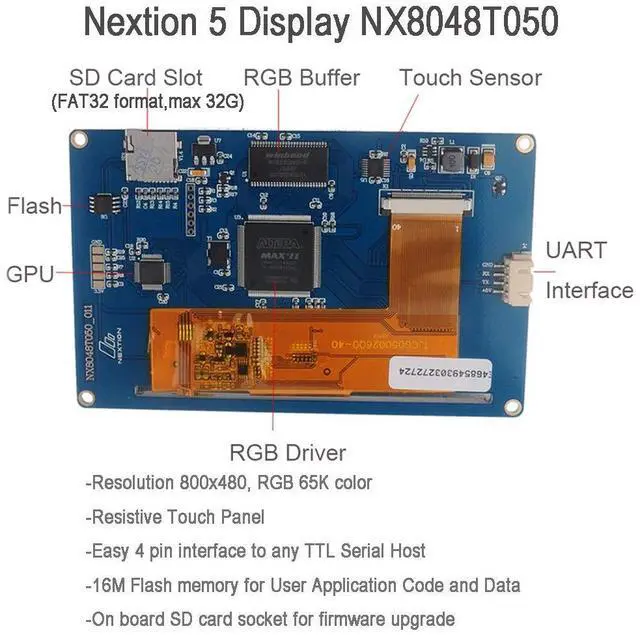

- -As a member of Nextion basic series, NX8048T050 is a powerful 5.0 inch HMI: a 5.0" TFT 800x480 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.

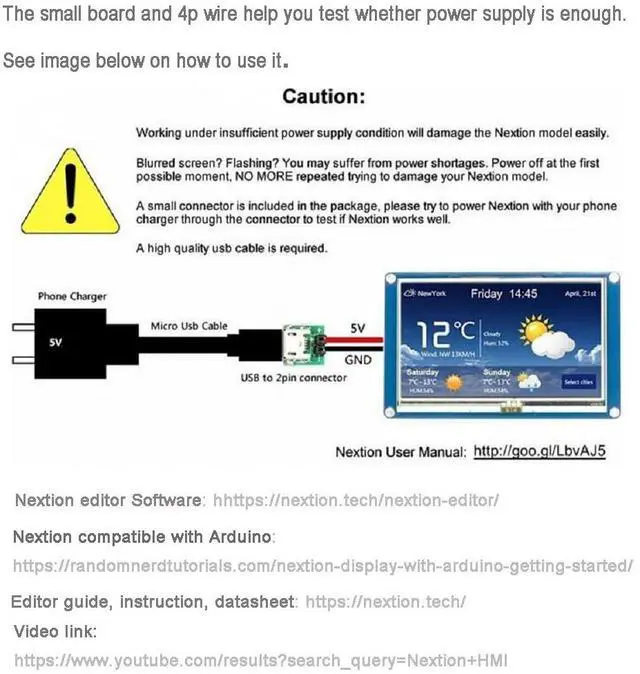

- -Nextion 5.0 display is a 5V device, but many development boards are 3.3V. It won't make the display power up.
- -To ensure Nextion basic 5.0 inch display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
- -Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
- -If your HMI project was developed via 0.53 or prior version Nextion Editor, we recommend you to use the LTS version for project maintenance as the latest version is not fully compatible with your exsisting source code and GUI desgin.
+
+
