VSDISPLAY 10.4" 10.4 Inch 1024x768 600nit IPS LCD Screen VS104T-004A with Audio LCD Controller Board
- 10.4" VS104T-004A 1024X768 LCD Screen: Resolution 1024×768 Outline Size 227.00×175.80×7 (H×V×D) Display Area 210.43 × 157.824 (H×V) Brightness 600 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
- LCD Board Work for LVDS Interface LCD Screen
- Video Input: Audio Input: Audio Output: Speaker earphone
- Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug...) Come In Standby Model When Not Input Signal Standby Model <1W.
- Packing list: 1× Audio LCD Controller Board 1×10.4inch VS104T-004 1024X768 LCD Screen 1× Inverter Board 1× LVDS Cable 1× Keyboard With Cable. (Please Note There is No Power Adapter in The Packing List.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

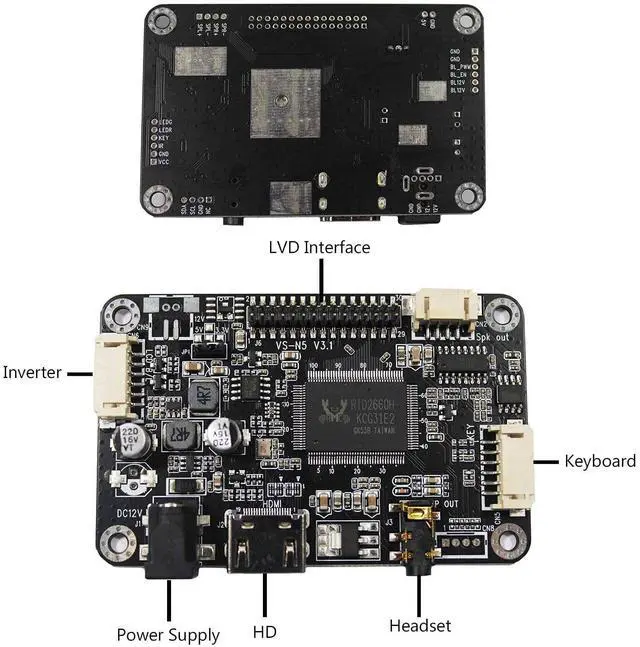

LCD Controller Board:
LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:
Audio Input:
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

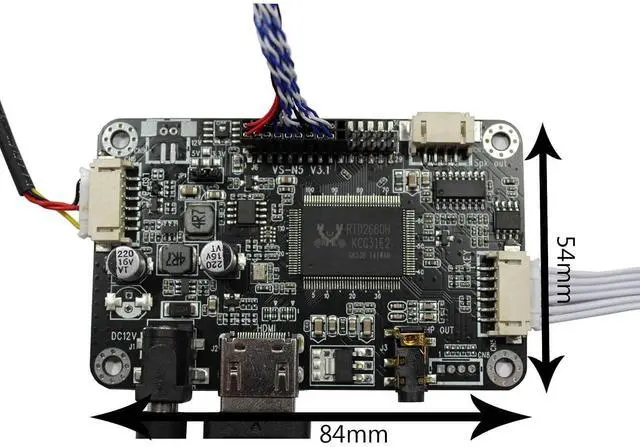

Board Size: 85mm x 54mm x 14mm
10.4" VS104T-004A 1024X768 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024×768
Outline Size 227.00 × 175.80 ×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 600 cd/m² (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× Audio LCD Controller Board
1× 10.4 inch VS104T-004 1024X768 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:
Audio Input:
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm
10.4" VS104T-004A 1024X768 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024×768
Outline Size 227.00 × 175.80 ×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 600 cd/m² (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× Audio LCD Controller Board
1× 10.4 inch VS104T-004 1024X768 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
