XICOOLEE OV5640 USB Camera Module 5MP 2592x1944 Fixed Focus 60 Degree Camera for Win XP Win7 Win8 Vista Mac Linux Android 4.0 Jetson Nano with Microphone Plug and Play

Overview:
The usb camera module is equipped with CMOS image sensor OV5640 produced by OmniVision Technologies, high-definition camera is 5 Megapixel,
onboard USB 2.0 interface, weights only 10g, adopts fixed focus mode, with Microphone, compatible with Win XP/Win7/Win8/vista/mac/Linux/Android 4.0 /Jetson Nano operating system.

Specifications

:
Size: 85.8 mm (Length) x18mm (Width) x6mm (High) ± 0.2 mm
Temperature (Operating): -30-70
Temperature (Stable Image): 0-50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-infinity
Resolution: 600LW/PH (Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V±5%
Maximum Power Consumption: 920mW
Operating System Request: Win XP/Win7/Win8/vista/mac/Linux/Android 4.0 /Jetson Nano
Sensor: OV5640(1/4")
Sensor Package: CSP
Bare Die
Maximum resolution: 2592 x 1944
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.4 µm x 1.4 µm

Maximum Image Transfer Rate:
MJPEG 1024x768 30FPS /YUY2 160x120 30FPS
MJPEG 1280x720 30FPS /YUY2 320x240 30FPS
MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS
MJPEG 1920x1080 15FPS /YUY2 800x600 30FPS
MJPEG 2048x1536 15FPS /YUY2 1024x768 15FPS
MJPEG 2592x1944 15FPS /YUY2 2592x1944 3FPS

S/N Ratio: 36db
Max Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 4P
F/No: 2.8
EFL: 3.3 mm
FOV: 60°
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Module Package: Anti-electrostatic tray

Package contents:

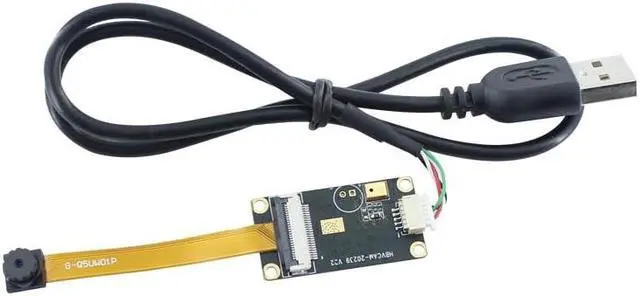

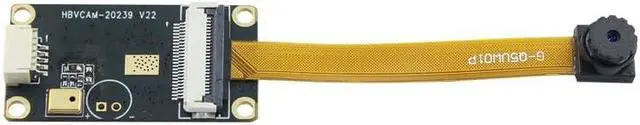

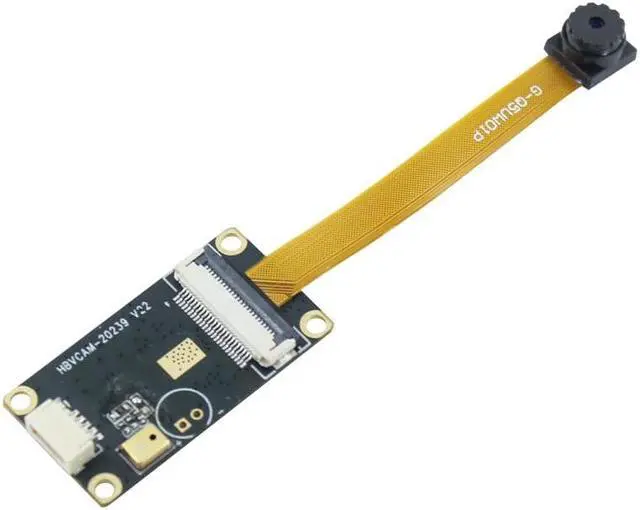

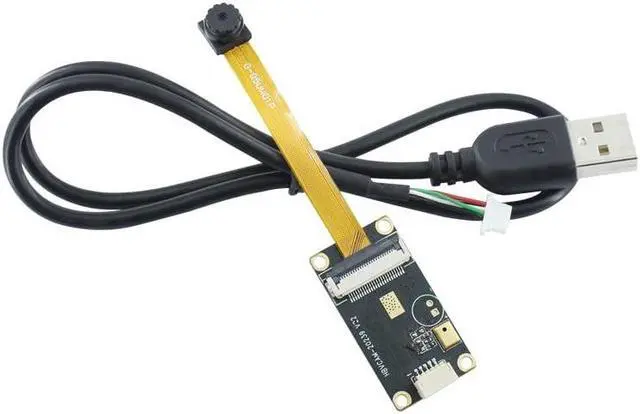

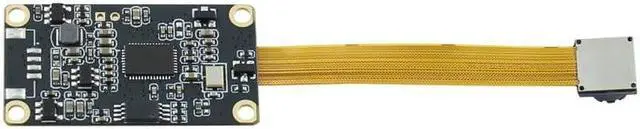

1. OV5640-U5M-FPC-60 x1 (Fixed)
2. USB to HX 1.25 -5P connecting cable x 1
