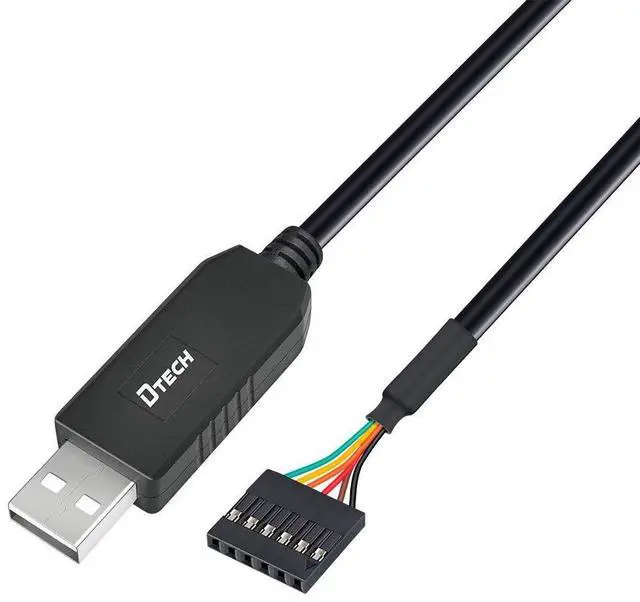

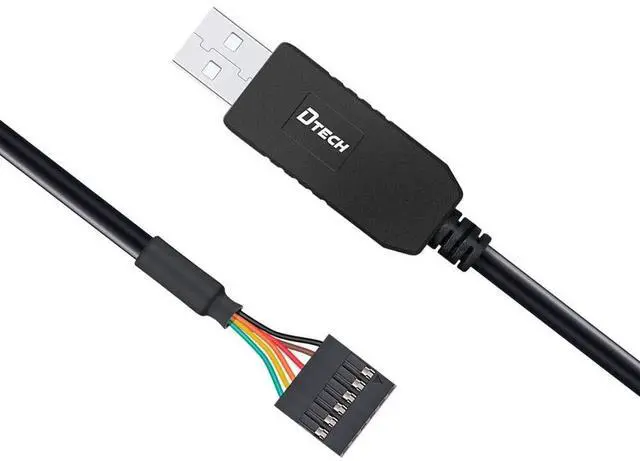

DTECH 6ft USB to TTL Serial Cable 3.3V 6 Pin UART Adapter Genuine FTDI FT232RL Chip Debug Cord Compatible with Windows 11 10 8 7 Linux MAC OS 6Pin 3v3 Level Signal 2.54mm Dupont Female Header
- 6 ft USB to TTL serial adapter FTDI chip 3.3v with 6 pin 0.1 pitch female socket header connects devices with 3.3 V logic level UART signals interface to a laptop via USB 2.0 port (232r-3v3)
- 3.3v TTL to USB cable is built with a genuine FTDI FT232R chip module in USB 2.0 type A male terminal for wider compatibility and reliable data transfer rates (TTL-232R-3V3)

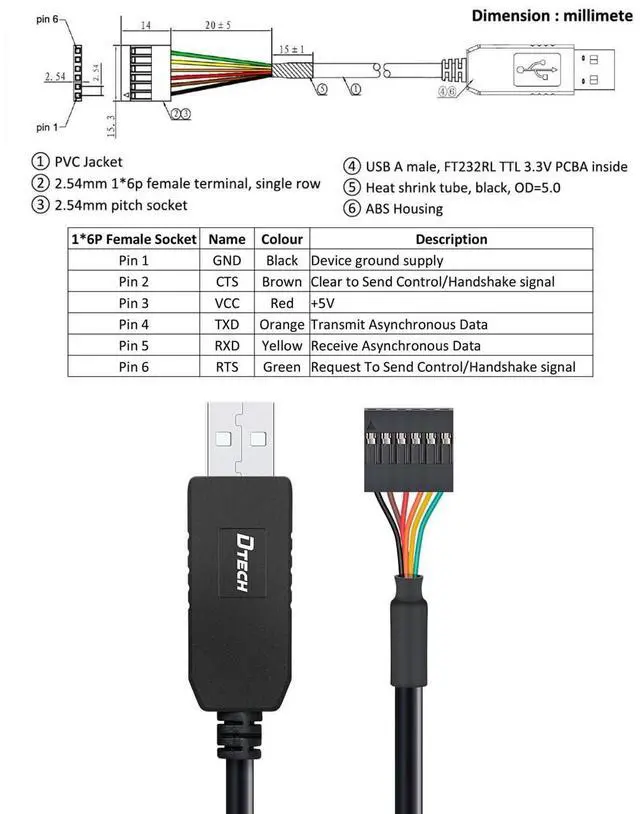

- 6 feet short USB to UART TTL serial cable 3.3 volt features 6 way outputs to provide access to Tx, Rx, RTS#, CTS#, VCC 5v and GND (power line provides 5V and data signal is at 3.3V)
- USB to TTL 3.3v built with FT232 FTDI chip on the PCB board has configurable internal EEPROM and 3V3 UART signals can be individually inverted by configuring the EEPROM

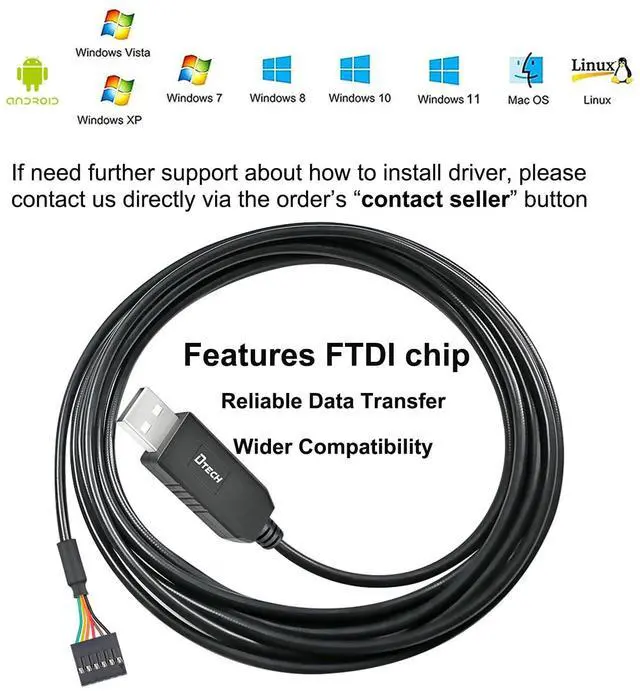

- USB-TTL converter chord is compatible with Windows 11, 10, 8, 8.1, 7, 2008/XP/Vista/CE, Mac OS, Linux; ideal USB 2.0 debug data communication cord for Vendor ID re-write, mini computer, router, printer, GPS, set top box, transmitter, flash firmware on hard drive, video di
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
6-Foot USB TTL serial adapter built with FTDI FT232RL chip for 3.3V logic level serial communication (rx, tx and GND)It is built with FT232r chip that its royalty-free VCP driver allow for communication as a standard COM port and D2XX direct drivers provide DLL application programming interface; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc. The original FT232 chip is embedded in the USB-A end; 6 way 0.1 header connector with VCC (5V power) and GND (ground), as well as RXD, TXD, RTS and CTS at 3V logic level.
Applications: Upgrading Legacy Peripherals to USBInterface Microcontroller UART or I/O, FPGA / PLD to USBAs a switching device in driving lamps and relaysReplace MAX232 type level shifters allowing for direct connection of products to PCUsed in processors of mini computers like DEC VAXIndustrial Control, USB Software, Hardware Encryption Dongle, printer, video display terminals, Oscilloscope, measurement device, microprocessor, light and remote controller, etc. USB to uart wire, entire USB protocol handled by the electronics in the cable; UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; Data transfer rates from 300 to 3M baud rate at TTL levels; Internal EEPROM with users writable area; Supply voltage comes from USB bus, no external supply required; UHCI / OHCI /
EHCI host controller compatibleInterfaces: USB 2.0 type A Male Port; 6 pin Female Socket headerSupports Windows 2008, XP, Vista, CE 4.2, 5.0 and 6.0, Windows 11, 7, 8, 8.1, 10; Mac, LinuxNOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on FT232 chip official websiteWhats Included1x Type A male USB to Serial TTL Level Converter Cable 6 ft1x Manual
Applications: Upgrading Legacy Peripherals to USBInterface Microcontroller UART or I/O, FPGA / PLD to USBAs a switching device in driving lamps and relaysReplace MAX232 type level shifters allowing for direct connection of products to PCUsed in processors of mini computers like DEC VAXIndustrial Control, USB Software, Hardware Encryption Dongle, printer, video display terminals, Oscilloscope, measurement device, microprocessor, light and remote controller, etc. USB to uart wire, entire USB protocol handled by the electronics in the cable; UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; Data transfer rates from 300 to 3M baud rate at TTL levels; Internal EEPROM with users writable area; Supply voltage comes from USB bus, no external supply required; UHCI / OHCI /
EHCI host controller compatibleInterfaces: USB 2.0 type A Male Port; 6 pin Female Socket headerSupports Windows 2008, XP, Vista, CE 4.2, 5.0 and 6.0, Windows 11, 7, 8, 8.1, 10; Mac, LinuxNOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on FT232 chip official websiteWhats Included1x Type A male USB to Serial TTL Level Converter Cable 6 ft1x Manual
