JUXINICE DB9 Female to Labeled Terminal Blocks Cable, 10FT/3M 26AWG Serial Extension for RS232 RS485 Communication, 9-Pin with Bare Wire Ends
- Humanized Wiring Design: Utilizes a single DB9 Female connector to bare wire cable, with each wire terminated by a red copper cold-pressed terminal and clearly marked with numerical labels (19); terminals are securely crimped to prevent loosening, ensuring convenient use.
- Wire Color Sequence: 1 Black, 2 Brown, 3 Red, 4 Orange, 5 Yellow, 6 Green, 7 Blue, 8 Gray, 9 White. The connection sequence is Pin 1 to Pin 1, Pin 2 to Pin 2, and so on, with each data line corresponding one-to-one.
- High-quality connector materials: DB9 connectors feature metal shells and copper core pins to ensure excellent insertion resistance and contact performance. The cable section features a black PVC shell for enhanced durability.
- Strong Anti-Interference Capability: The DB9 connector uses a metal housing and aluminum foil to effectively provide full-line anti-interference protection, ensuring signal transmission quality and stability.It includes 9 cores of 26AWG tinned copper and has an outer diamete
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

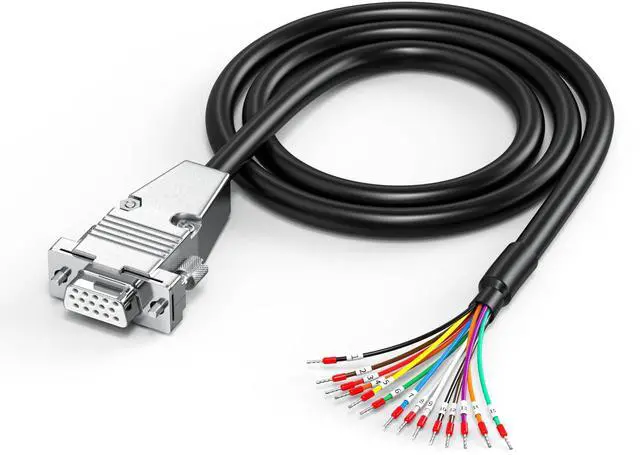

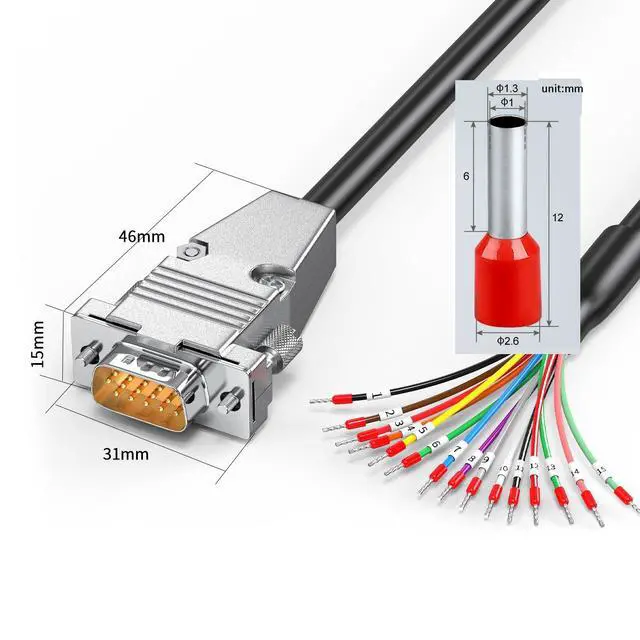

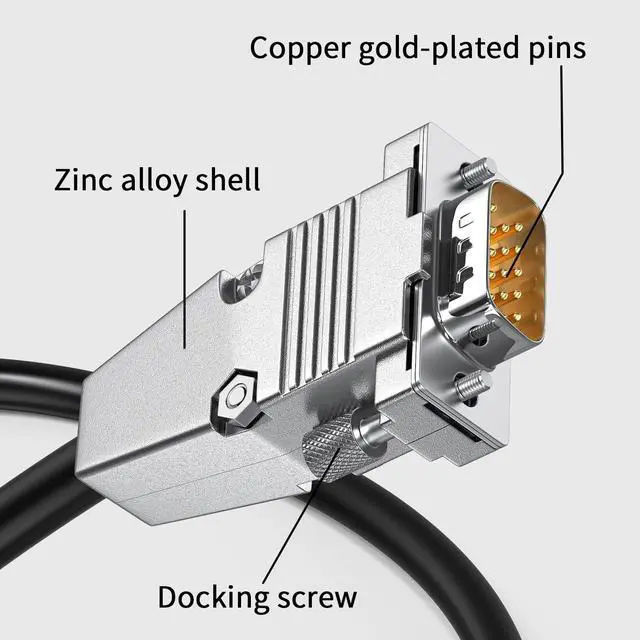

1. Clear identification of bare wire endsEach bare wire end of the HDB15 cable is equipped with a copper cold-pressed terminal, marked with numbers 1 to 15, for quick and accurate identification during wiring. 2. Securely crimped bare wire endsThe terminals are securely crimped and unlikely to come loose. 3. Metal connector housingThe HDB15 cable uses a metal connector housing, effectively enhancing the product's interference resistance, making it more durable and offering excellent value for money. 4. Excellent shielding performanceThe HDB15 serial cable uses aluminum foil shielding for strong interference resistance.

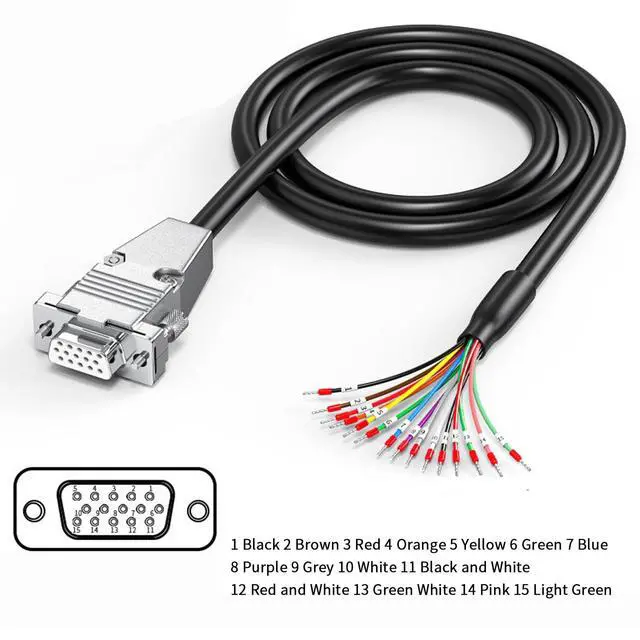

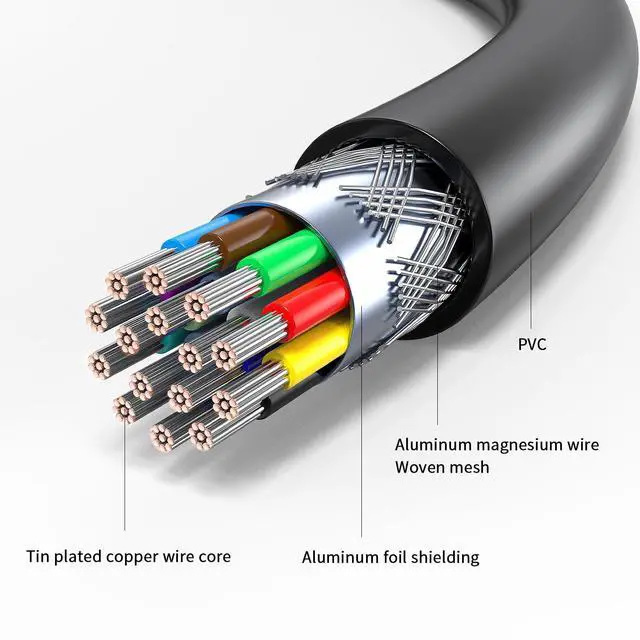

It includes 15 cores of 26 AWG tin-plated copper, with an outer diameter of 7.5 mm. 5. Wiring rules comply with industry standardsIt uses straight-through pin wiring (11 to 1515, one-to-one correspondence), strictly adhering to industry standards and meeting industry norms. 6. Wire color coding sequence1-Black, 2-Brown, 3-Red, 4-Orange, 5-Yellow, 6-Green, 7-Blue, 8-Purple, 9-Gray, 10-White, 11-Black-White, 12-Brown-White, 13-Pink, 14-Light Green, 15-Light Blue. 7. Supported ProtocolsSupports communication protocols such as RS232, RS485, and CAN-BUS, meeting the needs of various industrial data transmission scenarios.
8. Wide ApplicabilityThe HDB15 cable supports high-quality signal transmission between various devices, such as automatic control equipment, PDAs, computers, desktop computers, laptops, all-in-one computers, high-definition DVDs, digital cameras, video cameras, and high-definition digital televisions.
It includes 15 cores of 26 AWG tin-plated copper, with an outer diameter of 7.5 mm. 5. Wiring rules comply with industry standardsIt uses straight-through pin wiring (11 to 1515, one-to-one correspondence), strictly adhering to industry standards and meeting industry norms. 6. Wire color coding sequence1-Black, 2-Brown, 3-Red, 4-Orange, 5-Yellow, 6-Green, 7-Blue, 8-Purple, 9-Gray, 10-White, 11-Black-White, 12-Brown-White, 13-Pink, 14-Light Green, 15-Light Blue. 7. Supported ProtocolsSupports communication protocols such as RS232, RS485, and CAN-BUS, meeting the needs of various industrial data transmission scenarios.
8. Wide ApplicabilityThe HDB15 cable supports high-quality signal transmission between various devices, such as automatic control equipment, PDAs, computers, desktop computers, laptops, all-in-one computers, high-definition DVDs, digital cameras, video cameras, and high-definition digital televisions.
