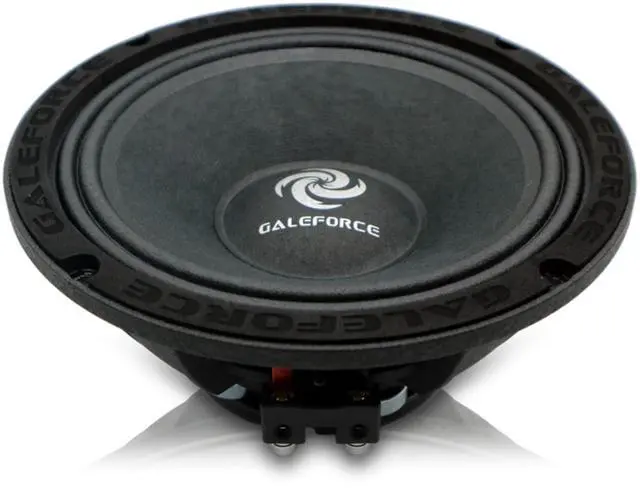

Galeforce G3 8" 200 W RMS 8-Ohm Neodymium Competition Midrange Speaker
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications Speaker Size: 8 inches
Power Handling: 200W
RMS Impedance: 8 ohms
Sensitivity: 95 dB 3dB
Frequency Range: 94 - 5.5KH z
Voice Coil Diameter: 49.5 mm Voice
Coil Length: 11 mm
Air Gap Height: 7mmThiele
& Small Parameters: Resonant
Frequency,
FS: 94Hz D. C. Voice Coil resistance, RE: 6 ohm Mechanical quality factor, Qms: 31.89 Electrical quality factor, Qes: 0.45 Total quality factor, Qts: 0.45 Equivalent air volume to Cms, Vas: 9.16L Mechanical compliance, CMS: 0.15 mm/N Mechanical resitance, Rms: 0.36 kg/s BL factor, BI: 12.27N /A Effective surface area, Sd: 0.021 m2 Linear Excursion, Xmax:
2mmMaterials:
Basket: Die cast aluminium
Cone and dust cap: Paper
Surround: Treated cloth
Voice coil wire: CCAW
Voice coil bobbin: Kapton
Magnet:
NdFeBMeasurements: Overall
diameter: 8.26"
Bolt Circle Diameter: 7.75"
Baffle cutour diameter: 7.24"
Depth: 3.30"
Weight: 3.93 lbs
Power Handling: 200W
RMS Impedance: 8 ohms
Sensitivity: 95 dB 3dB
Frequency Range: 94 - 5.5KH z
Voice Coil Diameter: 49.5 mm Voice
Coil Length: 11 mm
Air Gap Height: 7mmThiele
& Small Parameters: Resonant
Frequency,
FS: 94Hz D. C. Voice Coil resistance, RE: 6 ohm Mechanical quality factor, Qms: 31.89 Electrical quality factor, Qes: 0.45 Total quality factor, Qts: 0.45 Equivalent air volume to Cms, Vas: 9.16L Mechanical compliance, CMS: 0.15 mm/N Mechanical resitance, Rms: 0.36 kg/s BL factor, BI: 12.27N /A Effective surface area, Sd: 0.021 m2 Linear Excursion, Xmax:
2mmMaterials:
Basket: Die cast aluminium
Cone and dust cap: Paper
Surround: Treated cloth
Voice coil wire: CCAW
Voice coil bobbin: Kapton
Magnet:
NdFeBMeasurements: Overall
diameter: 8.26"
Bolt Circle Diameter: 7.75"
Baffle cutour diameter: 7.24"
Depth: 3.30"
Weight: 3.93 lbs
