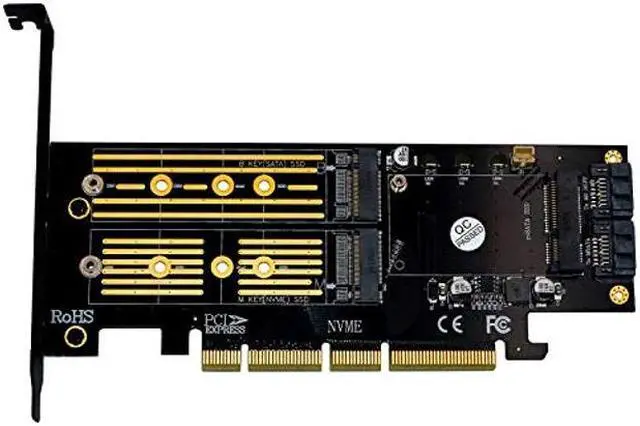

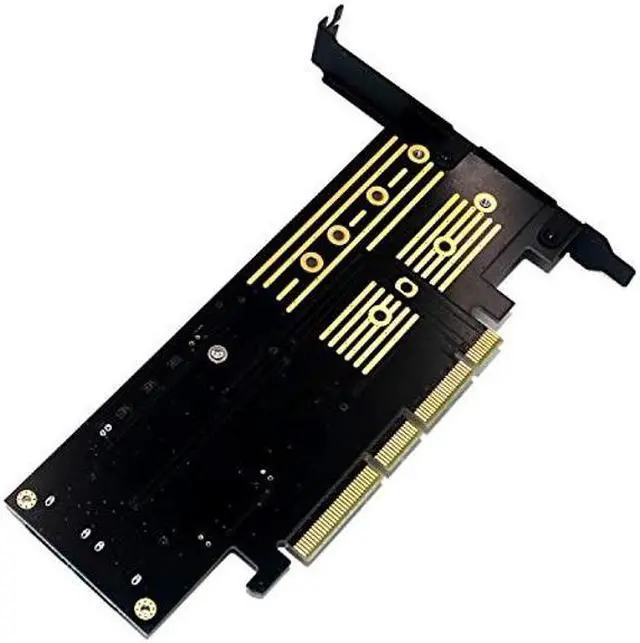

Dual M.2 SSD NVME (m Key) or SATA (b Key) to PCI-e 3.0 x 4 Host Controller Expansion Card with Low Profile Bracket and Heatsink for Desktop
- Supports one M.2 PCIe (NVMe or AHCI) SSD and a second M.2 SATA 6Gbps SSD simultaneously.
- Supports M.2 form factors 2230, 2242, 2260 ,2280 and22110.
- Converts one M.2 (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible). Converts one M.2 (B Key) interface to SATA 6Gbps interface (SATA connection required). No drivers required. Booting possible from M.2 NVMe SSD with compatible motherboards with supported BIOS. Intel 9 series and above chipset motherboards support booting from PCIe. This adapter card is a passive device so OS and System compatibility solely depends on SSD model used.

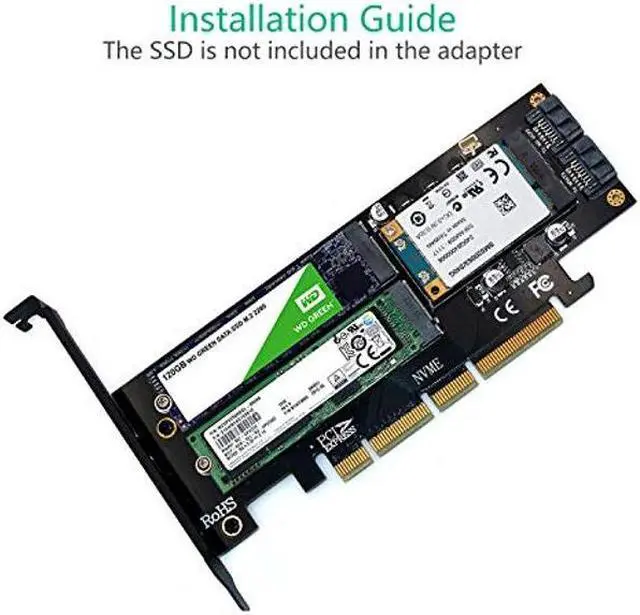

- Low profile bracket, SATA Cable and complete tool kit included for an effortless install Please Note: For installing the adapter card an empty PCIe 3.0 or 2.0 spec X4 slot should be available free in the motherboard. For installing SATA M.2 SSD, an empty SATA port should be available in the motherboard and the provided SATA cable should be used to connect the card to the motherb
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Supports one M. 2PCIe (NVMe or AHCI) SSD and one M. 2 SATA 6Gbps SSD simultaneously
Supports PCIEM. 2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth
SupportsSATA-based M. 2 SSD (Key-B / B+M), SATA 6 Gbps bandwidth
Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
Supports any OS like Windows, Mac and Linux
PCB 24 X 5copper hole effective ventilation heat dissipation, Including 2 heat sinks
Transparent tothe operating system and no driver required
Compliant with39Gbps PCI Express 3.0
NOTE:
^You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M. 2 SATA SSD (Key B). (SATA Cable Has Been Included)
^You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.
Package list
- M. 2 to PCIExpress Adapter Card x1
- Regular/Low Profile PCIe Bracket x2
- Aluminum Heatsink x2
- Heatconducting silica gel pad x2

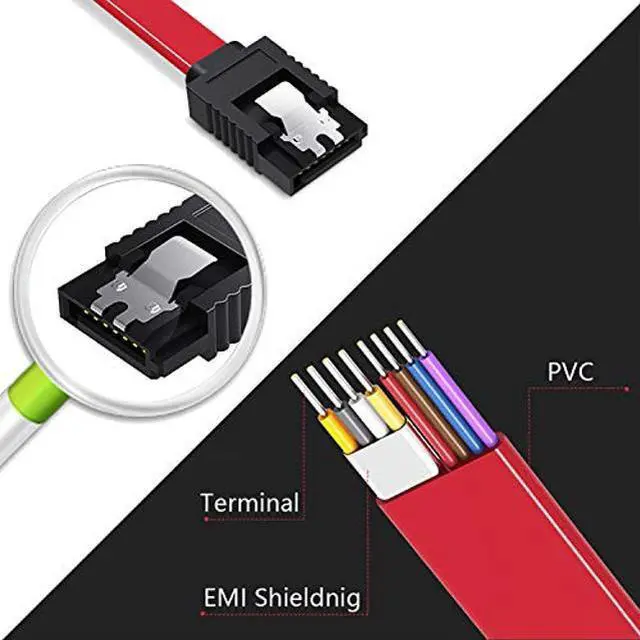

- SATA Cable x1
- Screwdriver x1
- Screw kit x1
Supports one M. 2PCIe (NVMe or AHCI) SSD and one M. 2 SATA 6Gbps SSD simultaneously
Supports PCIEM. 2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth
SupportsSATA-based M. 2 SSD (Key-B / B+M), SATA 6 Gbps bandwidth
Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
Supports any OS like Windows, Mac and Linux
PCB 24 X 5copper hole effective ventilation heat dissipation, Including 2 heat sinks
Transparent tothe operating system and no driver required
Compliant with39Gbps PCI Express 3.0
NOTE:
^You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M. 2 SATA SSD (Key B). (SATA Cable Has Been Included)
^You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.
Package list
- M. 2 to PCIExpress Adapter Card x1
- Regular/Low Profile PCIe Bracket x2
- Aluminum Heatsink x2
- Heatconducting silica gel pad x2
- SATA Cable x1
- Screwdriver x1
- Screw kit x1
