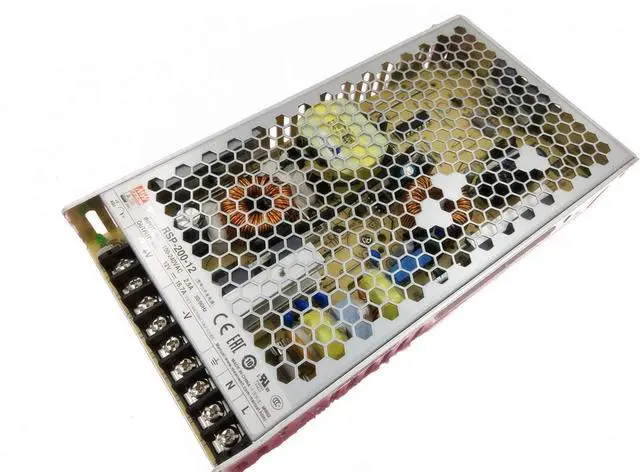

Meanwell RSP-200-12 Power Supply - 200W 12V 16.7A - Low Profile

Output Voltage: 12V
Approx. Wattage: 200W
Protections: Short circuit / Overload / Over voltage / Over temperature
Warranty: 3 Years Warranty

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Features:
Ultra low profile: 30mm
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in active PFC function
Cooling by free air convection
LED indicator for power on
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range: 88~264VAC; 124~370VDC
AC inrush current (max. ): 40A at 230VAC
DC adjustment range: ±10% rated output voltage
Overload protection Range: 105%~150%
Overload protection Type: Hiccup mode, auto-recovery
Over voltage protection Range: 115%~145%
Over voltage protection Type: Shut down O/P voltage, re-power on to recover
Withstand voltage:
I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -30~+70°C (refer to output derating curve)
Safety standards: UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards: EN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, GB9254
Connection: 9P / 9.5 mm pitch terminal block
Dimension (LxWxH): 215x115x30
