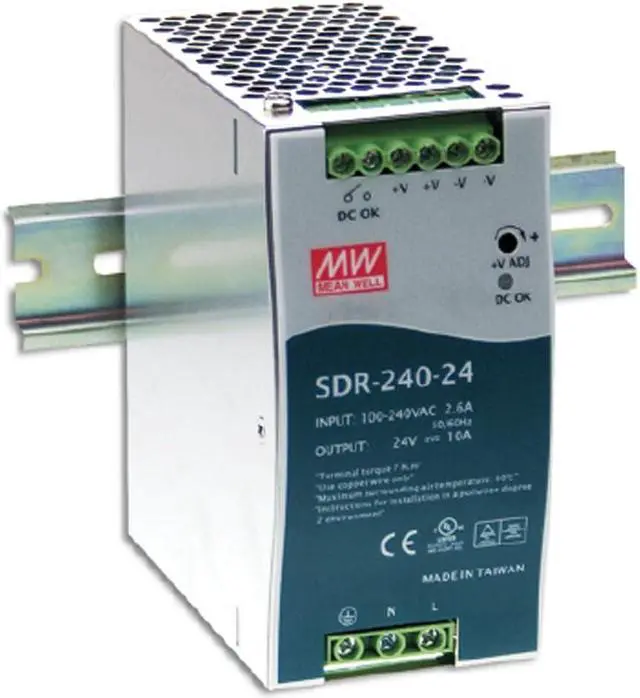

MEAN WELL SDR-240-24 AC to DC DIN-Rail Power Supply, 24V, 10 Amp, 240W, 1.5" - 2081086
- Universal Ac Input Range
- Protections: Short-Circuit, Overload, Overvoltage, Over temperature
- 100% Full Load Burn-In Test
- Country of origin: China
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
240W Din-Rail Switching Power Supply24 Volts @ 10
Amps
Input Range Protections: Short-Circuit, Overload, Overvoltage, Over temperature 100% Full Load Burn-In Test Soft-Start Circuit, Limiting Ac Surge
Current Input Voltage: 88-264Vac @ 47-63Hz, Or 124-370Vdc Input Current @
Full Load: 2.6A (115V) / 1.3A (230V)

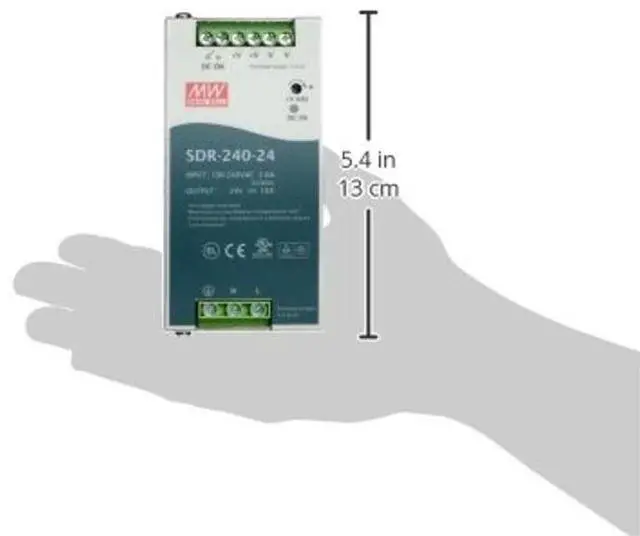

Size: 2.5" X 4.9" X 4.5"
Weight: 2.5 Lbs.
Amps
Specifications
: Universal AcInput Range Protections: Short-Circuit, Overload, Overvoltage, Over temperature 100% Full Load Burn-In Test Soft-Start Circuit, Limiting Ac Surge
Current Input Voltage: 88-264Vac @ 47-63Hz, Or 124-370Vdc Input Current @
Full Load: 2.6A (115V) / 1.3A (230V)
Size: 2.5" X 4.9" X 4.5"
Weight: 2.5 Lbs.
