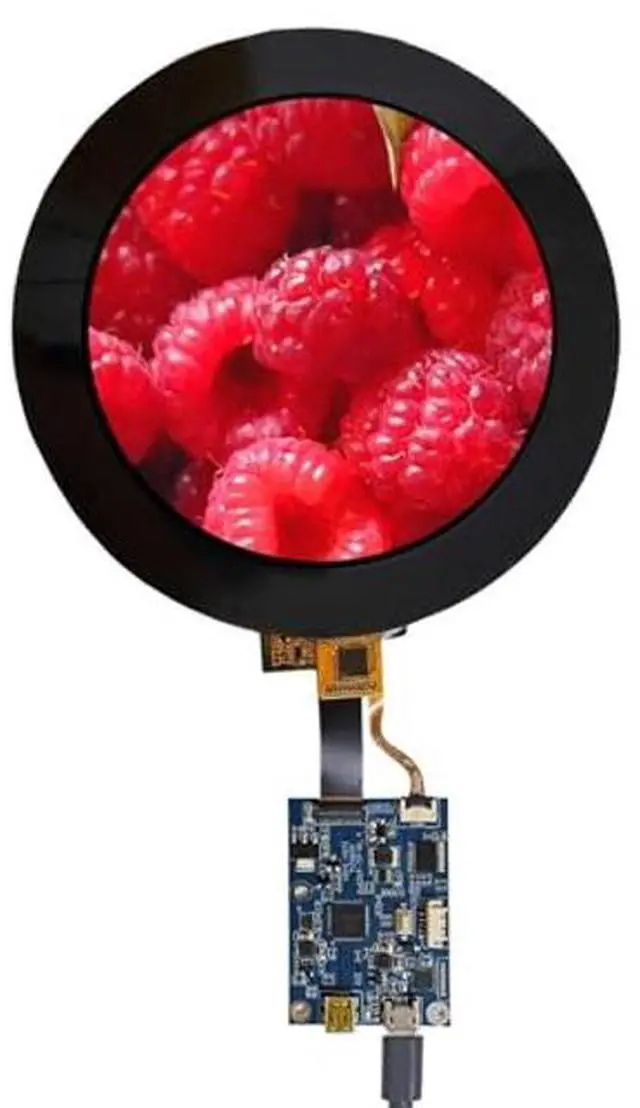

FanyiTek 4" 4 inch 720x720 300nit IPS MIPI LCD Round Touch Screen and Controller Board 31 pins
- [(Round MIPI screen)] 4" IPS full viewing angle,Great resolution 720x720,outline size:105.6x109.87x2.13(WxHxD)mm,display area:101.52x 101.52(WxH)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Controller board)] Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.

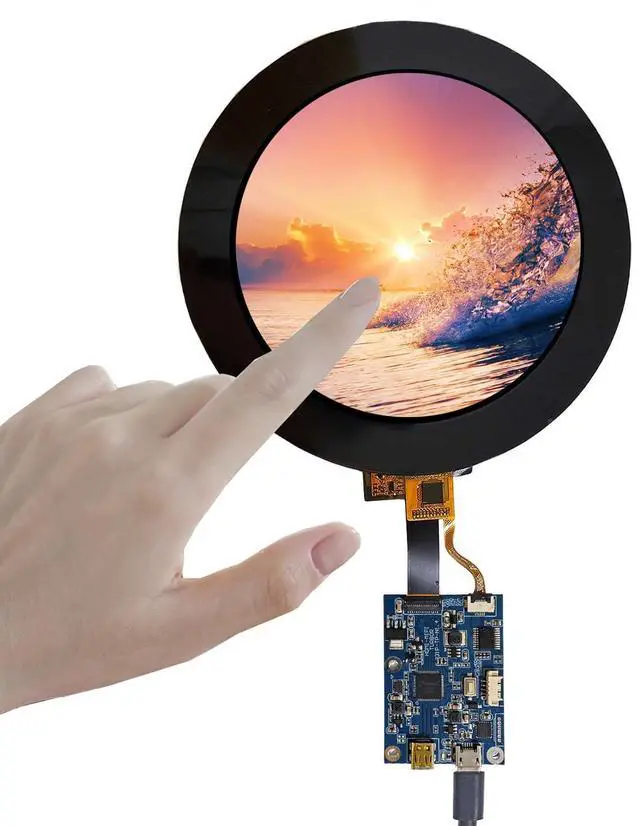

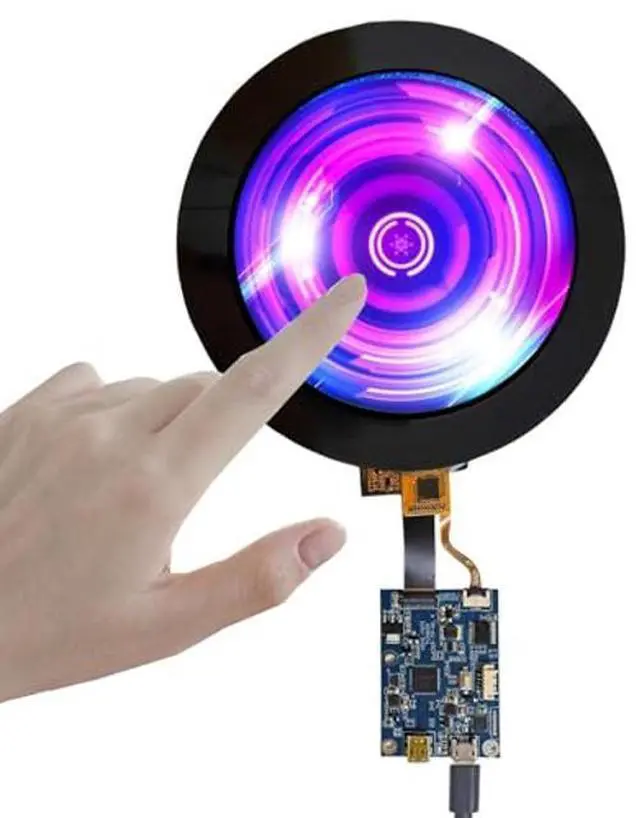

- [(Capacitive Touch sensor panel)] The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

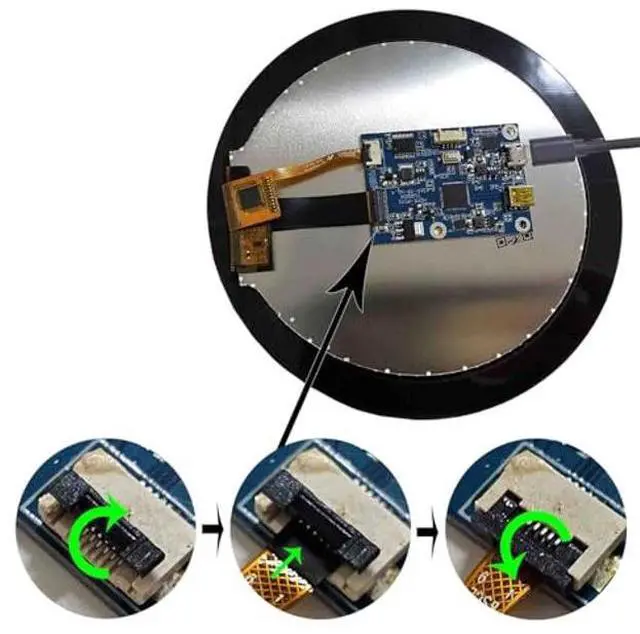

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
4" VS40016C31 720X720 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 720 (RGB) x720
Outline Size 132.6 x 132.6 x4 (WxHxD) mm
Display Area 101.52 x 101.52 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1ch, 8-bit), 31 pins
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x LCD Board
1x4inch VS40016C31 720x720 Capacitive Touch LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
4" VS40016C31 720X720 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 720 (RGB) x720
Outline Size 132.6 x 132.6 x4 (WxHxD) mm
Display Area 101.52 x 101.52 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1ch, 8-bit), 31 pins
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x LCD Board
1x4inch VS40016C31 720x720 Capacitive Touch LCD Screen
