ELP Global Shutter USB Camera Module High Speed with Wide Angle Lens for Computer 1080P Mini UVC USB2.0 Webcam Board High Frame 90fps PC Camera for Laptop (100deg no Distortion Lens)
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
- HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6" Aptina AR0234 high quality sensor for sharp clear image.

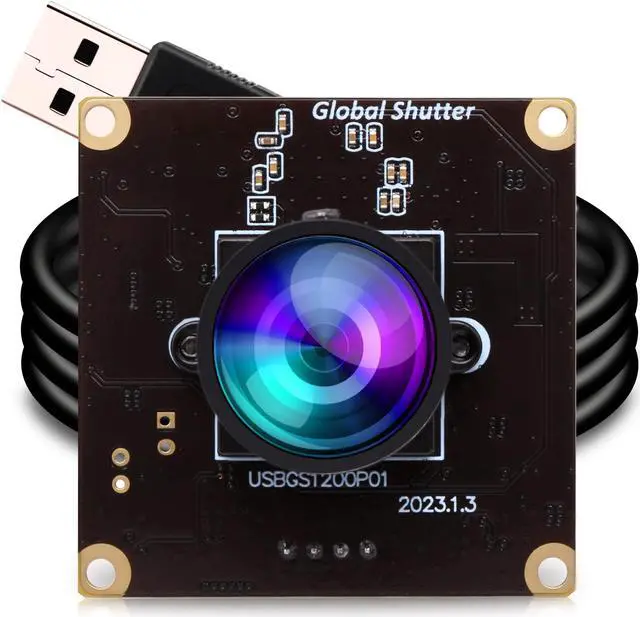

- Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be used in machine visions for personal or industrial.

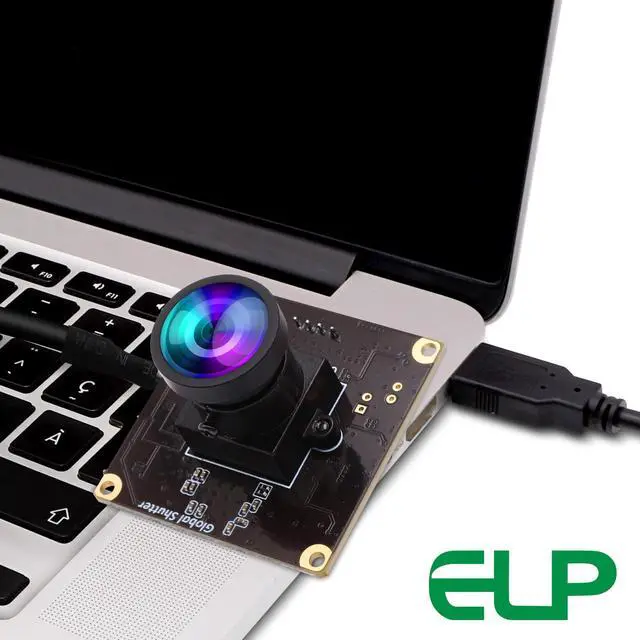

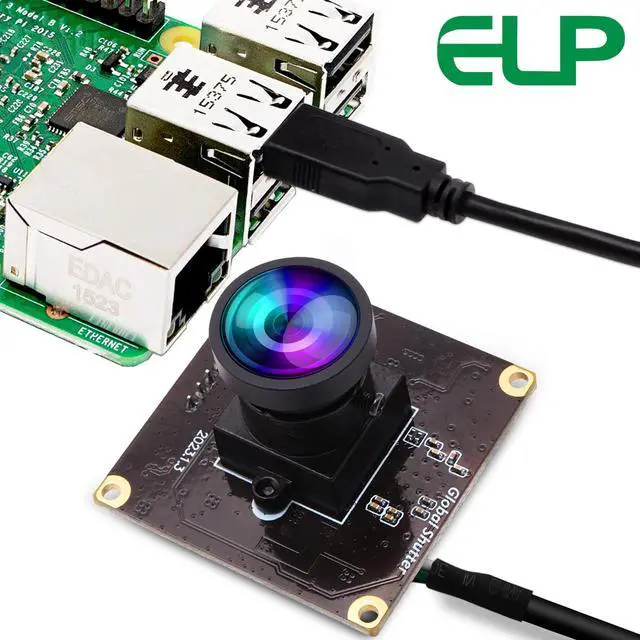

- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs iris and physiognomy recognition, depth and motion detection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: ELP-USBGS1200P01
Sensor: Aptina AR0234 (1/ 2.6" ) Global Shutter
Max Resolution: 1920 (H) *1200 (V)
Lens Size: 1/ 2.6 inch ( 4:3 )
Pixel Size: 3.0 mm
Compression Format: MJPEG / YUV2 (YUYV)
Resolution & Frame rate:
1920x1200@90fps MJPEG/1920x1080@90fps MJPEG
1600x1200@90fps MJPEG/1280x960@90fps MJPEG
1280x720@90fps MJPEG/1024x768@90fps MJPEG
960x720@90fps MJPEG/800x600@90fps MJPEG
640x480@90fps MJPEG/320x240@90fps MJPEG
Surface Mount Technology SMT
Focus: Fixed
Central Definition: 600LW/PH (Center)
S/N Ratio: 37dB
Dynamic Range: 70dB
Sensitivity: 1.4V /lux-sec@550nm
Mini Illumination: 0.3 lux
Shutter: Global Shutter
Interface: USB 2.0 High Speed
AEC Support/AWB Support/AGC Support
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters: HD 2.1 mm lens
Optional 3.6 mm/ 2.8 mm/ 2.9 mm/6mm/8mm/12mm/16mm/25mm...
No Distortion Lens (FOV 65~130 degree optional)
Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P- 2.0 mm socket
Power Supply: USB BUS POWER 4P- 2.0 mm socket
Operating Voltage; DC5V
Working Current: 160mA- 190mA
Dimension: 38mmx38mm
Storage Temperature: -20degC to 80degC
Working Temperature: 0degC to 60degC
USB Cable: 1M
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux- 2.6. 26)
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
Sensor: Aptina AR0234 (1/ 2.6" ) Global Shutter
Max Resolution: 1920 (H) *1200 (V)
Lens Size: 1/ 2.6 inch ( 4:3 )
Pixel Size: 3.0 mm
Compression Format: MJPEG / YUV2 (YUYV)
Resolution & Frame rate:
1920x1200@90fps MJPEG/1920x1080@90fps MJPEG
1600x1200@90fps MJPEG/1280x960@90fps MJPEG
1280x720@90fps MJPEG/1024x768@90fps MJPEG
960x720@90fps MJPEG/800x600@90fps MJPEG
640x480@90fps MJPEG/320x240@90fps MJPEG
Surface Mount Technology SMT
Focus: Fixed
Central Definition: 600LW/PH (Center)
S/N Ratio: 37dB
Dynamic Range: 70dB
Sensitivity: 1.4V /lux-sec@550nm
Mini Illumination: 0.3 lux
Shutter: Global Shutter
Interface: USB 2.0 High Speed
AEC Support/AWB Support/AGC Support
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters: HD 2.1 mm lens
Optional 3.6 mm/ 2.8 mm/ 2.9 mm/6mm/8mm/12mm/16mm/25mm...
No Distortion Lens (FOV 65~130 degree optional)
Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P- 2.0 mm socket
Power Supply: USB BUS POWER 4P- 2.0 mm socket
Operating Voltage; DC5V
Working Current: 160mA- 190mA
Dimension: 38mmx38mm
Storage Temperature: -20degC to 80degC
Working Temperature: 0degC to 60degC
USB Cable: 1M
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux- 2.6. 26)
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
