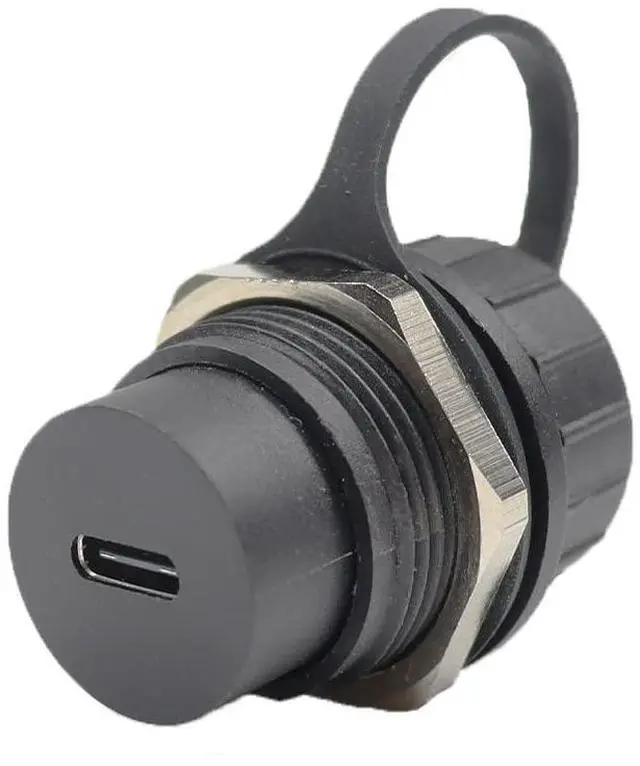

ANMBEST 5PCS USB 3.1 TYPE C Panel Mounting Waterproof Connector, IP67 24 Pins Female to Female PA6BG33 Housing Double Head Adapter with Waterproof/Dust Cap
- Usage: USB Type C 3.1 Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments.

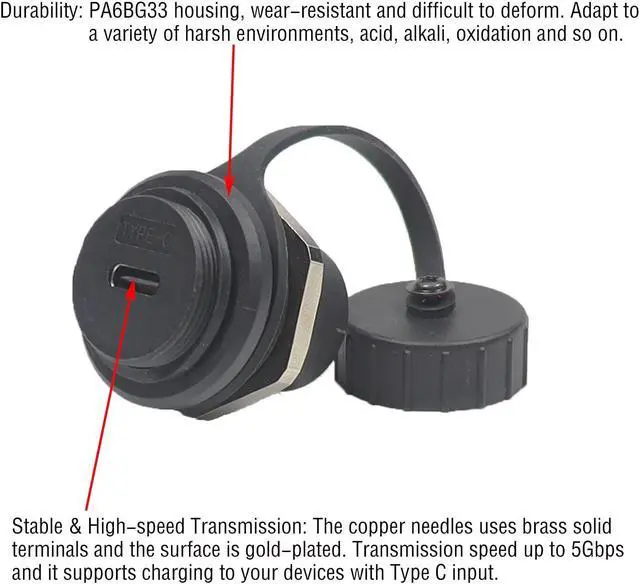

- Durability: PA6BG33 housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
- Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with Type C input.
- EASY INSTALLATION: No soldering, no installation tools, just plug the standard type-c head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The TYPE C signal panel connector is a Female/Female Couple. Using the standards based TYPE C connection system insures compatibility with existing hardware. The coupler maintains the continuity offering protection from EMI/RFI interference.
Number of cores: 24 PIN
Waterproof rating: IP67(with Waterproof/Dust Cap)
Connection type: TYPE-C
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~7mm

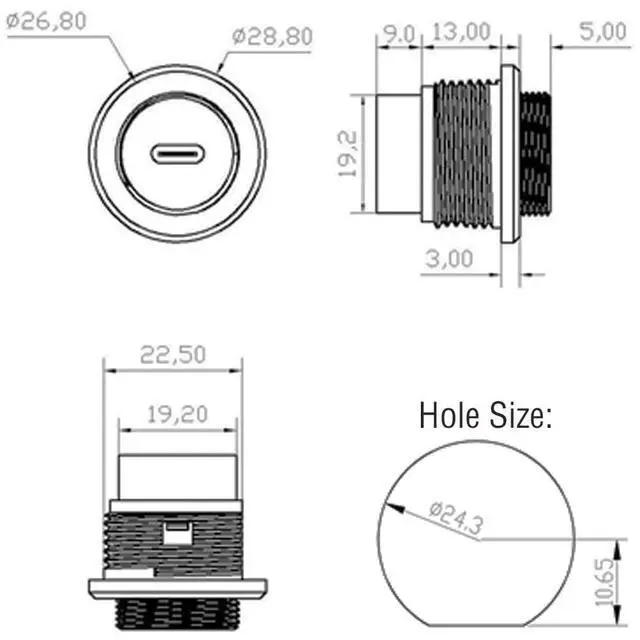

Mounting Hole Size: 24mm
Thread size: 24* 1.5
Connector transmission classification: USB 3.1
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: >500MO
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: <10MO
Material:
Shell: PA6BG33
Socket contact pin: phosphor copper
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps.
Package Included:
5x Waterproof TYPE C Connector
5x Waterproof/Dust Cap Cover
Specifications
:Number of cores: 24 PIN
Waterproof rating: IP67(with Waterproof/Dust Cap)
Connection type: TYPE-C
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~7mm
Mounting Hole Size: 24mm
Thread size: 24* 1.5
Connector transmission classification: USB 3.1
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: >500MO
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: <10MO
Material:
Shell: PA6BG33
Socket contact pin: phosphor copper
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps.
Package Included:
5x Waterproof TYPE C Connector
5x Waterproof/Dust Cap Cover
