ENIANHUA Mini Industrial 5 Port RJ45 10/100/1000BASE-T Ethernet Switch + 1 1000Base-X SFP Slot, Din Rail Mount or Wall Mounts, Support 9~56V DC Unmanaged Network Switch, 14Gbps Switching Capacity
- [(6 Port Gigabit Industrial Switch)] This network switch includes 5-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function, 1 SFP Fiber Slota, 1000Base-X, support 10/100/1000Mbps adaptive, compliant with IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x ethernet standards
- [(9~56V DC Power Input)] Our Network Switch supports redundant backup dual 9~56VDC wide voltage input, making the power supply more flexible; Power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V; However, for the stability of the work, 12V/1A power supply and above are recommended (Power Supply not Included)
- [(Plug and Play)] It don't need any configuration, fanless design, quiet operation, suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy and other industrial scenarios which needs Ethernet access
- [(Sturdy Case)] The shell is made of industrial-grade aluminum alloy, which is more sturdy, surface groove design, bette
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description:

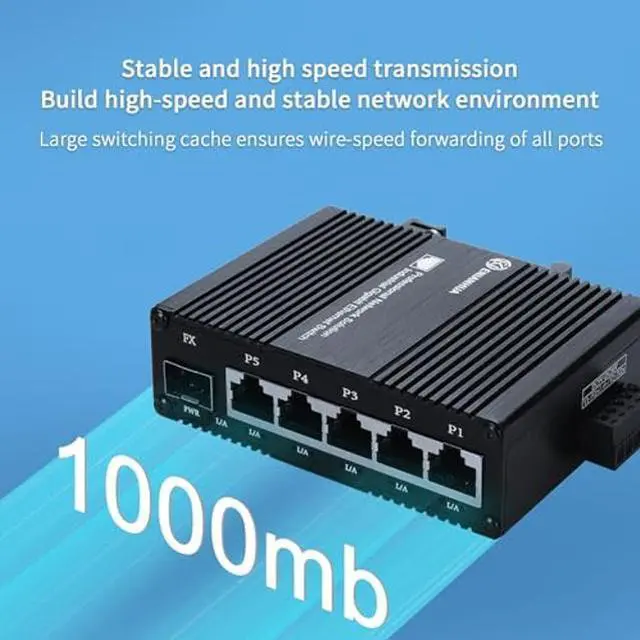

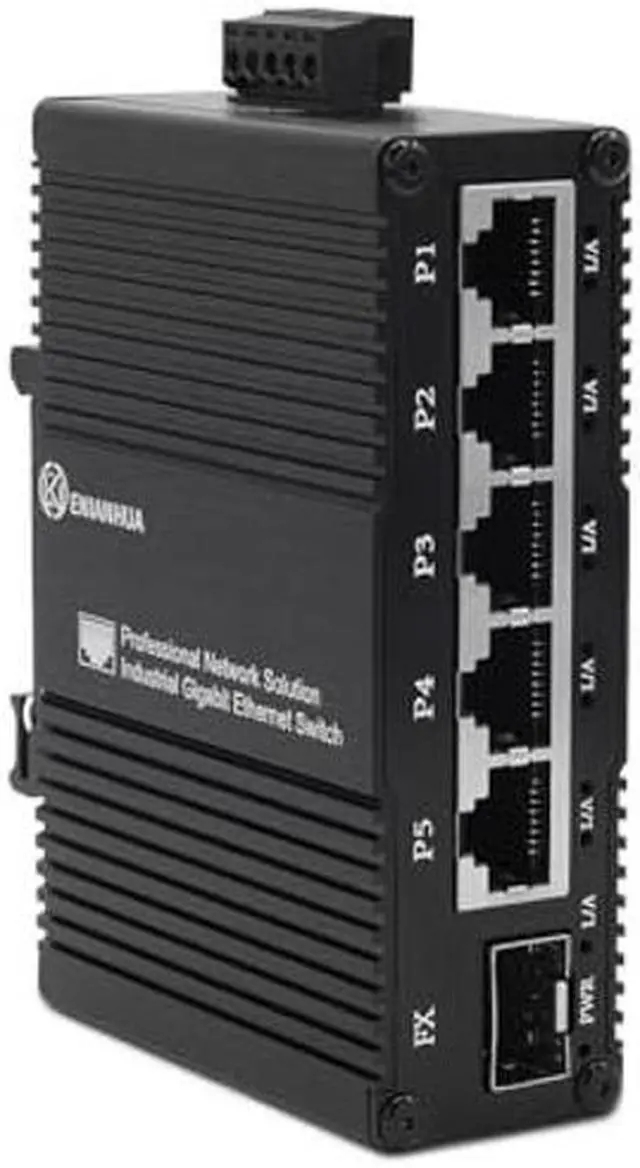

Mini industrial grade Gigabit 1 optical and 5 electrical SFP port switch, including 1 Gigabit SFP slot and 5 10/100/1000M adaptive RJ45 electrical port.
The Industrial Ethernet Switch features a high-strength IP40 protective casing, and supports redundant power supply to enhance the reliability of communication networks and meets EN55022 standard. Industrial-grade EMC design, with wide operating temperature range from -40degC to 75degC. The Ethernet port supports both half-duplex and full-duplex mode. It possesses characteristics such as resistance to high and low temperatures, vibration, corrosion, and electromagnetic interference. Industrial switch support DIN rail or wall mounted installation to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Product Feature:
The switch feature power redundancy design with overload current protection for enhanced reliability.
A dual power input allows for a redundant power supply to ensure the network keeps running in the event of a primary power supply failure. They can provide redundant mechanisms for critical equipment that needs to be connected at all times.
10/100/1000Base Tx electrical port 100/Gigabit adaptive.
The electrical interface supports full/half duplex mode MDI/MDI-X automatic detection.
Optical port supports single mode, multimode, single fiber, and dual fiber.
Power supply supports overload protection and anti reverse connection protection.
Industrial grade guide rail body design, designed specifically for harsh and demanding industrial environments, while supporting wall mounted installation.
Working temperature -40 ~+75 / -40degF to 167deg F
Supports 9~56VDC wide voltage input. (Non-PoE)
Supports 12~56VDC wide voltage input. (PoE)
Fanless & Silent Operation
The switch features with fanless design that ensures noiseless operation and greater reliability over time.
Compact Size
Compact dimension (100mm * 70mm * 30mm). This small design makes these sensors interesting for room or outdoor critical applications.
Easy to Use

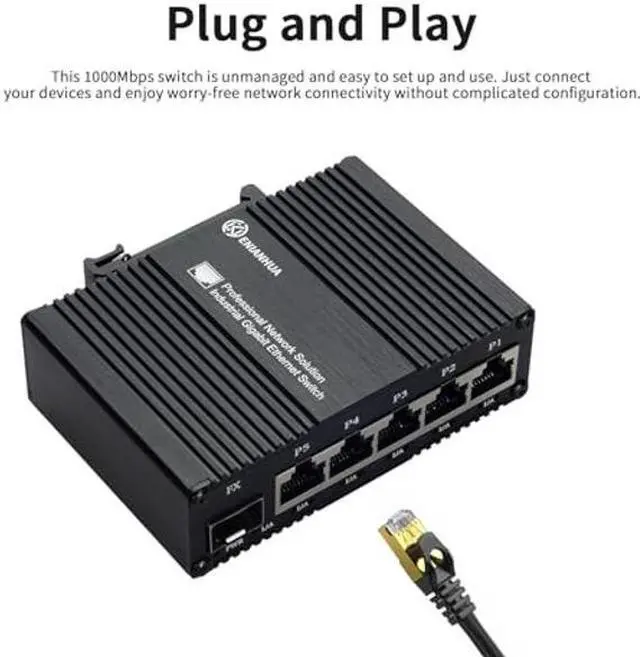

You can plug and play immediately with your network. There's no need to set anything up, and it has the unique LED indicator design, you can check working status quickly.
Package Contents:
-ENIANHUA Switch x1
-User Manual x1
-Wall-Mount Kit x1
Mini industrial grade Gigabit 1 optical and 5 electrical SFP port switch, including 1 Gigabit SFP slot and 5 10/100/1000M adaptive RJ45 electrical port.
The Industrial Ethernet Switch features a high-strength IP40 protective casing, and supports redundant power supply to enhance the reliability of communication networks and meets EN55022 standard. Industrial-grade EMC design, with wide operating temperature range from -40degC to 75degC. The Ethernet port supports both half-duplex and full-duplex mode. It possesses characteristics such as resistance to high and low temperatures, vibration, corrosion, and electromagnetic interference. Industrial switch support DIN rail or wall mounted installation to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Product Feature:
The switch feature power redundancy design with overload current protection for enhanced reliability.
A dual power input allows for a redundant power supply to ensure the network keeps running in the event of a primary power supply failure. They can provide redundant mechanisms for critical equipment that needs to be connected at all times.
10/100/1000Base Tx electrical port 100/Gigabit adaptive.
The electrical interface supports full/half duplex mode MDI/MDI-X automatic detection.
Optical port supports single mode, multimode, single fiber, and dual fiber.
Power supply supports overload protection and anti reverse connection protection.
Industrial grade guide rail body design, designed specifically for harsh and demanding industrial environments, while supporting wall mounted installation.
Working temperature -40 ~+75 / -40degF to 167deg F
Supports 9~56VDC wide voltage input. (Non-PoE)
Supports 12~56VDC wide voltage input. (PoE)
Fanless & Silent Operation
The switch features with fanless design that ensures noiseless operation and greater reliability over time.
Compact Size
Compact dimension (100mm * 70mm * 30mm). This small design makes these sensors interesting for room or outdoor critical applications.
Easy to Use
You can plug and play immediately with your network. There's no need to set anything up, and it has the unique LED indicator design, you can check working status quickly.
Package Contents:
-ENIANHUA Switch x1
-User Manual x1
-Wall-Mount Kit x1
