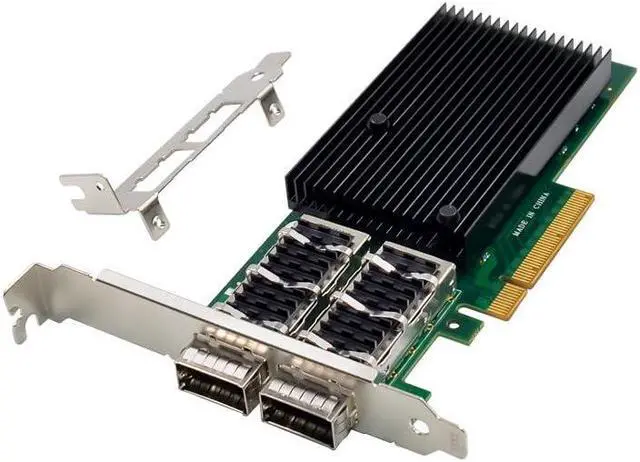

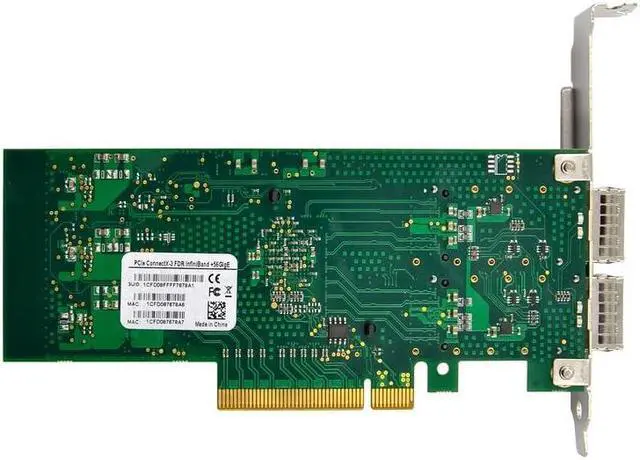

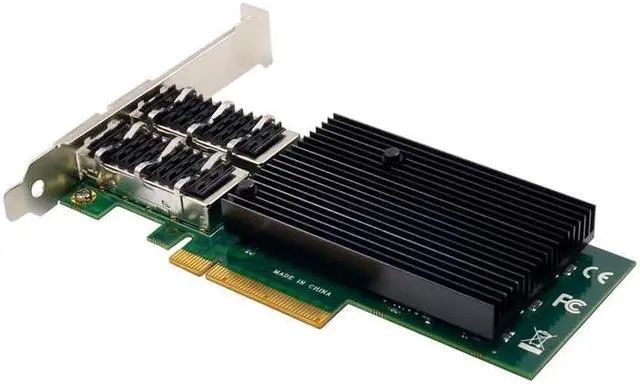

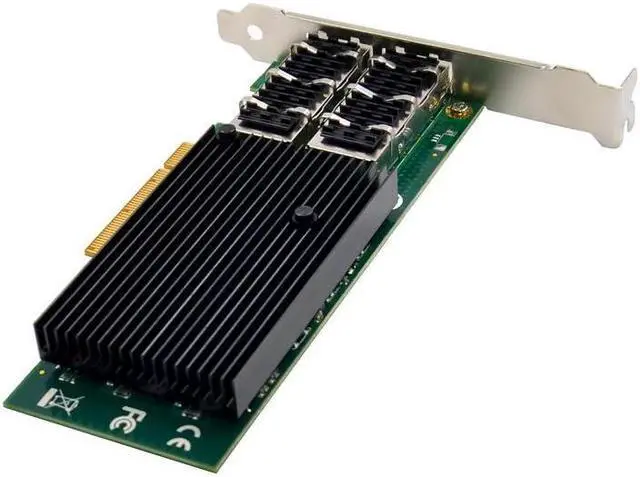

HINYSENO PCIe x8 Dual QSFP 56G SFP28 Ethernet PCI Express x8 Network Cards Adapter with Mellanox Connect X-3 LX Chipset
- PCIe x8 Mellanox Connectx-3 Dual-Port 56G QSFP adapter with PCI Express 3.0 deliver high-bandwidth and industry-leading Ethernet connectivity for performance-driven server and storage applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments
- Clustered databases, web infrastructure, and high frequency trading are just a few applications that will achieve significant throughput and latency improvements resulting in faster access, real-time response and more users per server.
- ConnectX-3 EN improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments.
- PCI-Express host interface specification v3.0 x8 and Complete with PCIe2.0 and 1.1
- Supports Operation Systems: FreeBSD, Linux5.x and above, VMware5.5/6.0/6.5/6.7, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10/win11 32 or 64bit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Two 56 Gigabit QSFP+ Ethernet ports
Compliant with QSFP+ MSA Spec Rev 1.0
Two QSFP ports supporting FDR-14 InfiniBand or 56Gb Ethernet
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)
Virtual protocol interconnect (VPI)
InfiniBand Architecture specification v 1.2. 1 compliant
IEEE Std. 802.3 compliant
Support for SFP+ cables available through QSA (Quad to Serial)
CORE-Direct*R application off-load
GPUDirect application off-load
RDMA over converged Ethernet (RoCE)
End-to-End QoS and congestion control
TCP/UDP/IP stateless off-load
Ethernet encapsulation (EoIB)
SR-IOV support; 16 virtual functions supported by KVM and Hyper-V (OS dependant ) up to a maximum 127 virtual functions supports by the adapter
Enables low latency RDMA over 56GbEthernet (supported with both non-virtualized and SR-IOV enable virtualized servers)--latency as low as 1us
Traffic steering across multiple cores
Microsoft VMQ/VMware Net Queue support
Industry-leading throughput and latency performance
Legacy and UEFI PXE network boot support
Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
Package content 1 x PCIe x8 Mellanox Connectx-3 Dual-Port 56G QSFP adapter
1 x User's Manual
1 x CD Driver
1 x Low profile bracket
Two 56 Gigabit QSFP+ Ethernet ports
Compliant with QSFP+ MSA Spec Rev 1.0
Two QSFP ports supporting FDR-14 InfiniBand or 56Gb Ethernet
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)
Virtual protocol interconnect (VPI)
InfiniBand Architecture specification v 1.2. 1 compliant
IEEE Std. 802.3 compliant
Support for SFP+ cables available through QSA (Quad to Serial)
CORE-Direct*R application off-load
GPUDirect application off-load
RDMA over converged Ethernet (RoCE)
End-to-End QoS and congestion control
TCP/UDP/IP stateless off-load
Ethernet encapsulation (EoIB)
SR-IOV support; 16 virtual functions supported by KVM and Hyper-V (OS dependant ) up to a maximum 127 virtual functions supports by the adapter
Enables low latency RDMA over 56GbEthernet (supported with both non-virtualized and SR-IOV enable virtualized servers)--latency as low as 1us
Traffic steering across multiple cores
Microsoft VMQ/VMware Net Queue support
Industry-leading throughput and latency performance
Legacy and UEFI PXE network boot support
Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
Package content 1 x PCIe x8 Mellanox Connectx-3 Dual-Port 56G QSFP adapter
1 x User's Manual
1 x CD Driver
1 x Low profile bracket
