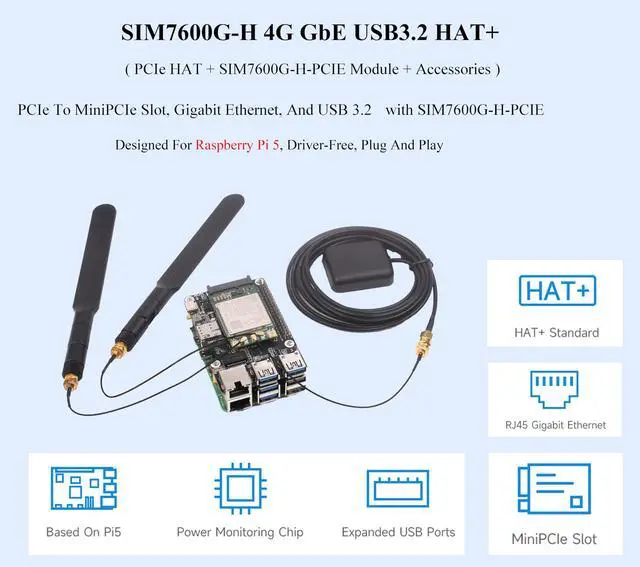

PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5, HAT+ Standard, Support Global Band 4G/3G/2G and GNSS Positioning, Support Multi-System, Comes with SIM7600G-H-PCIE 4G Module

This adapter board supports converting the PCIe interface to USB 3.2, MiniPCIe and Gigabit ETH, which is compatible with Raspberry Pi 5. It comes with SIM7600G-H-PCIE 4G Module, Support Global band 4G / 3G / 2G and GNSS Positioning, Support Multi-System.
( This is SIM7600G-H-PCIE 4G Module with PCIe TO MiniPCIe GbE USB 3.2 HAT+ Adapter Board )

Features

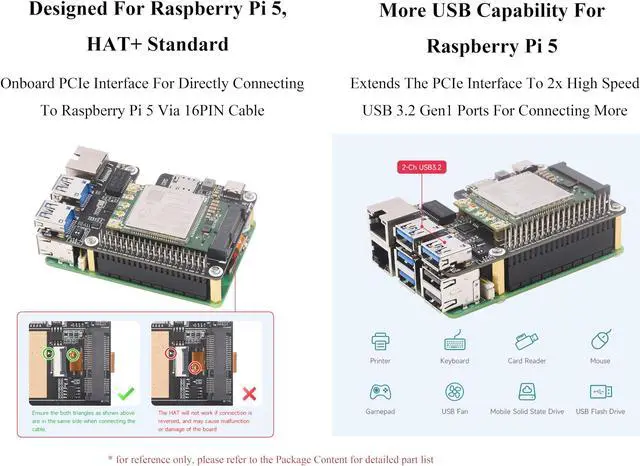

1. Designed for Pi 5, with HAT+ standard, Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable, and support 40pin GPIO header for stacking and expansion

2. More USB Capability For Raspberry Pi 5--- Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

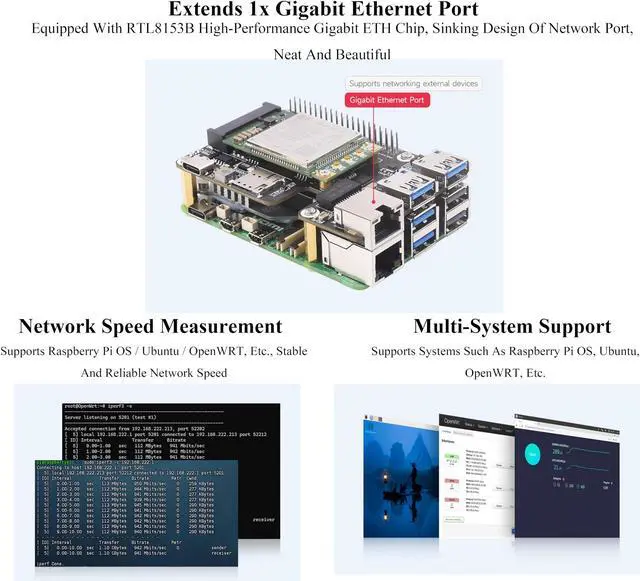

3. Extends 1x Gigabit Ethernet port ---Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port. No driver needed

4. Network Speed Measurement---Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed

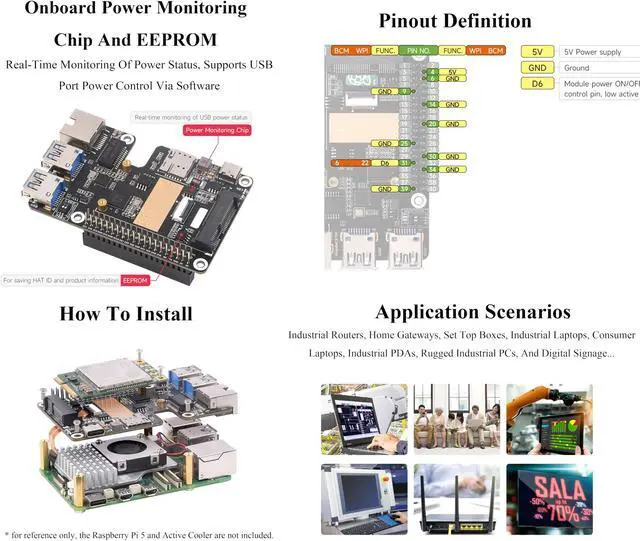

5. Onboard power monitoring chip and EEPROM --- Real-time monitoring of power status, supports USB port power control via software

6. Onboard Type-C interface for 4G networking, debugging, firmware update on PC, or for external power input

7. Support Global band 4G / 3G / 2G
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink);
3G (HSPA+): up to 5.76M bps (uplink) / up to 42Mbps (downlink);
2G (GPRS/EDGE): up to 236.8K bps (uplink) / up to 236.8K bps (downlink)

8. GNSS positioning--- Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

Provide Online Development Resources /User Manual: bit. ly/4cwrOEm

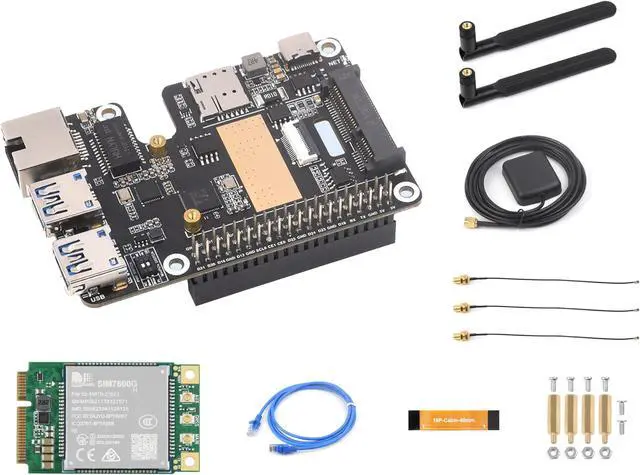

Package Content
PCIe TO MiniPCIe GbE USB 3.2 HAT+ x1
SIM7600G-H-PCIE x1
16P-Cable-40mm cable x1
Network cable ~ 1.5 m x1
Screws pack x1
Antenna 2pcs x1
Passive GPS antenna x1
SMA to IPEX-1 cable 3pcs x1
