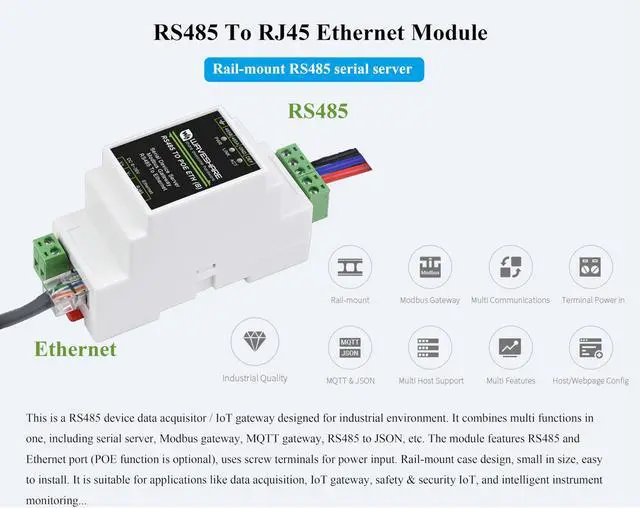

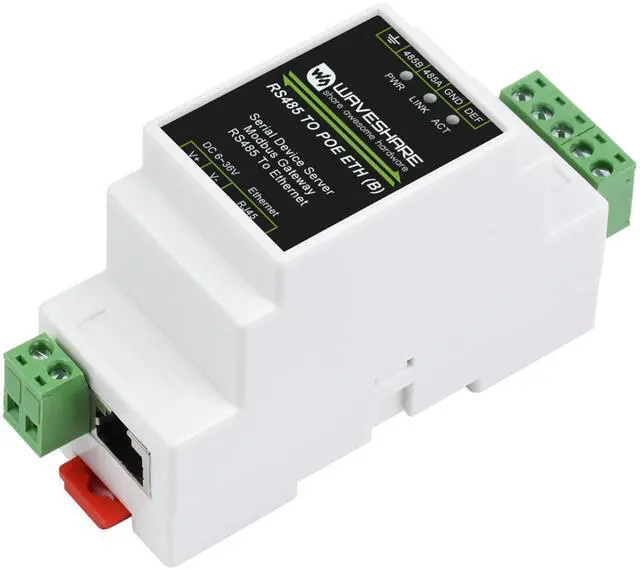

Industrial Isolated RS485 to RJ45 Ethernet Serial Server with PoE Function, TCP/IP to Serial, DC 6~36V or PoE Power Supply,Modbus/MQTT Gateway, RS485 and Ethernet Bi-Directional Data Transmission

RS485 to RJ45 Ethernet Module with PoE Function, PoE Ethernet Port + Electrical Isolation. 6 ~ 36V DC screw terminal, or PoE port power supply.

Features

There are servel Versions of RS485 TO ETH. This is RS485 TO POE ETH (B) Version, 6 ~ 36V DC screw terminal, or PoE port power supply. PoE Ethernet Port + Electrical Isolation.

Bi-directional transparent data transmission between RS485 and Ethernet.

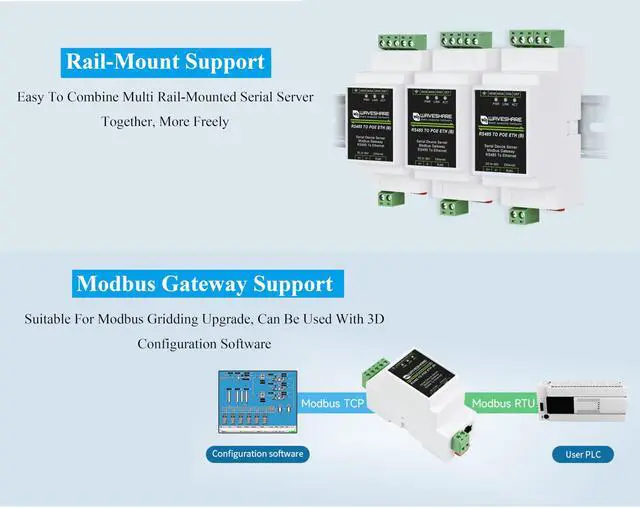

Support Rail-mount---Easy to combine multi rail-mounted serial server together, more freely.
Support Modbus gateway---Suitable for Modbus gridding upgrade, can be used with 3D configuration software.
Multi communication modes---Supports TCP server / TCP client / UDP mode / UDP multicast.
MQTT/JSON to Modbus---More flexible conversion between different protocols.
Multi Hosts Roll-Polling Support---Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices.
NTP Protocol Support---Getting network time info for serial output or data upload.
Multi Configuration Methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.

Comes with Online Development Resources /User Manual, please
follow there: bit. ly/40Vviws

Package Content
RS485 TO POE ETH (B) x1
