ELP 5mp 60degree Fixed Lens USB Camera with OV5640 Sensor for Linux/Android/mac/Windows PC Webcam USB2.0 UVC Vide Camera Module Opencv Raspberry Pi USB with Cameras for Computer, PC, Laptop

Description

Why we choose MJPEG USB Camera?
Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth.
Such as 1megapixel common camera, YUV format only have 10fps, while MJPEG usb camera can up to 30fps.
Most Linux USB port device is USB 2.0, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream.
Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB 2.0 yet.

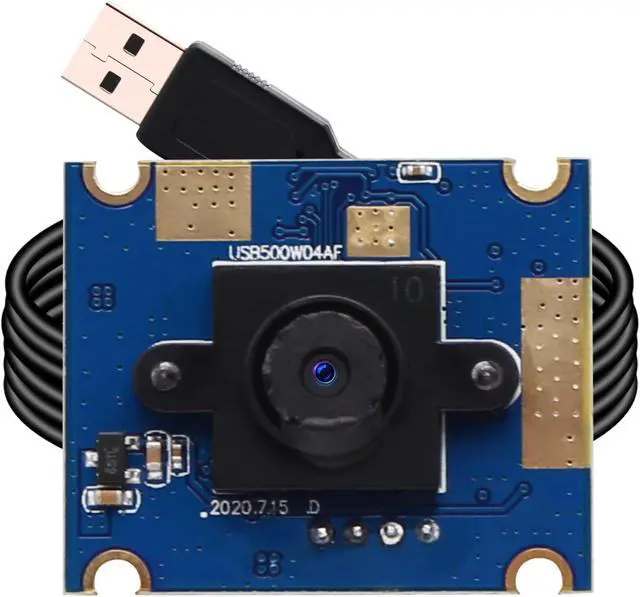

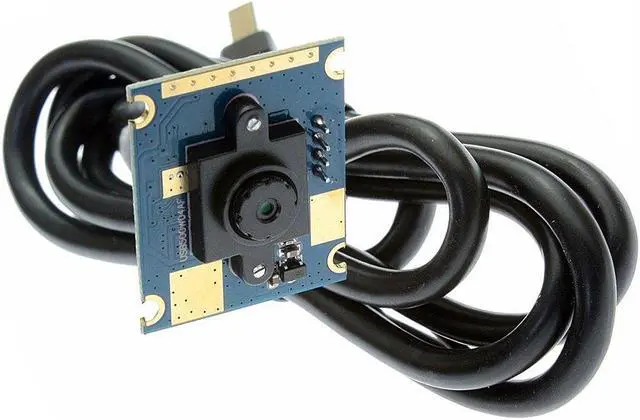

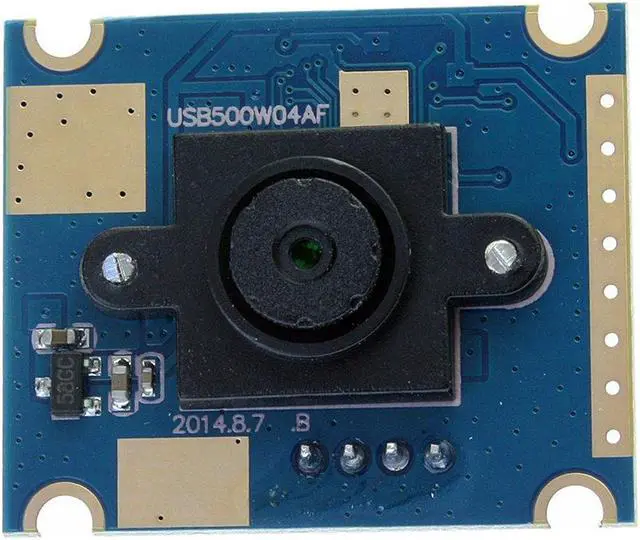

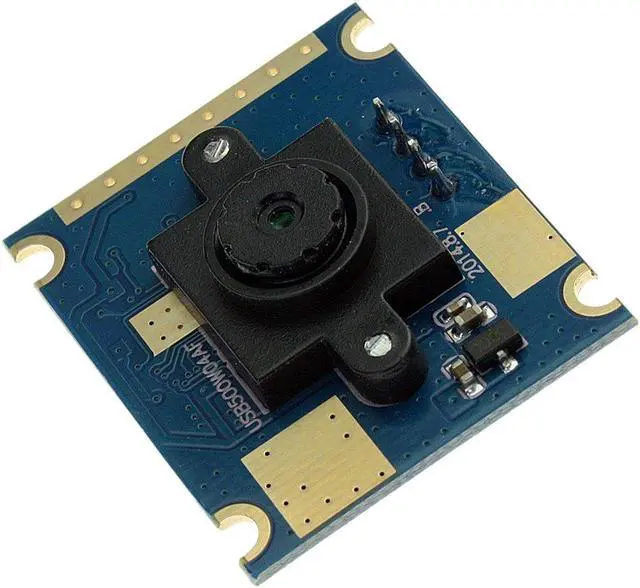

Product Name: ELP-USB500W04AF-L60
Sensor: OV5640 (1/4") Max.
Resolution: 2592 (H) *1944 (V)
Sensitivity: 600mV/Lux-sec
Pixel Size: 1.4 mm x 1.4 mm
Image area: 3673.6 mmx 2738.4 mm
Maximum Image Transfer Rate: 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG
1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG
1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Camera Board Assembly technique: SMT (ROSH)
FocusManual
Resolution: 600LW/PH (Center)
interface: USB 2.0 High Speed
protocol: USB Video Class(UVC
S/N Ratio: 36dB
Dynamic Range: 68dB
Shutter: Rolling shutter/ frame exposure
Package: CSP, Bare Die
AGC/AEC/AWB/ABF: Auto
Output Formats: YUYV/MJPEG
Adjustable parameter: Brightness Contrast Hue Saturation Sharpness Gamma White
Balance Exposure Focus
Package: LQFN-40pin
Lens Parameter Size: 1/4, Iris: F 2.8, Focus: 3.2 mm, FOV: 65Degree
Relative Illumination (Sensor): 70%
IR Filter: 650+-10nm
