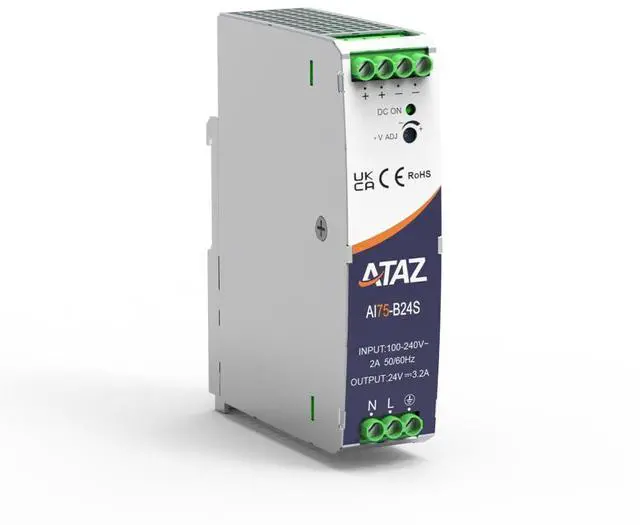

75W Din Rail Power Supply, 3.2A 24V Output, AC/DC Power Supply with DC OK Function

Overview:
The AC/DC 24V DIN Rail Power Supply is a reliable and cost-effective solution for powering a variety of industrial applications. With an output of 24V 3.2A, this device is designed for maximum stability and efficiency. It also offers superior protection with comprehensive protections including PFC, over-voltage protection, over-current protection, and short-circuit protection. The built-in vent design ensures fast heat dissipation and the extended MTBF greatly improves its reliability. The DC OK function allows for input of both AC and DC sources, making it more versatile in various applications and protecting against potential damage caused by voltage fluctuations.

Specification:

1.
Type: AC/DC Power Supply

2.
Input Specification:

3. Rated Input (Certified
Voltage): 100 - 240V AC
4.
AC Input: 90 - 264V AC
5.
DC Input: 120 - 370V DC

6.
Input Voltage Frequency: 47 - 63Hz(Rated AC Input: 50 - 60Hz)

7.
Input Current: 2.0A

8.
Output Specification:

9.
Output Power: 75W

10.
Output Voltage: 24V

11.
Output Current: 3.2A

12.
Output Voltage Adjustable Range ADJ: 24-28V

13. Efficiency at 230V
AC Type: 89%

14.

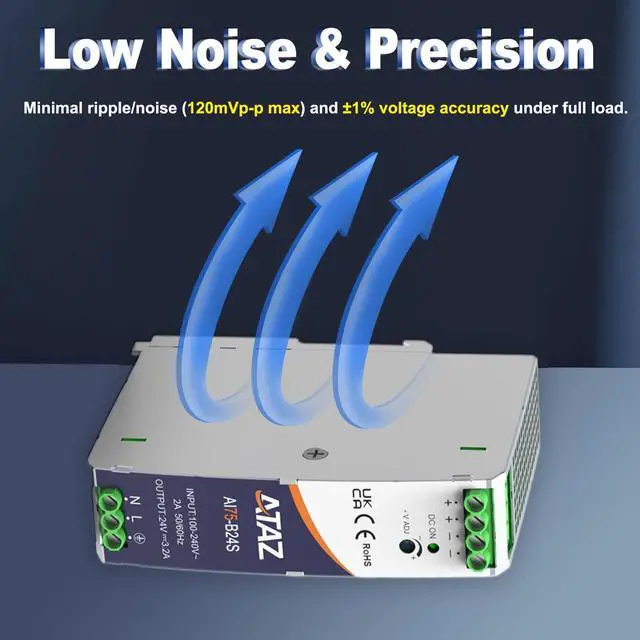

Output Ripple Noise: 75mVp-p(Max 150mVp-p)

15.
Load Regulation Rate: 0%-100% Load
16.
DC OK Signal: Resistive Load 30V DC/1A Max

Key Features:

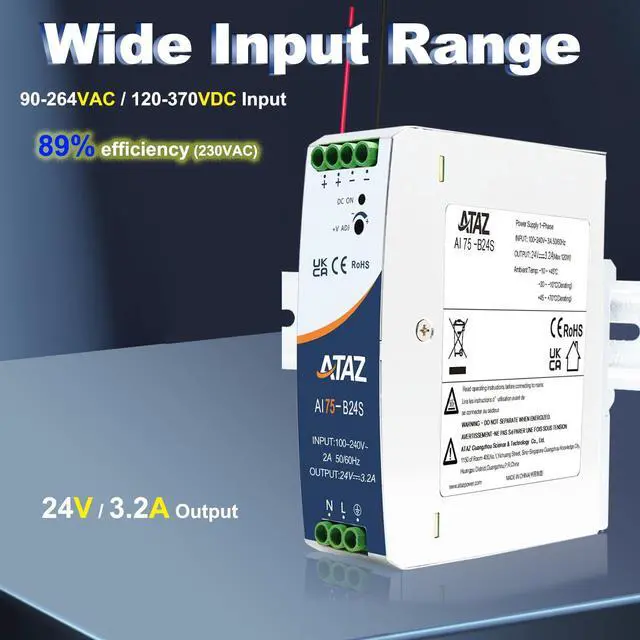

a. Universal 90 - 264V AC or 120- 370V DC lnput voltage
b. Accepts AC or DC input (dual-use of same terminal)
c. 24V 3.2A Output, suitable for powering various industrial devices or equipment
d.

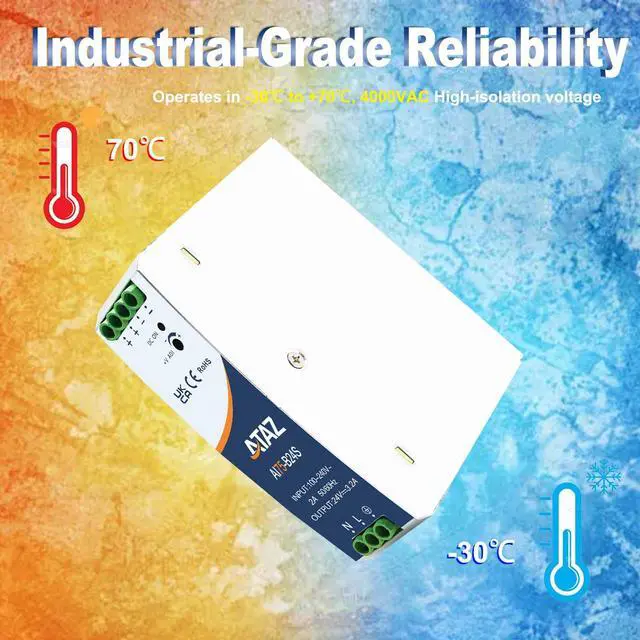

Operating ambient temperature range: -30 to +70
e. Built-in active PFC function reduces energy loss and improves efficiency

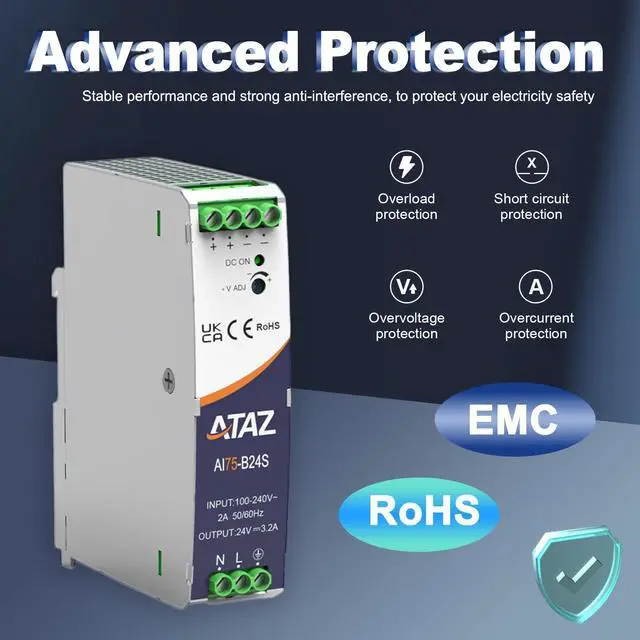

f. Comprehensive Protections including short circuit, over-current, over-voltage, and over-temperature protection
g. 150% peak load output for 3 seconds provides a more stable output
