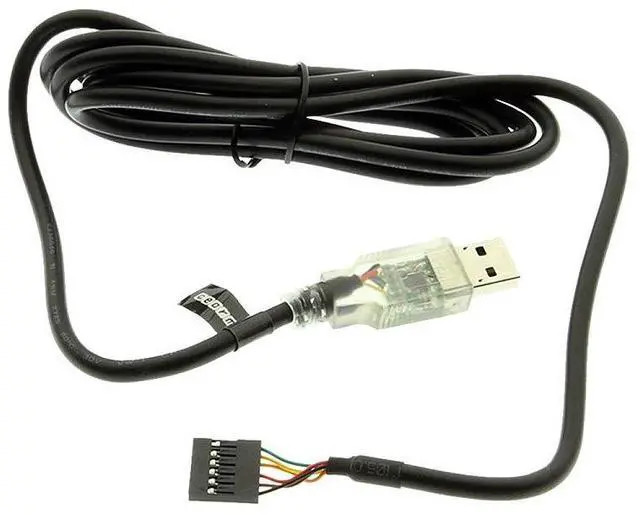

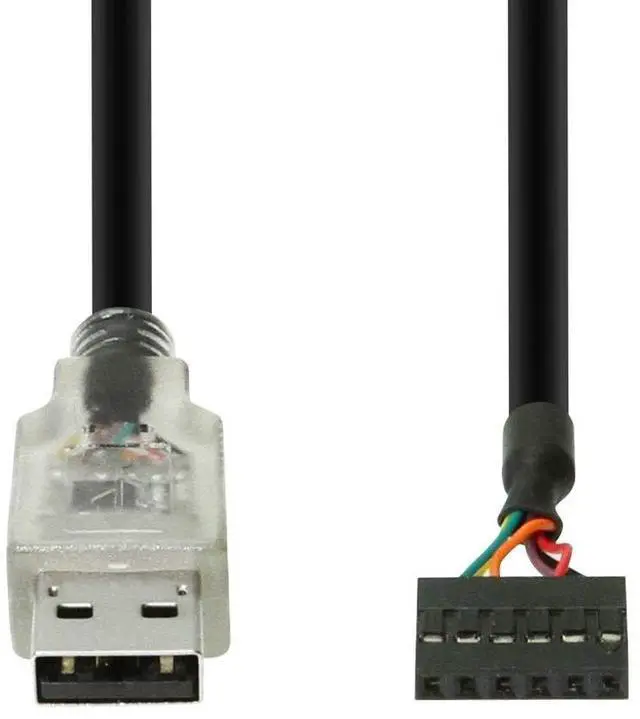

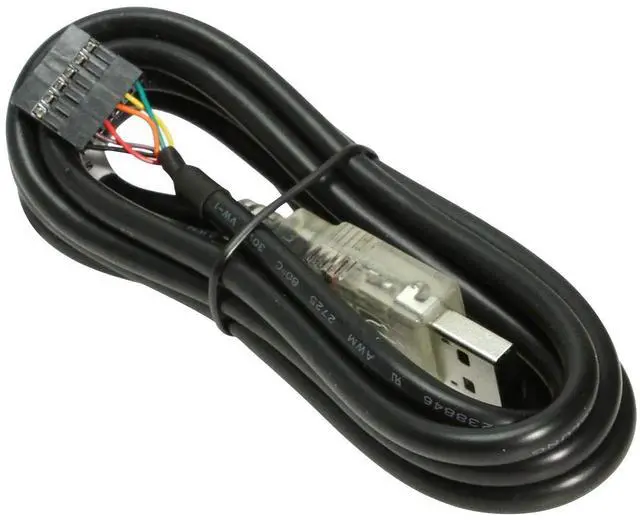

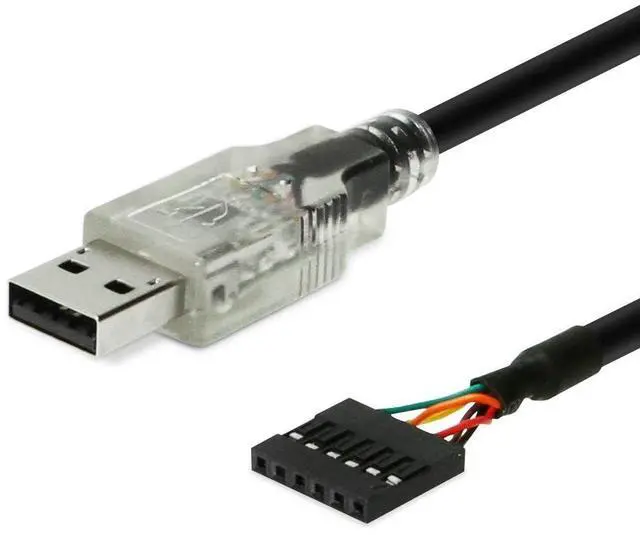

Gearmo USB to 3.3v TTL PIN Header Cable
- Provides a USB to TTL Serial interface to 6-pin header
- +3.3V output allows external logic to be powered from the USB port
- Utilizes newest FTDI FT232QR chip
- Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking
- OS Compatibility: Windows 98, ME, XP, 2000, 2003, CE, Vista, Windows 7, 8, 10, 11 as well as Linux and Mac OS 10.X
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction:
This USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication port. All USB protocol is handled within this adapter. There is no other device or programming required.
The adapter is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. It shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically convert to USB and back to UART to your target board.
Additional Features The Cable provides a USB to TTL Serial interface to 6-pin header. Single board USB to asynchronous serial data transfer interface Entire USB protocol handled by the electronics in the cable USB UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity Data transfer rates from 300 baud to 3 Mbaud at TTL levels. Transmit and receive LEDs UHCI / OHCI / EHCI host controller compatible Low USB bandwidth consumption.

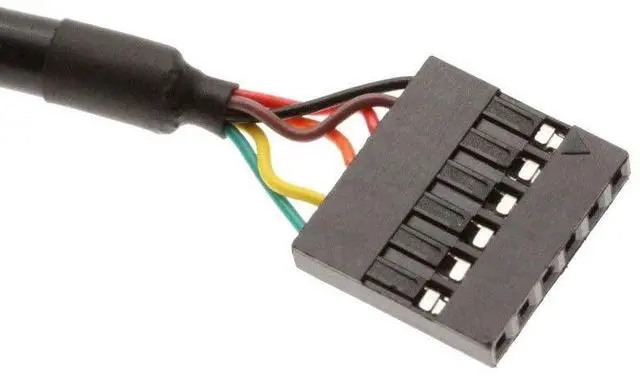

6 Pin Header Pin Assignment Pin 1 GND Pin 2 CTS Pin 3 VCC Pin 4 TXD Pin 5 RXD Pin 6 RTS
OS Support:
Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, 8, 10, and 11
Linux and Mac OS 10. X
Package Contents:
USB to 3.3 v TTL PIN Header Cable
Driver Disc
This USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication port. All USB protocol is handled within this adapter. There is no other device or programming required.
Product Details
:The adapter is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. It shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically convert to USB and back to UART to your target board.
Additional Features The Cable provides a USB to TTL Serial interface to 6-pin header. Single board USB to asynchronous serial data transfer interface Entire USB protocol handled by the electronics in the cable USB UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity Data transfer rates from 300 baud to 3 Mbaud at TTL levels. Transmit and receive LEDs UHCI / OHCI / EHCI host controller compatible Low USB bandwidth consumption.
6 Pin Header Pin Assignment Pin 1 GND Pin 2 CTS Pin 3 VCC Pin 4 TXD Pin 5 RXD Pin 6 RTS
OS Support:
Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, 8, 10, and 11
Linux and Mac OS 10. X
Package Contents:
USB to 3.3 v TTL PIN Header Cable
Driver Disc
