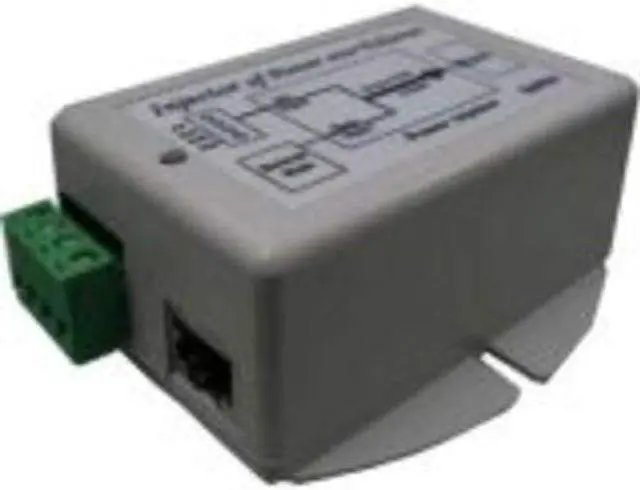

9-36VDC Wire Terminal in, 48V 16.8W Out, DC to DC Converter and 802.3af Mode B Gigabit POE Inserter, Shielded and Surge Protected, Low Voltage Disconnect

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power are a low cost and high efficiency solution for those requiring IEEE 802.3 af Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack.

They work by supplying power on Ethernet pins 4, 5(V+) and 7, 8(V-). They have various protections for surge, short circuit and overload.
