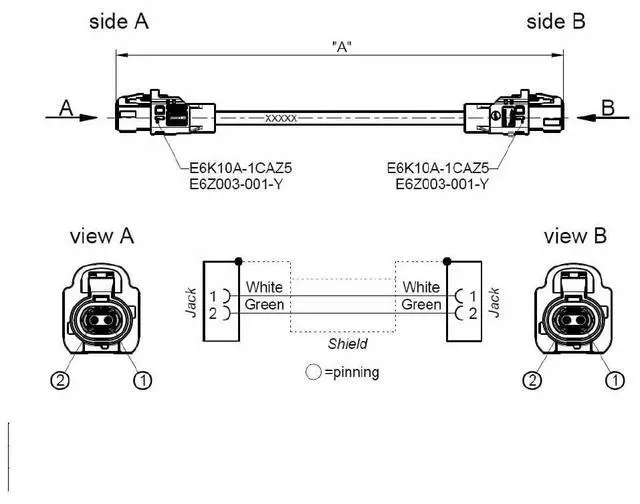

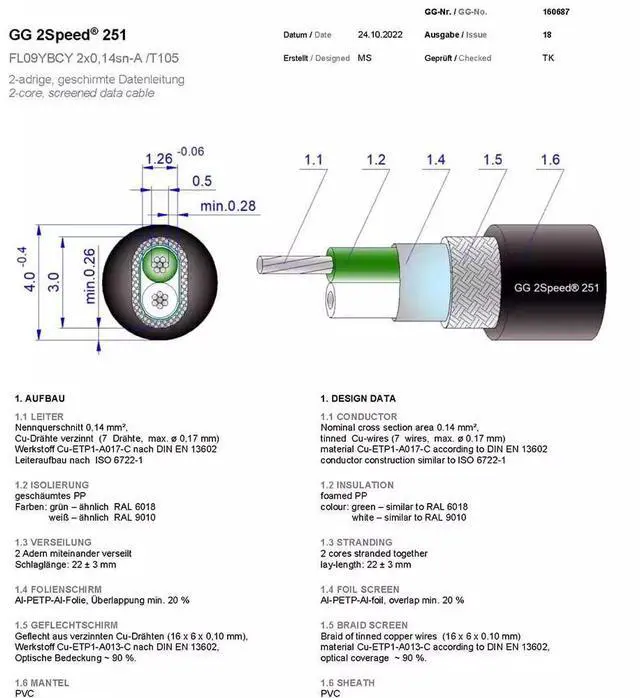

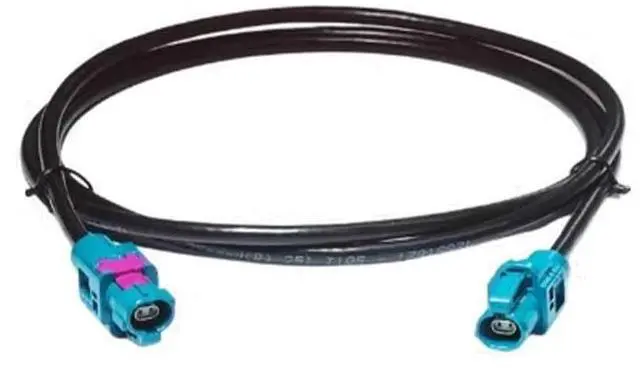

keisnoaja E6K10A-1CAZ5-Z Female to E6K10A-1CAZ5-Z Female H-MTD Ethernet Cable GG2Speed251 (E6K10A-1CAZ5 to E6K10A-1CAZ5, 0.5M)
- Ethernet Cable Specifications: This cable is an Ethernet cable assembly with model number E6K10A-1CAZ5. It is designed for female-to-female connections, suitable for high-performance communication systems
- Impedance and Frequency Range: The cable has an impedance of 100O+-5% at a 500 ps rise time and operates across a broad frequency range, from DC up to 20 GHz, making it ideal for high-speed data transmission.
- Electrical Characteristics: It can withstand a voltage of AC 250 V and supports a maximum working current of 1A DC. The inner conductor's contact resistance is up to 10MO, while the outer conductor's resistance is up to 7.5MO
- Durability and Insertion Cycles: The cable is built for durability, capable of withstanding at least 25 insertion cycles, ensuring reliable connectivity over multiple uses, which is essential in applications
- Environmental Compliance and Temperature Range: The product is RoHS compliant, ensuring adherence to environmental regulations. It
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Electrical Performance
Characteristic Impedance100O+-5% (at 500 ps rise time)
Frequency RangeDC-20 GHz
Withstand VoltageAC 250 V
Working Current1A DC Max
Contact Resistance of Inner Conductor10MO Max
Contact Resistance of Outer Conductor 7.5MO Max
Characteristic Impedance100O+-5% (at 500 ps rise time)
Frequency RangeDC-20 GHz
Withstand VoltageAC 250 V
Working Current1A DC Max
Contact Resistance of Inner Conductor10MO Max
Contact Resistance of Outer Conductor 7.5MO Max
