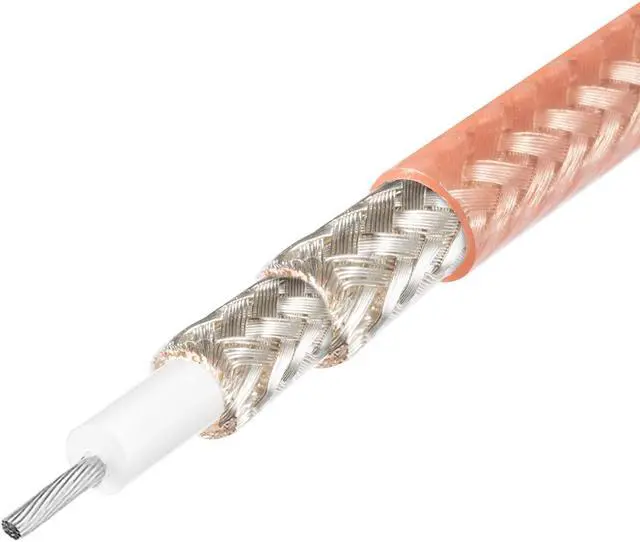

eifagur 40 Feet RG400 M17/128 Double Braid Shielded Coax Coaxial Cable

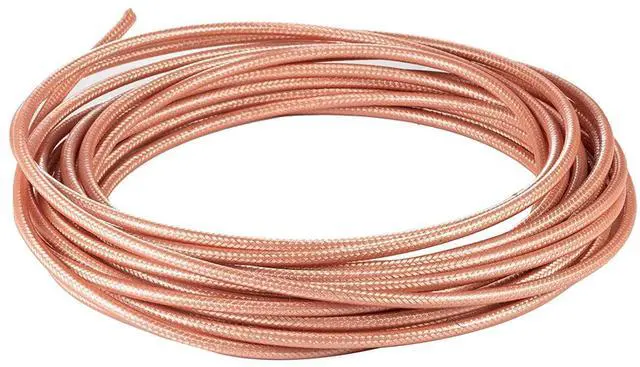

Package includes:1x 40FT/12.2 Meter RF Coax RG400 Cable
Impedance:50 ohm
Low loss,Phase stability
Superior shielding performance
Max. Operating Frequency: 12400MHz

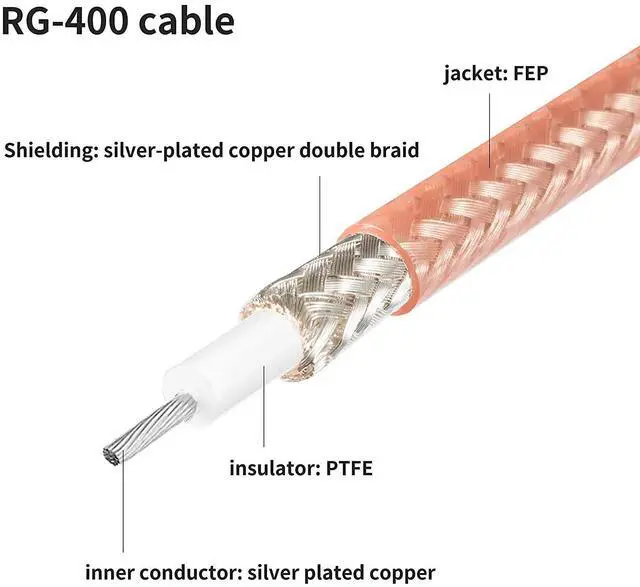

Material--Inner conductor: silver plated copper
Insulator: PTFE
Outer conductor(shielding) : silver plated copper double braid
Jacket (insulation sheath): FEP
Diameter-- Inner conductor: 19*0.203mm
Insulation:2.95mm
Outer conductor( shielding):3.95mm

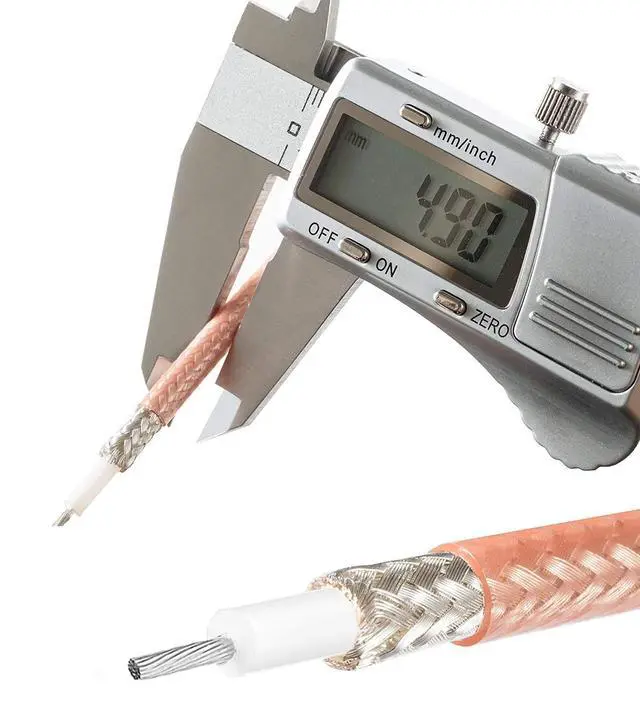

Jacket (insulation sheath): 4.95mm
Warranty:1 year 30 day returns. Our products are strictly tested

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SpecificationNom. Capacitance Conductor to
Shield(pF/m): 105Nom.
Characteristic Impedance: 50ohmNom. Velocity of
Propagation: 70%Min.
Bend Radius (Install): 25mmVoltage
Rating (VMS): 1900Max.
Operating Frequency: 12400MHz

Nom.
Attenuation( dB/m): 0.144 (100MHz)
Nom.
Attenuation( dB/m): 0.295 (400MHz)
Nom.
Attenuation( dB/m): 0.482 (1000MHz)
Nom.
Attenuation( dB/m): 1.184 (5000MHz)
Nom.
Attenuation( dB/m): 1.899 (11000MHz)
