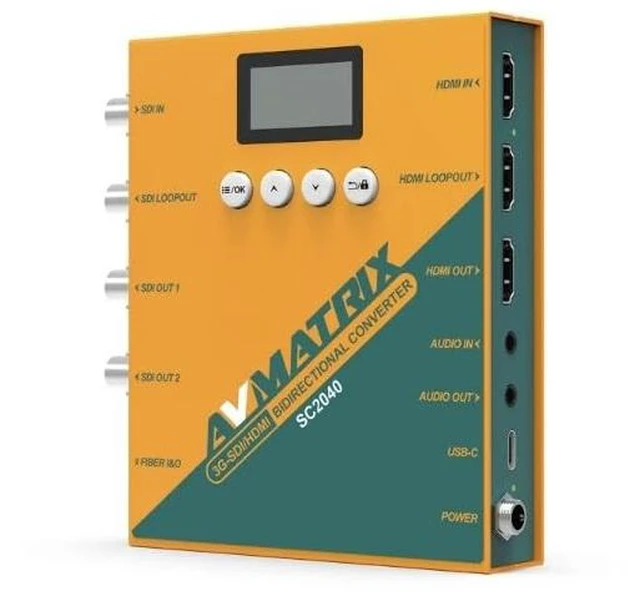

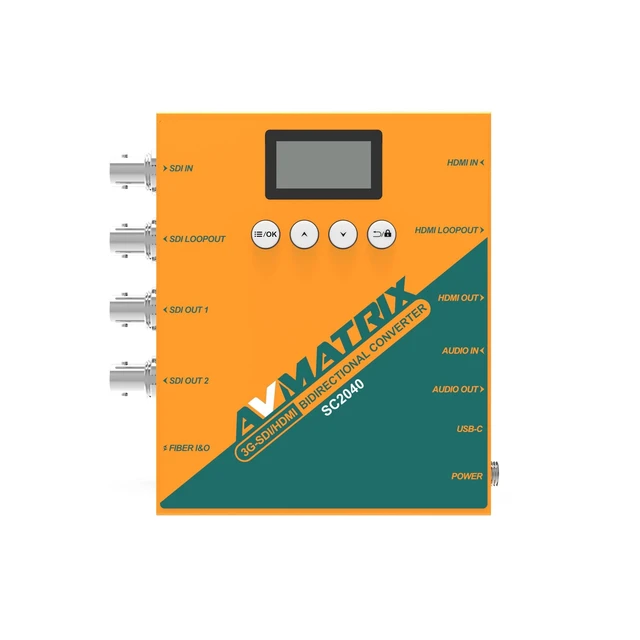

AVMATRIX SC2040 3G-SDI/HDMI Bidirectional Converter, 1080p60 Cross Converter with Scaler, Frame Rate Conversion, Audio Embed/De-embed, Test Pattern Generator, SFP Fiber Transmission up to 20KM

AVMATRIX SC2040 3G-SDI/HDMI Bidirectional Converter, 1080p60 Cross Converter with Scaler, Frame Rate Conversion, Audio Embed/De-embed, Test Pattern Generator, Optional SFP Fiber Transmission up to 20KM Key Product Features 3G-SDI/HDMI Bidirectional Conversion Professional cross converter for converting between HDMI and 3G-SDI signals. Supports HDMI input, SDI input, HDMI loop-out, HDMI output, SDI loop-out, dual SDI outputs, and optional SFP fiber I/O. Built-in Scaling & Frame Rate Conversion Supports up/down scaling and frame rate conversion up to 1080p60, making it easy to match signals for monitors, switchers, recorders, and broadcast workflows.

Multiple Operation Modes Supports 24 flexible processing modes for routing and converting signals between HDMI, SDI, and optional SFP fiber inputs and outputs. Optional SFP Fiber Transmission up to 20KM With an optional 3G video SFP module, the SC2040 supports long-distance SDI/HDMI fiber transmission up to 20 km for professional AV and broadcast installations. Audio Embedding & De-embedding Includes 3.5 mm analog audio input and output for embedding audio into HDMI/SDI signals or de-embedding audio for monitoring and external audio equipment. Built-in Test Pattern & Audio Tone Generator Includes 23 professional test patterns, including color bars, grayscale, ramps, and check field patterns, plus audio tone options for system setup, troubleshooting, and calibration.

Image Flip Control Supports horizontal flip, vertical flip, and horizontal/vertical flip for both HDMI and SDI outputs, ideal for projection, monitoring, and special installation setups. Front Panel Display & USB-C Control Built-in LCD screen and front-panel buttons provide quick control. USB-C supports PC software control, firmware upgrade, and 5V USB power. Product Description The AVMATRIX SC2040 is a compact all-in-one 3G-SDI/HDMI bidirectional converter designed for professional AV, live production, broadcast, education, houses of worship, healthcare, and studio workflows. This versatile unit combines a video converter, signal splitter, fiber extender, scaler, frame rate converter, audio embedder/de-embedder, and test pattern generator in one compact device.

It supports HDMI, 3G-SDI, and optional SFP fiber input/output, allowing flexible conversion and routing between different video systems. The SC2040 supports resolutions up to 1080p60 and offers high-quality up/down scaling, frame rate conversion, 3G-SDI Level A/B support, multiple HDMI color space options, and selectable audio channel routing. The built-in test pattern generator helps verify signal integrity, resolution, frame rate, color accuracy, and audio routing without extra test equipment. For long-distance applications, the optional SFP module enables bidirectional fiber transmission up to 20 km. The dual power design supports both 12V DC and USB-C 5V power, making the SC2040 a reliable and flexible tool for field production, broadcast engineering, AV integration, and live event setups.

Specifications

Model: SC2040
Product Type: 3G-SDI/HDMI Bidirectional Converter
Video Input: HDMI x1, 3G-SDI/Fiber x1 selectable
Video Output: HDMI Loop x1, HDMI x1, SDI Loop x1, SDI x2, Fiber x1
USB: USB Type-C for upgrade, power, and control
Power Input: DC 12V 2A; USB-C 5V
Resolution Support: Up to 1080p60; supports 1080p, 1080i, 720p, 576p, 480p, NTSC, PAL
Audio Input: 3.5 mm analog audio x1
Audio Output: 3.5 mm analog audio x1
SFP Module: Optional 3G video SFP, MSA type Wide
Voltage Range: DC 924V
Power Consumption: 7W
Dimensions: 104 x 125.5 x 24.5 mm
Net Weight: 517 g
Gross Weight: 826 g
Operating Temperature: -20C to 60C
Storage Temperature: -30C to 70C
Warranty: 3 years Whats Included AVMATRIX SC2040 Converter 12V 2A Power Adapter User Documentation SFP Module Mounting Bracket USB-A to USB-C Cable
