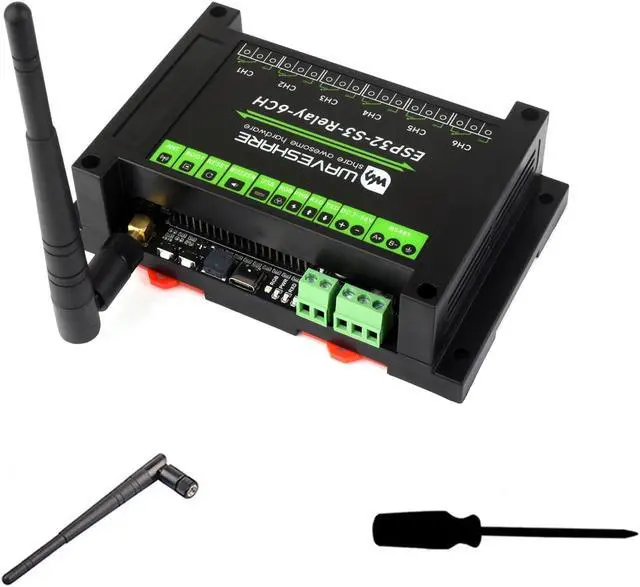

Industrial ESP32-S3 6-Channel WiFi Relay Module, Supports W-iF-i/Blue-Too-th / RS485 Remote Control/Pico HAT, Built-in Power Isolation and Optocoupler Isolation Protection, with Rail-Mount Case
- Industrial 6-Ch ESP32-S3 WiFi Relay Module, Based on ESP32-S3, Designed for AIoT market--Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism
- Integrated 2.4GHz W-i-F-i and Blue-too-th LE dual-mode wire-less communication, with superior RF performance. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

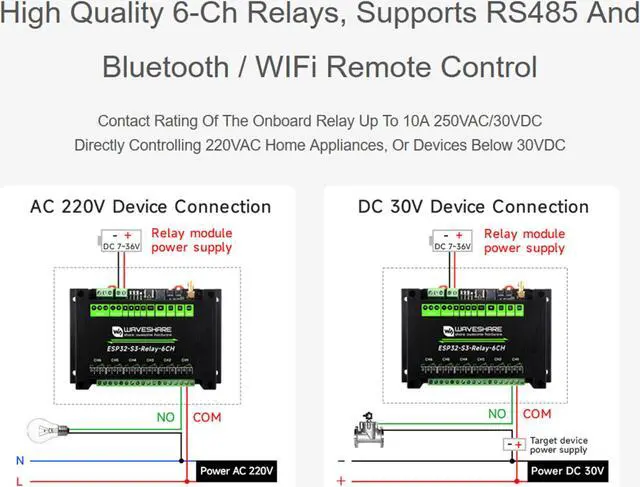

- High quality 6-Ch relays, supports RS485 and Bluetooth / WIFi remote control-- Contact rating of the onboard relay up to 10A 250VAC/30VDC. Directly controlling 220VAC home appliances, or devices below 30VDC
- Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc. Onboard USB Type-C port for power supply, firmware downloading and d
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

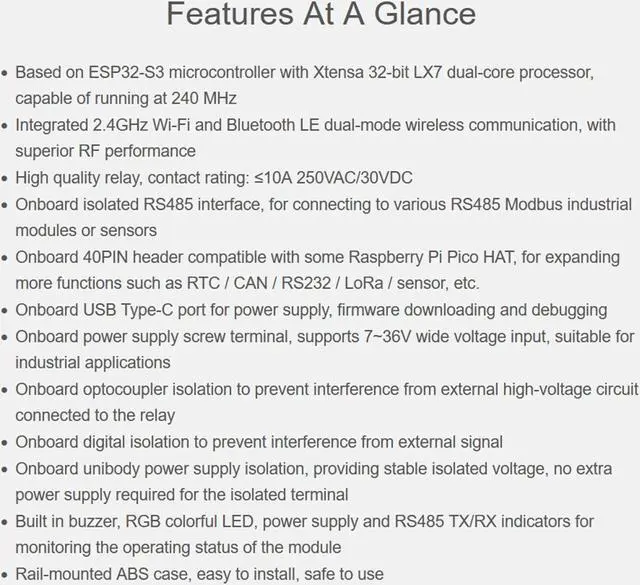

Waveshare 6-Ch ESP32-S3 W-i-F-i Relay Module Features
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

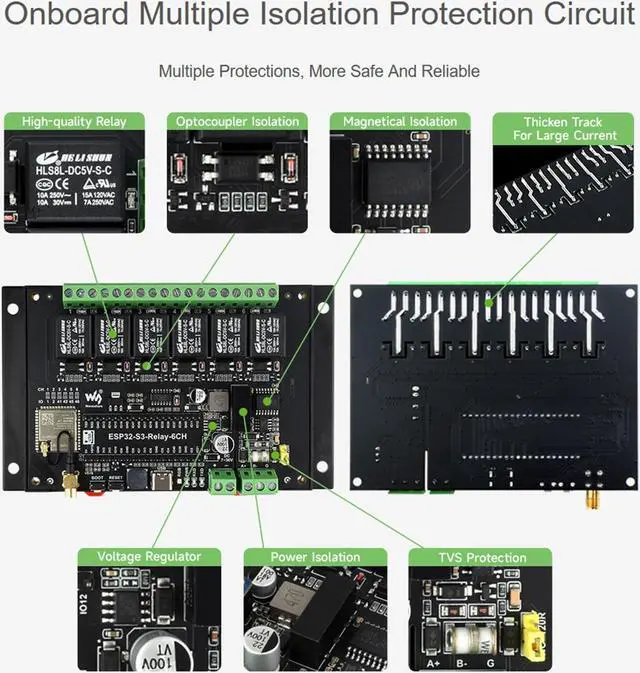

Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
USB
Connector--USB Type-C
Power supply--5V
Functions--Power supply, USB communication, firmware downloading, etc.
ISOLATED RS485
Connector--Screw terminal
Direction control--Hardware automatic control
Protection--TVS diode, surge protection & ESD protection
Resistor-- Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Relay
Contact rating: <=10A 250VAC/30VDC
Relay channels--6
Contact form--1NO 1NC
Isolation --Optocoupler isolation
LED indicators
RGB--RGB colorful LED, supports programmable control for display color
PWR--Red power indicator, lights up when there is USB connection and voltage is detected
TXD --Green TX indicator, lights up when the RS485 port sends data
RXD --Blue RX indicator, lights up when the device port sends data back
power supply Screw terminal: Voltage range 7~36V
Appearance Enclosure: Rail-mount ABS protective case
Dimensions: 145 x 90 x 30mm
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Specifications
USB
Connector--USB Type-C
Power supply--5V
Functions--Power supply, USB communication, firmware downloading, etc.
ISOLATED RS485
Connector--Screw terminal
Direction control--Hardware automatic control
Protection--TVS diode, surge protection & ESD protection
Resistor-- Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Relay
Contact rating: <=10A 250VAC/30VDC
Relay channels--6
Contact form--1NO 1NC
Isolation --Optocoupler isolation
LED indicators
RGB--RGB colorful LED, supports programmable control for display color
PWR--Red power indicator, lights up when there is USB connection and voltage is detected
TXD --Green TX indicator, lights up when the RS485 port sends data
RXD --Blue RX indicator, lights up when the device port sends data back
power supply Screw terminal: Voltage range 7~36V
Appearance Enclosure: Rail-mount ABS protective case
Dimensions: 145 x 90 x 30mm
