HDMI to AHD Converter, 4K/60Hz HDMI in AHD Out Converter, Support Dual Port Output for HD CCTV Outdoor Home Security Camera System

Note:

1. Only works one direction, can not be reversed used as AHD to HDMI.

2. Maximum input resolution up to 4k/60Hz, but the AHD output resolution only up to 1080P@60Hz.

3. Support HDMI 2.0 4K/60Hz input, but only decode HDCP 1.4 & 1.3, does not decode HDCP 2.2.

HDMI to AHD Converter--Audio Embedder & Auto Format Detection

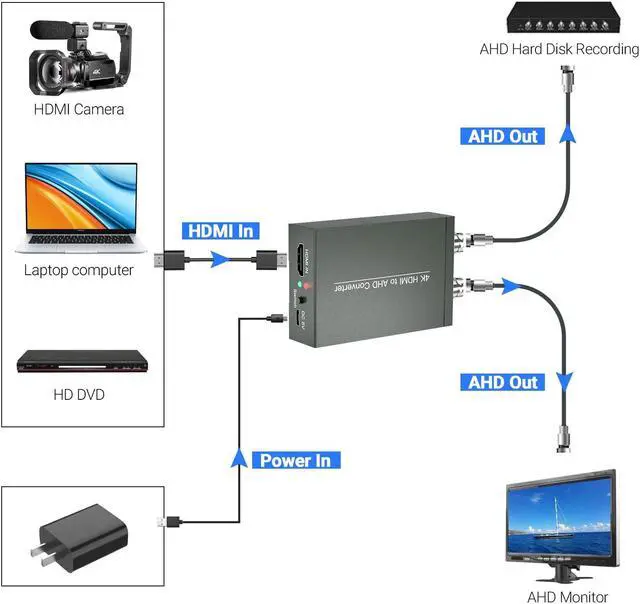

This HDMI to AHD Converter converts HDMI signal into AHD signals. With 2 ports output, it allows you to display HDMI signal on 2 AHD displays simultaneously.

Specifications

:

1.
Input Port: HDMI

2.
Output Port: 2 x AHD (BNC male connectors)
3.
HDMI Input Resolutions: 480i@60Hz, 576i@50Hz, 480P@60Hz, 576P@60Hz, 720P@50/60Hz, 1080p@24/25/30/50/60Hz, 800 x 600P@60Hz, 1024 x 768P@60Hz 1280 x 800P@60Hz, 1280 x 960P@60Hz, 1280 x 1024@60Hz, 1440 x 900P@60Hz, 1600 x 1200P@60Hz, 1680 x 1050P@60Hz 3840 x 2160@24/25/30/50/60Hz, 4096 x 2160@24/25/30/50/60Hz
4.
AHD Output Resolutions: 720P@50/60Hz, 1080P@24/25/30Hz, 1080P@50/60Hz

5.

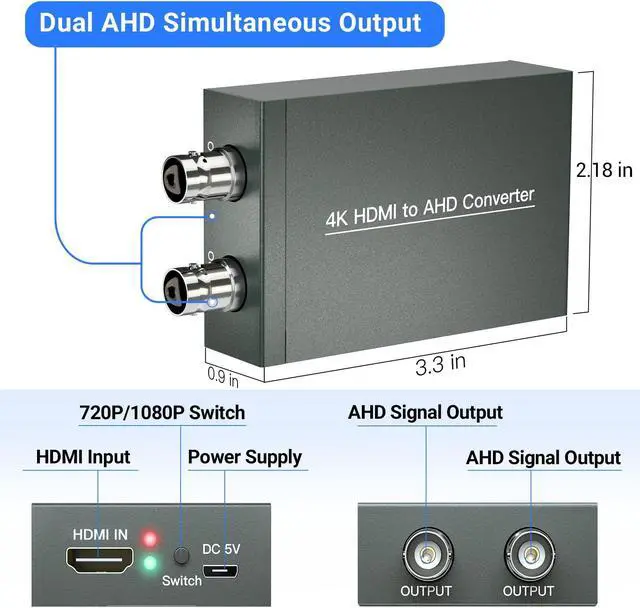

Dimension: 3.3 x 2.2 x 0.9 inces/ 83 x 55 x 24mm

6.
Weight: 165g

Features:

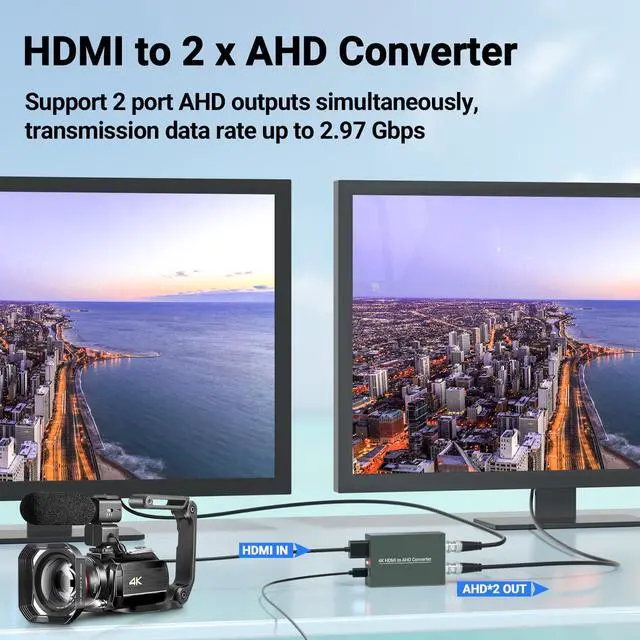

1. Supports 2 ports AHD output simultaneously

2. Embedded audio and image synchronization output

3. Supports HDMI 2.0, 4k/60Hz input

4. Built-in ESD protection circuitry can effectively prevent electrostatic damage

Packing List:
1 x HDMI to AHD Converter
1 x Power Adapter
1 x User Manual
